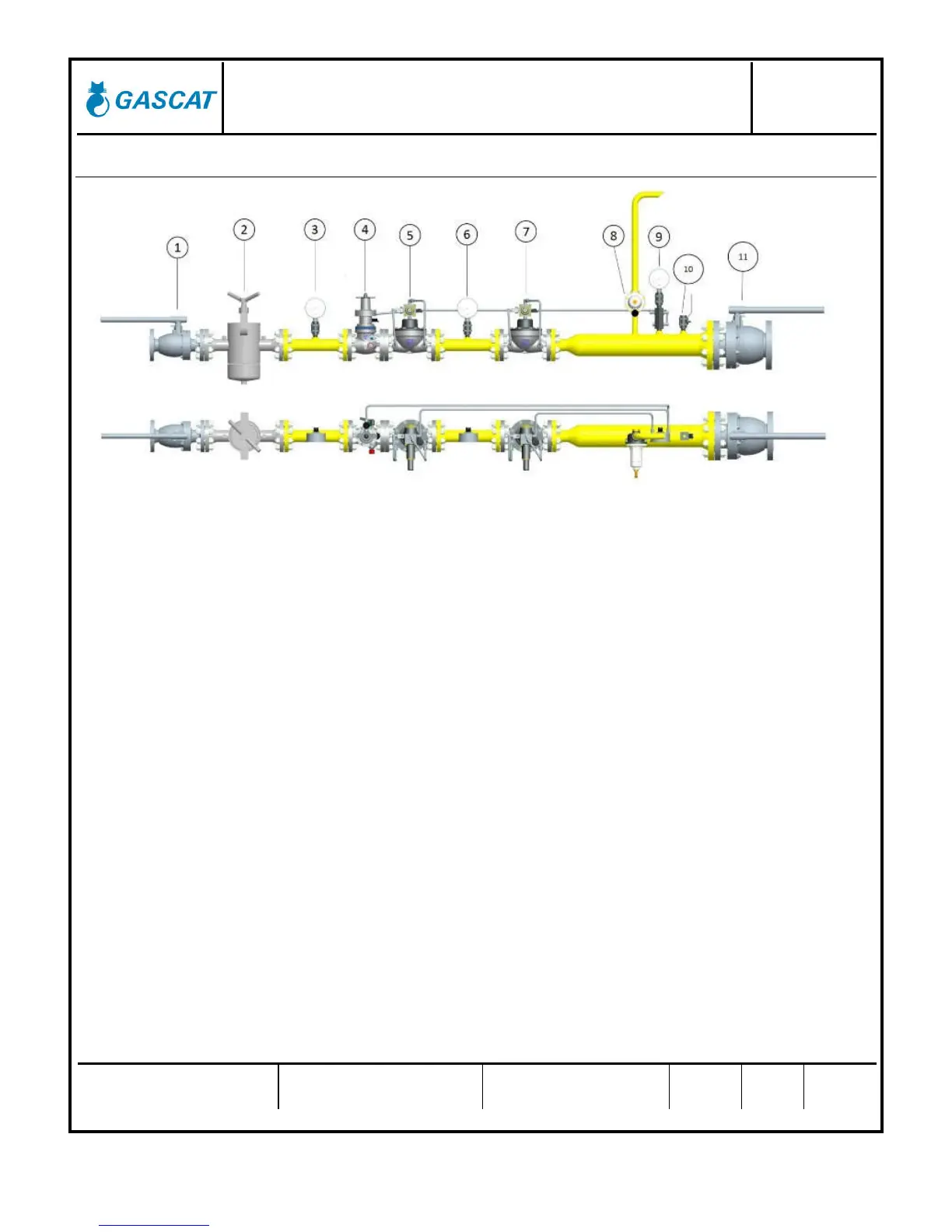

4.5.2 ACTIVE / MONITOR SYSTEM
1 – Inlet ball valve (or similar)
2 – Metrius cartridge Filter – 5 micron
3 – Inlet pressure gauge
4 – Slam shut valve with fail close actuator model GIPS-FC
5 – Monitor pressure regulator Argos
6 – Pressure gauge
7 – Active pressure regulator Argos
8 – Partial pressure relief valve model CH Relief
9 – Outlet pressure gauge
10 – Vent valve
11 – Outlet ball valve (or similar)
Notes:
1) The position of sensing line can be inferior than 5 times if the project of installation had been analised and
approved by GASCAT engineering.
2) Other option of insllation is the utilization of a pipe in parallel to connect all sensing lines close of respective
equipment. Some advantages of this configuration are:
a. More practicity during maintenance.
b. Pneumatic signal with better quality (stable).
c. Reduction of damages in the tubings during maintenance and transport.
