Gascat ARGOS - Pressure Regulators Dimensions

Installation and Operation Manual
Argos - Pressure Regulating Valve
MI-23
Elaborado Verificado / Aprovado CSQ Data Revisão Página
JJ VBL JM 13/02/19 07 8 de 32

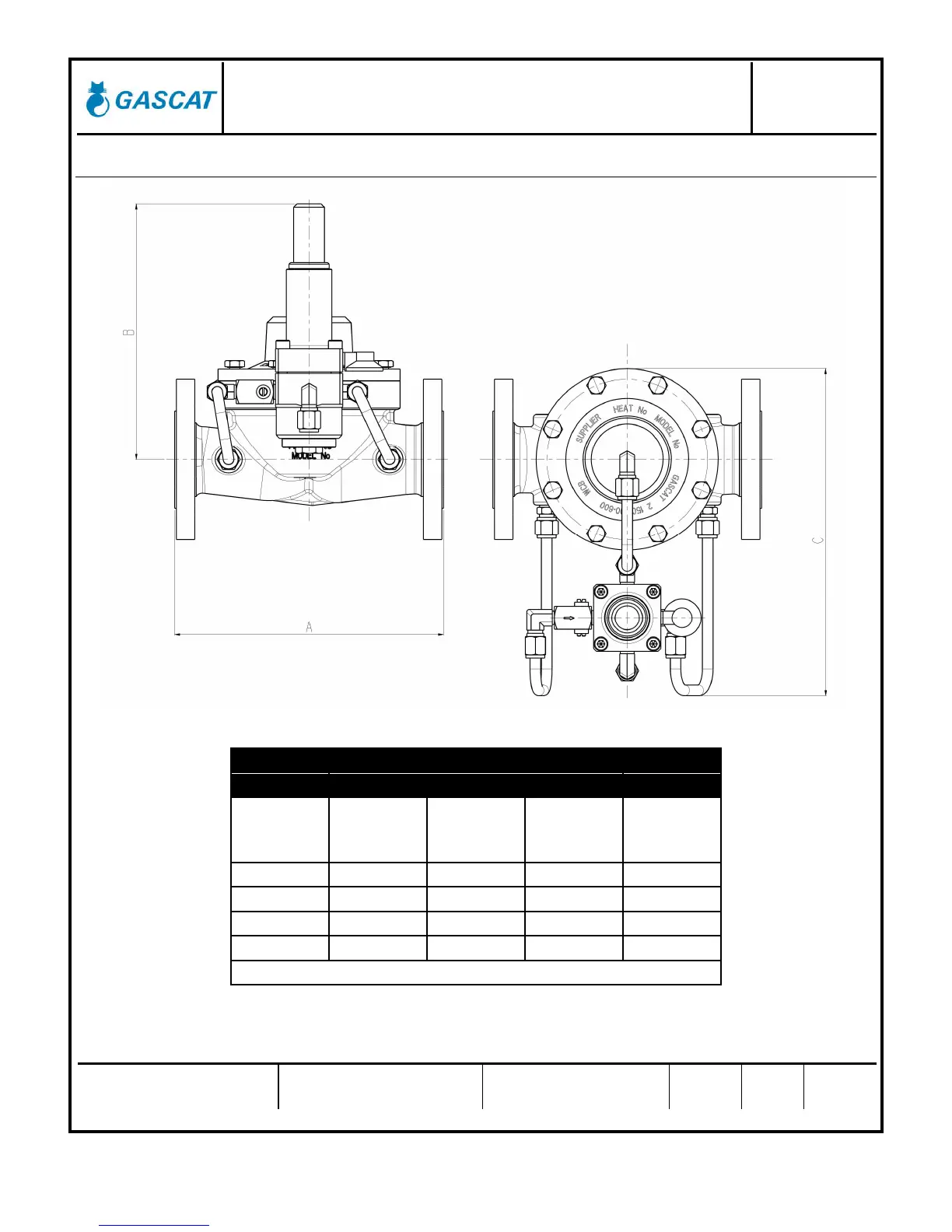

2.3.11 PRESSURE REGULATOR DIMENSIONS
DIMENSIONS (mm)
A (RF) B C
ND
150# /
PN16
300# /
PN25,
PN40
ANY
CLASS
ANY
CLASS
1” 184 197 222 230
2” 254 267 243 288
3” 298 317 318 340
4” 353 368 340 390
General Tolerance = ±2
