Gascat ARGOS - Page 9

Installation and Operation Manual
Argos - Pressure Regulating Valve
MI-23
Elaborado Verificado / Aprovado CSQ Data Revisão Página
JJ VBL JM 13/02/19 07 9 de 32

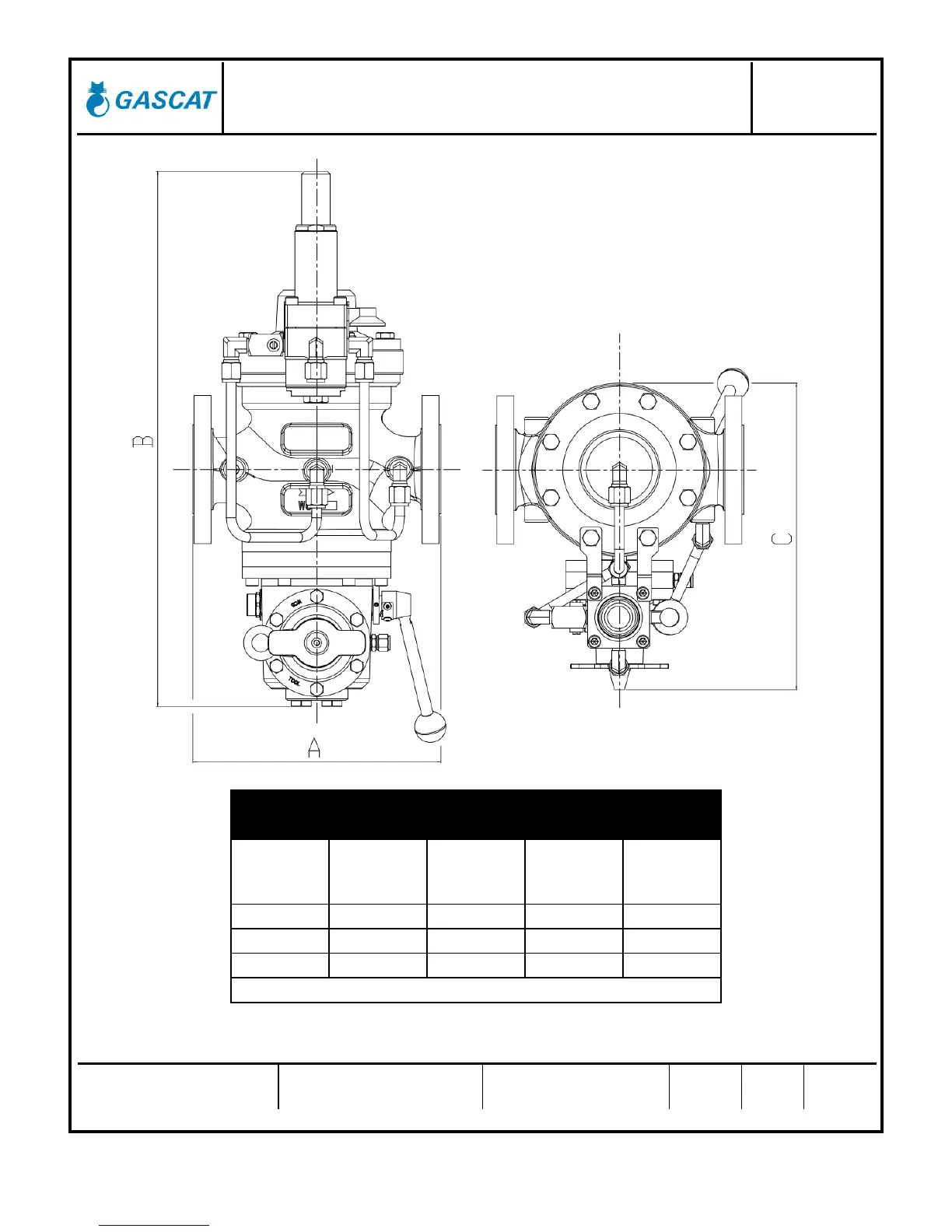

DIMENSIONS (mm)
A (RF) B C
ND
150# /
PN16
300# /
PN25,
PN40
ANY
CLASS
ANY
CLASS
2” 254 267 550 300
3” 298 317 620 331
4” 353 368 703 410
General Tolerance = ±2
