USE AND MAINTENANCE
ENGLISH
g
29
cod. G19503211

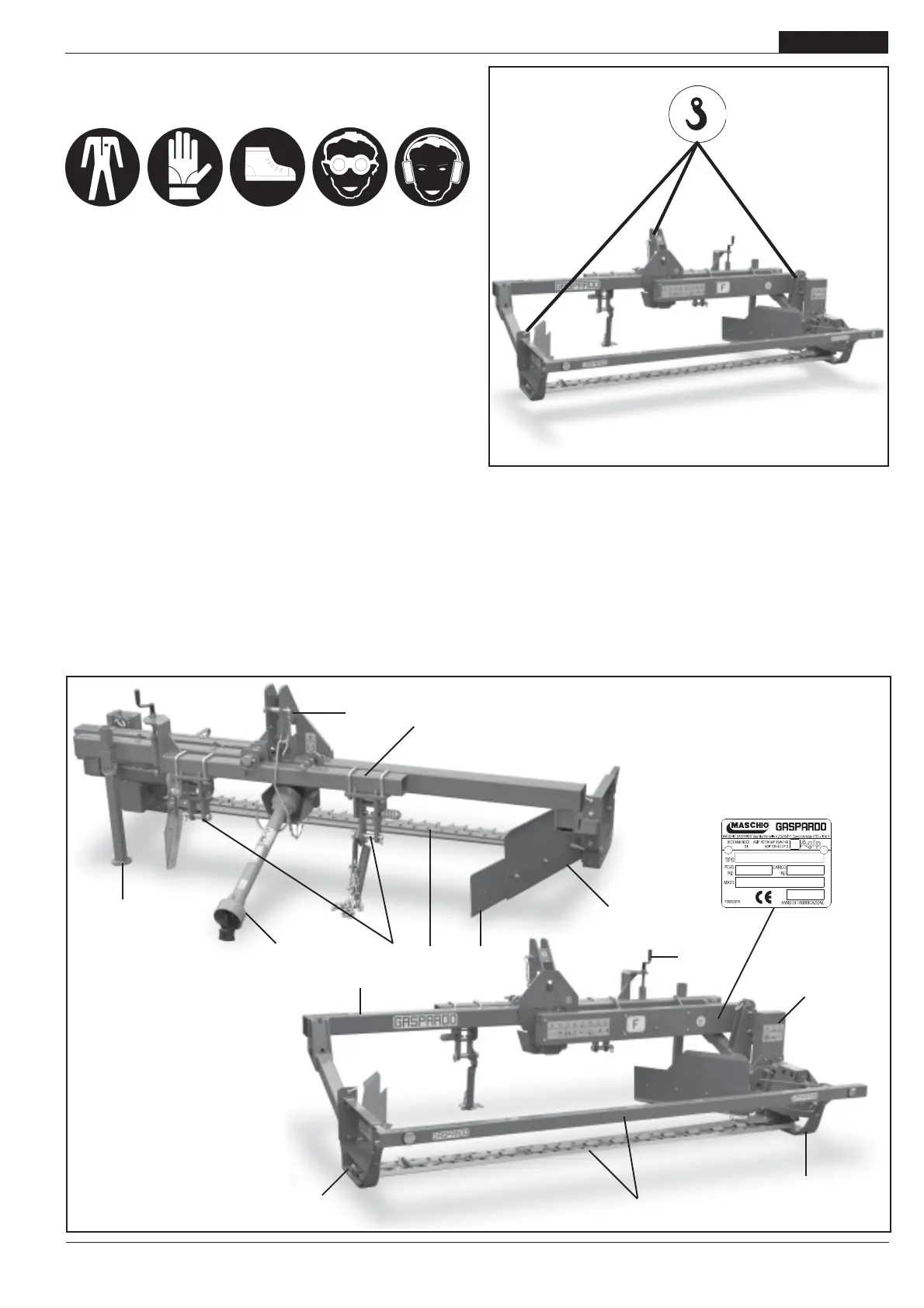

1.5 HANDLING
During handling operations, use suitable personal protection
gear:
Overalls Gloves Shoes Goggles Ear defenders
If the machine is handled, it must be lifted by hooking (Fig. 2)
onto the appropriate holes with a suitable winch or crane of
sufficient capacity. Because of the danger involved, this operation
should be carried out by trained and responsible personnel. The
mass of the machine is on the identification Plate (Fig. 1).
Stretch the rope to keep the machine level.
The hook points can be detected by finding the «hook» symbol
(Fig. 2).
During handling operations make sure the implement has the
required safety devices and guards.
1.6 ASSEMBLY DRAWING
1) External shoe;
2) Mowing guide;
3) Additional mowing guide (optional);
4) Cutting arm;
5) Protections;
6) Upper 3rd point hitches;
7) Lower 3rd point hitches;
8) Cover;
9) Chassis;
10) Support;
11) Oscillating system (optional);
12) Adjustment oscillating system;
13) Cardan shaft;
14) Identification plate.
Fig. 2
Fig. 3
1
1
2
3
4
5
6
7
10
8
9
11
12
13
14
