Mowing

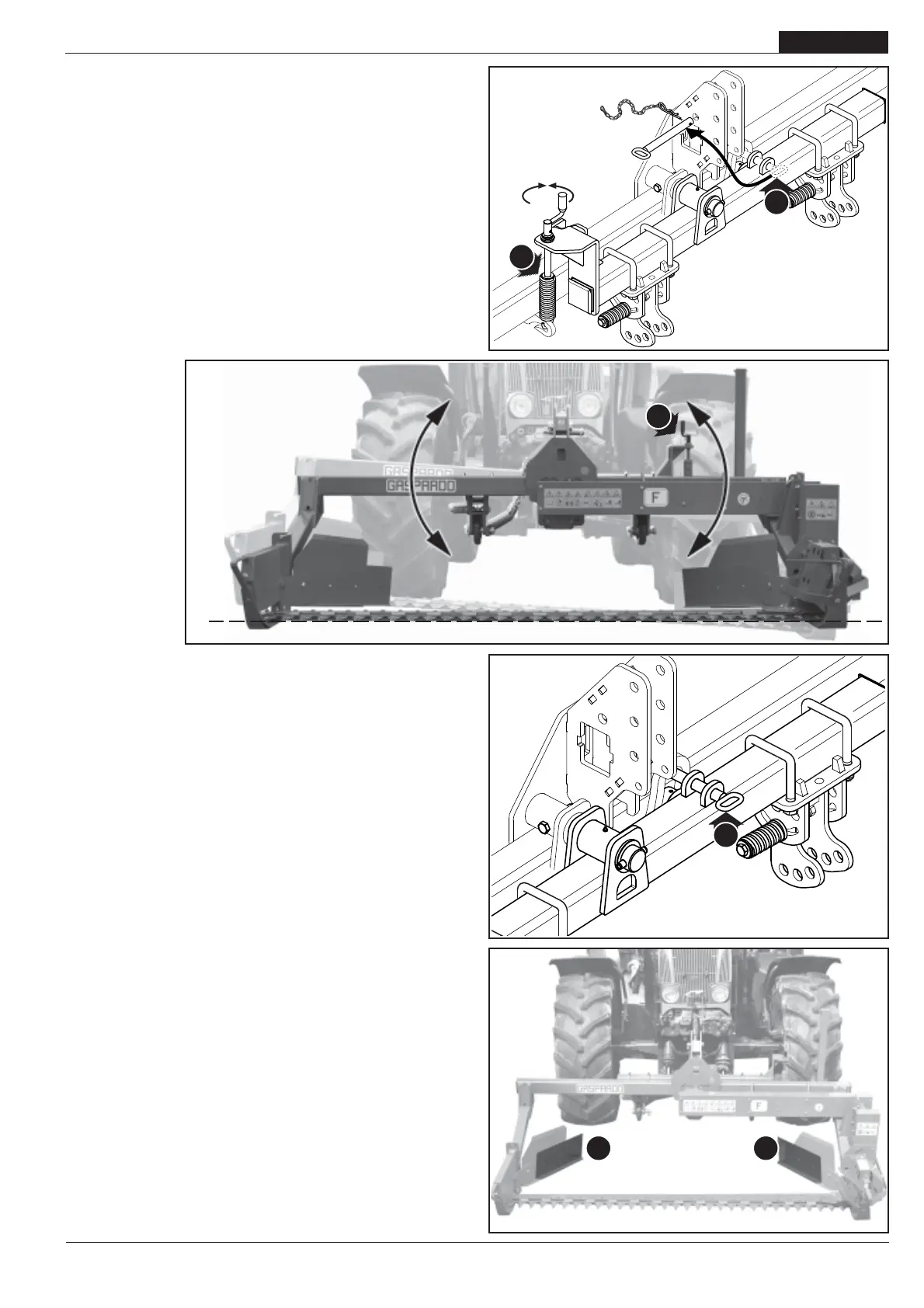

1) Remove the lockpin (E, Fig. 31) to release the oscillating
system.
2) Adjust the tensioning of the spring so that (F, Fig. 31-32),
when the mower is lifted, it does not sideslip at the left due to
the weight of the drive unit.
WARNING: while the machinery is being transported by road, use
the lockpin (E, Fig. 33) to block the oscillating system in a
horizontal position, securing it by means of appropriate safety
devices (pins, split-pins, etc.).
Fig. 32
F
Fig. 34
G G
3.8 EXTENSIONS FOR WINDROWERS WITH SIDE
PLATES (optional)
Upon request, additional extensions can be supplied to reduce
the width of the windrows (G, Fig. 34).
Fig. 33
Fig. 31
E
F
E
