Gaspardo FBR Plus - 1.5 Handling; 1.6 Assembly drawing

USE AND MAINTENANCE
ENGLISH
27

cod. G19503010
Fig. 5
1.5 HANDLING
During handling operations, use suitable personal protection
gear:
Overalls Gloves Shoes Goggles Ear defenders

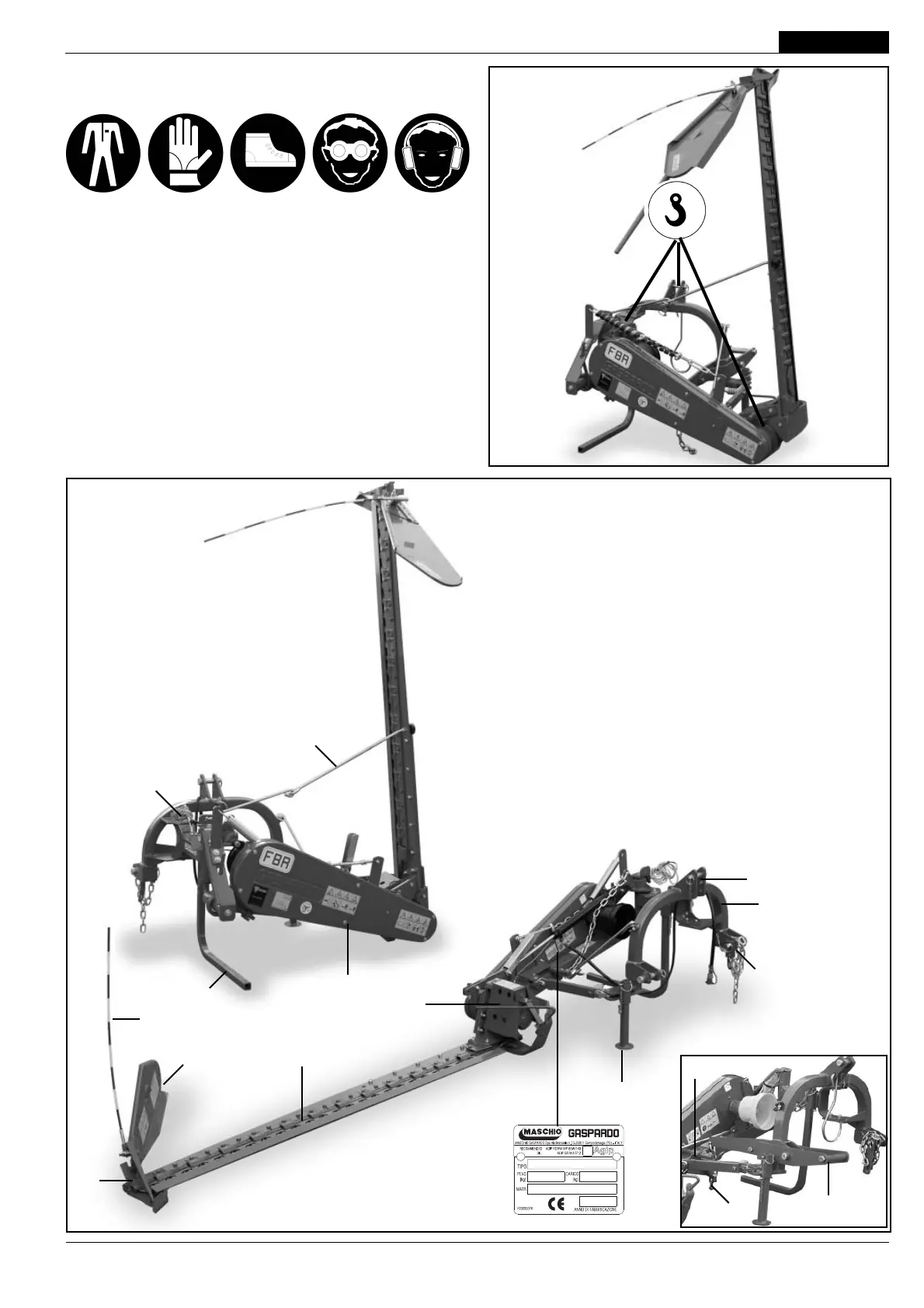

If the machine is handled, it must be lifted by hooking (Fig. 5) onto
the appropriate holes with a suitable winch or crane of suffi cient
capacity. Because of the danger involved, this operation should
be carried out by trained and responsible personnel. The mass of
the machine is on the identifi cation Plate (11, Fig. 6).
Stretch the rope to keep the machine level.
The hook points can be detected by fi nding the «hook» symbol
(Fig. 5).
During handling operations make sure the implement has the
required safety devices and guards.
1.6 ASSEMBLY DRAWING
1 External shoe;
2 Mowing guide;
3 Cutting arm;
4 Upper 3rd point hitches;
5 Gauge varying articulation;
6 Chassis;
7 Tirant;
8 Lower 3rd point hitches;
9 Lift link adjuster chain;
10 Support;
11 Identifi cation plate;
12 Cover;
13 Bar height adjuster chain;
14 Hoisting arm;
15 Support;
16 Protective casing for connecting-rod systems;
17 Hazard bar.
4
6
8
2
3
5
10
12
7
14
15
Fig. 6
1
11
13
9
16
17
