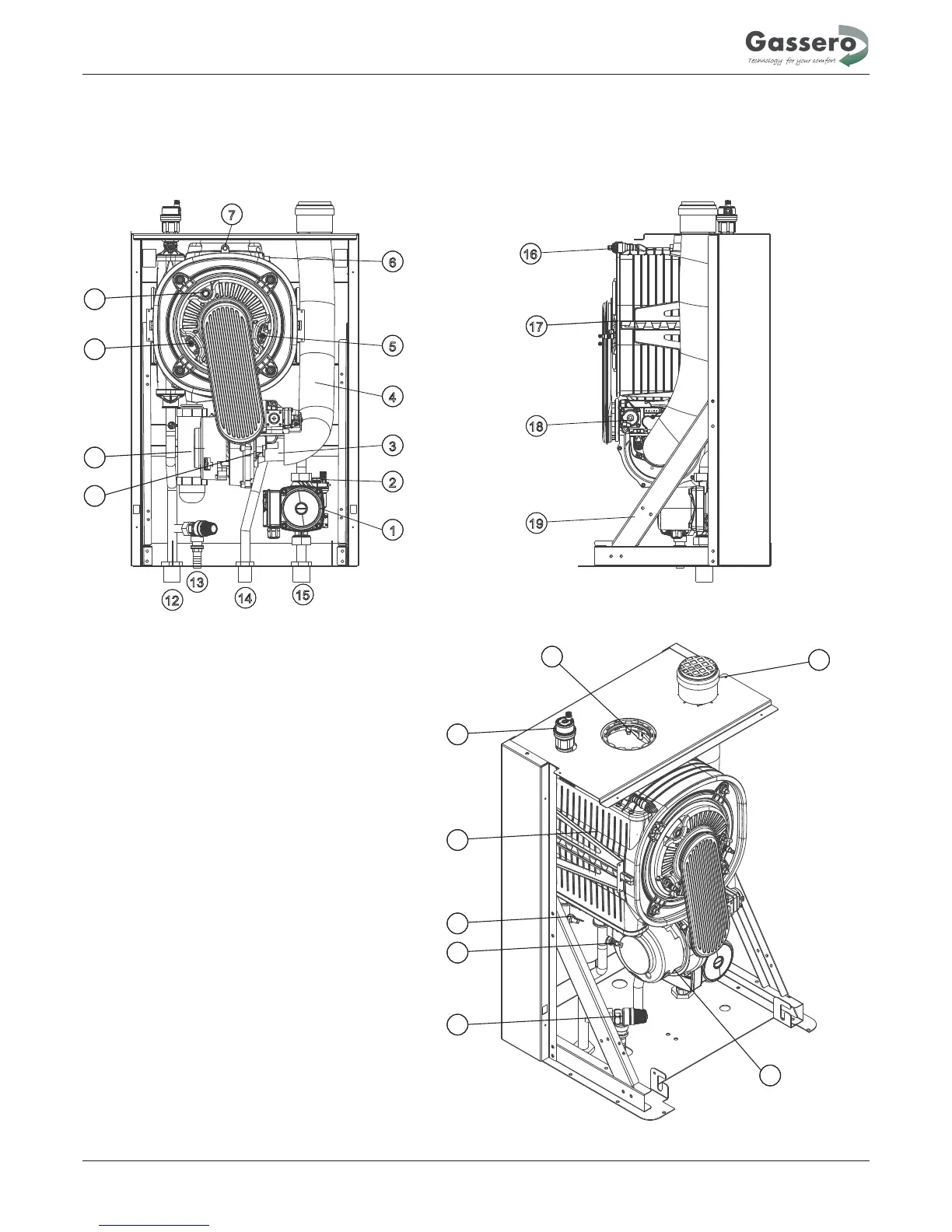

3.3 WALLCON 42/50/67 MAIN COMPONENTS
Technical features
9
KEY
1 - Pump
2 - Pump Air Vent
3 - Venturi Adapter
4 - Air intake flexi duct
5 - Ignition Electrode
6 - Flue thermalfuse
7 - Flue Gas Temperature Sensor
8 - Flame Observation Glass
9 - Ionization Electrode
10 - Syphon
11 - Venturi
12 - Water Flow Connection
13 - Safety Drain Connection
14 - Gas Supply Connection
15 - Water Return Connection
16 - Manual Air Vent
17 - Heat Exchanger Bracket
18 - Gas Valve
19 - Chassis Support Bracket
20 - Flue Outlet
21 - Automatic Air Vent
22 - Heat Exchanger
23 - Water Flow NTC Sensor
24 - Water Return NTC Sensor
25 - Safety Relief Valve
26 - Fan
27 - Air Intake Terminal
16
17
19
18
21
22
23
24
25
20
27
26
1
2
3
4
5
8
7
9
10
11
6
12
13
14
15
