contacts, just join two wires together at one terminal. In the place of the A wire,
solder additional single signal wire (3 – provided with the MERF 3.2 kit). The GATE
wire is thin because it handles very low current and is only used for
switch-detection. If you have already connected the MERF 3.2 between the
battery and the AEG, do not forget about a signal wire. Connect it to the top pin.

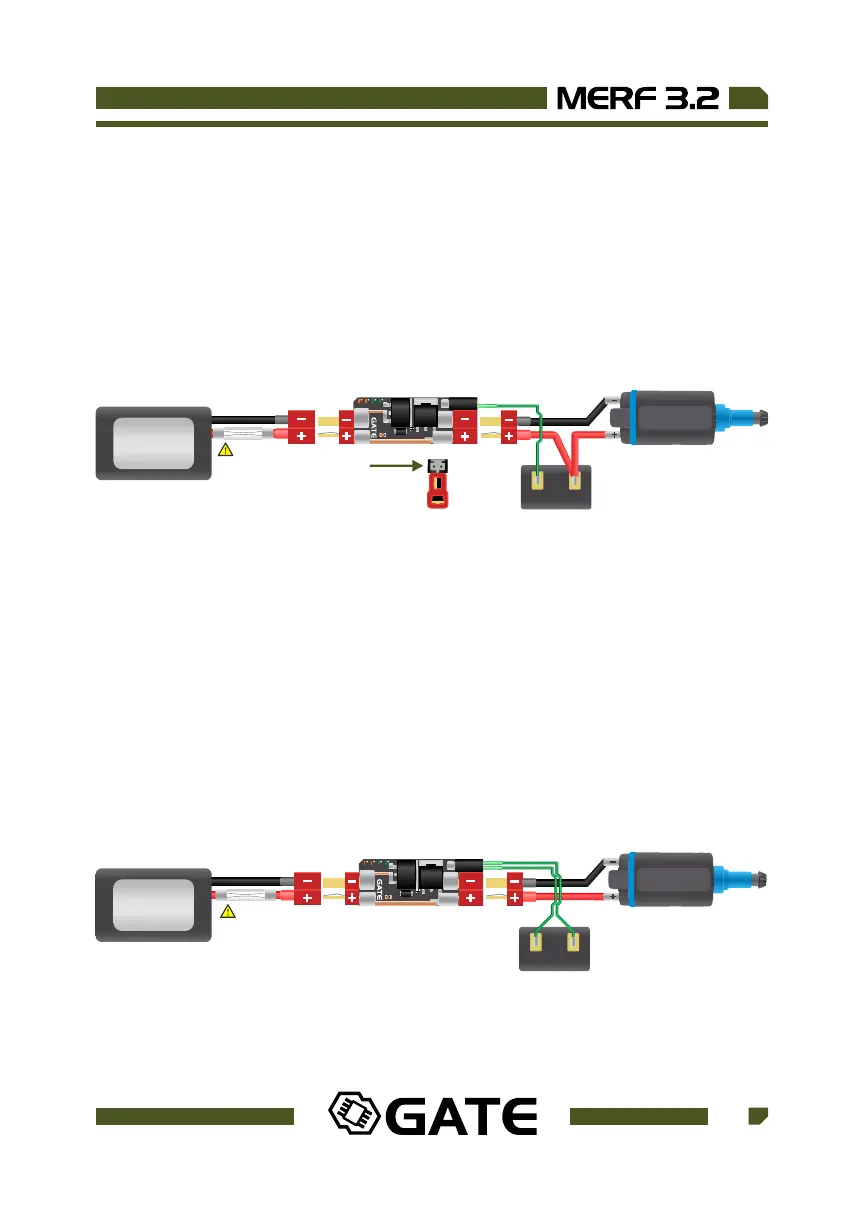

Fig 2. Connection-modification scheme
b) Installation of MERF 3.2 with replacement of wires
Replacing the existing AEG wiring with high-quality, low-resistance wiring in
conjunction with the installation of a MOSFET allows for the ultimate in efficiency.
16 awg or thicker wire is recommended. Solder the double signal wire (provided
with the kit) to the contacts, according to the Figure 3.
Fig 3. Complete re-wiring scheme
3.
TOP PIN
4.
AEG Motor
CONTACTS
AEG Motor
CONTACTS
BATTERY
7.2 - 12.8V
BATTERY
7.2 - 12.8V
USER GUIDE
11
WWW.GATEE.EU
FUSE
FUSE
