Gate MERF 3.2 User Manual

02. Installation
Thanks to two operating modes, MERF 3.2 works with both standard and
modified installation.
1. Simple installation (no modification to your AEG is required):
Connect MERF 3.2 between the battery and the AEG. You can make configuration
using programming button from the kit.
2. Enhanced installation:
To adapt the standard AEG installation to work with MERF 3.2 you have to get to
the trigger contacts. In case of GB v2 contacts are located inside a gearbox. With a
version 3 gearbox, installation is easier because the contacts are on the outside of
the gearbox. Please consult a local airsoft technician if you have never
disassembled a gearbox before or if you have any installation concerns.
a) Installation of MERF 3.2 without replacement of wires .
Using this method, the original wiring is kept, and the connections are modified.
Referencing Figure 2, de-solder A wire from the one of the trigger contacts and then
solder it to the B wire. It does not matter which wire you disconnect from the trigger

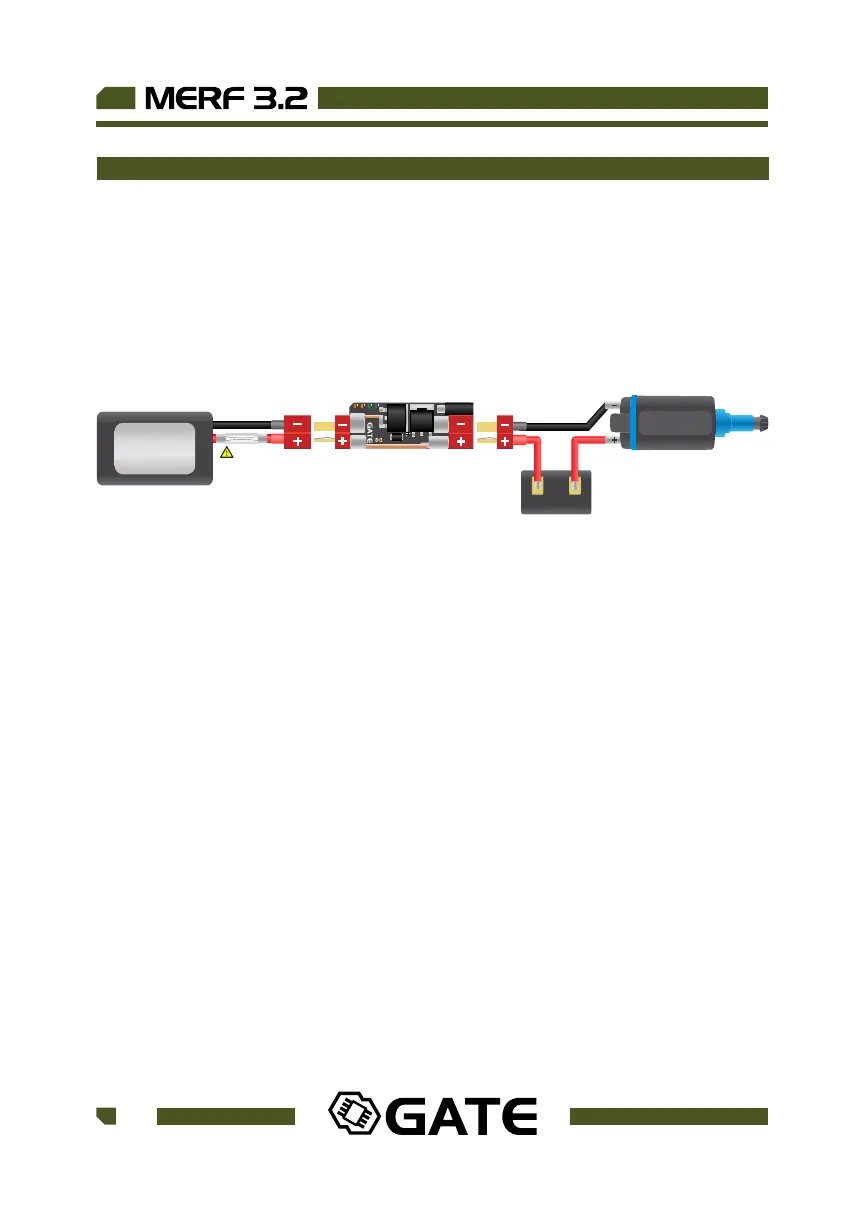

Fig 1. Standard AEG installation
USER GUIDE
10
WWW.GATEE.EU
BATTERY
7.2 - 12.8V
AEG Motor
A B
CONTACTS
FUSE
