Gate NanoHARD - Read Diagnostic Trouble Codes

14
WWW.GATEE.EU
USER GUIDE

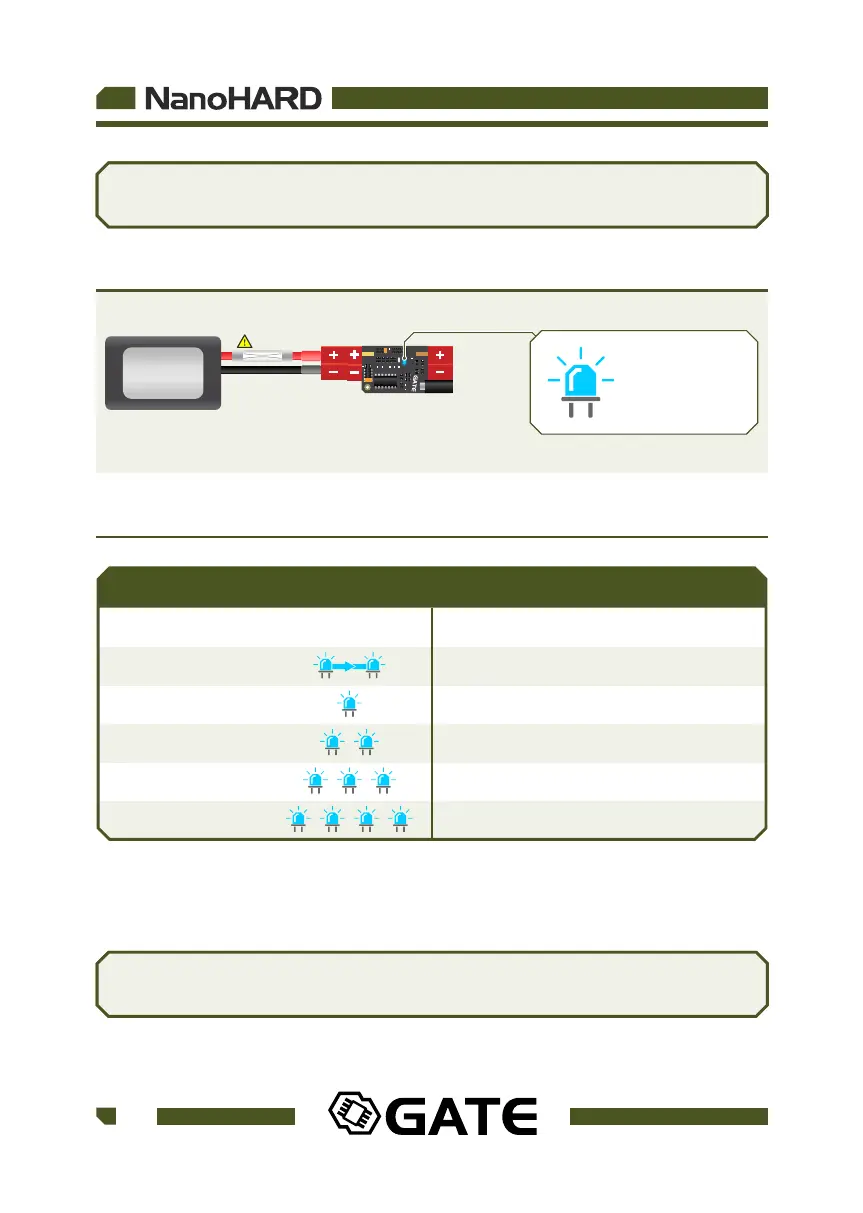

Step 5. You are in a diagnostic mode.
uC
BATTERY
UP TO 14.8V
Blue LED
is blinking
Step 6. Read ount the number of flashes.Diagnostic Trouble Codes, c
FLASHES
1 long flash
1 short flash
2 short flashes
3 short flashes
4 short flashes
There may be several codes at once, eg. Low voltage and Too high current: 1 short
flash; break; 3 short flashes; break
Diagnostic Trouble Codes
DTC
None
Low voltage
Low voltage HR
Current too high
Temperature too high
IMPORTANT
If you disconnect JUMPER when the is OFF,
go back to Step 1
blue LED
IMPORTANT
If you disconnect JUMPER when the is OFF,
go back to Step 1
blue LED
IMPORTANT
If you disconnect JUMPER when the is OFF,
go back to Step 1
blue LED
IMPORTANT
Diagnostic Trouble Codes are stored even if battery
is disconnected
FUSE
