Gate NanoHARD User Manual

09
WWW.GATEE.EU
USER GUIDE

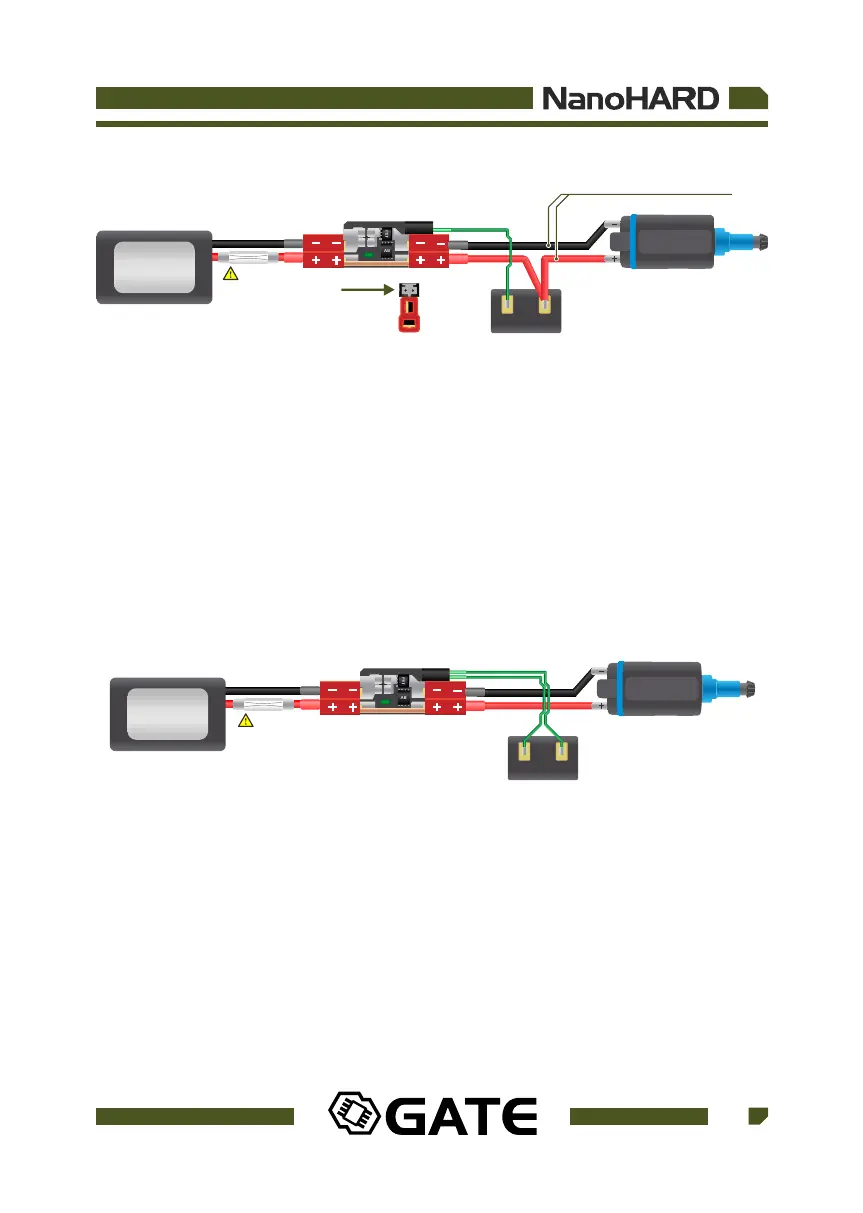

Fig 2. Connection-modification scheme
b) Installation of NanoHARD with replacement of wires. Replacing the existing
AEG wiring with high-quality, low-resistance wiring in conjunction with the
installation of a MOSFET allows for the ultimate in system efficiency. 16 awg or
thicker wire is recommended. Solder the dual signal wire (No. 03 – provided in the
kit) to the trigger contacts. Connect the motor directly to the NanoHARD.
Fig 3. Complete re-wiring scheme
1.
TOP PIN
AEG Motor
CONTACTS
MAX LENGHT 30 CM (11.8 inch)
BATTERY
UP TO 14.8V
1.
AEG Motor
CONTACTS
BATTERY
UP TO 14.8V
FUSE
FUSE
