Replacing convertible notebook components
38

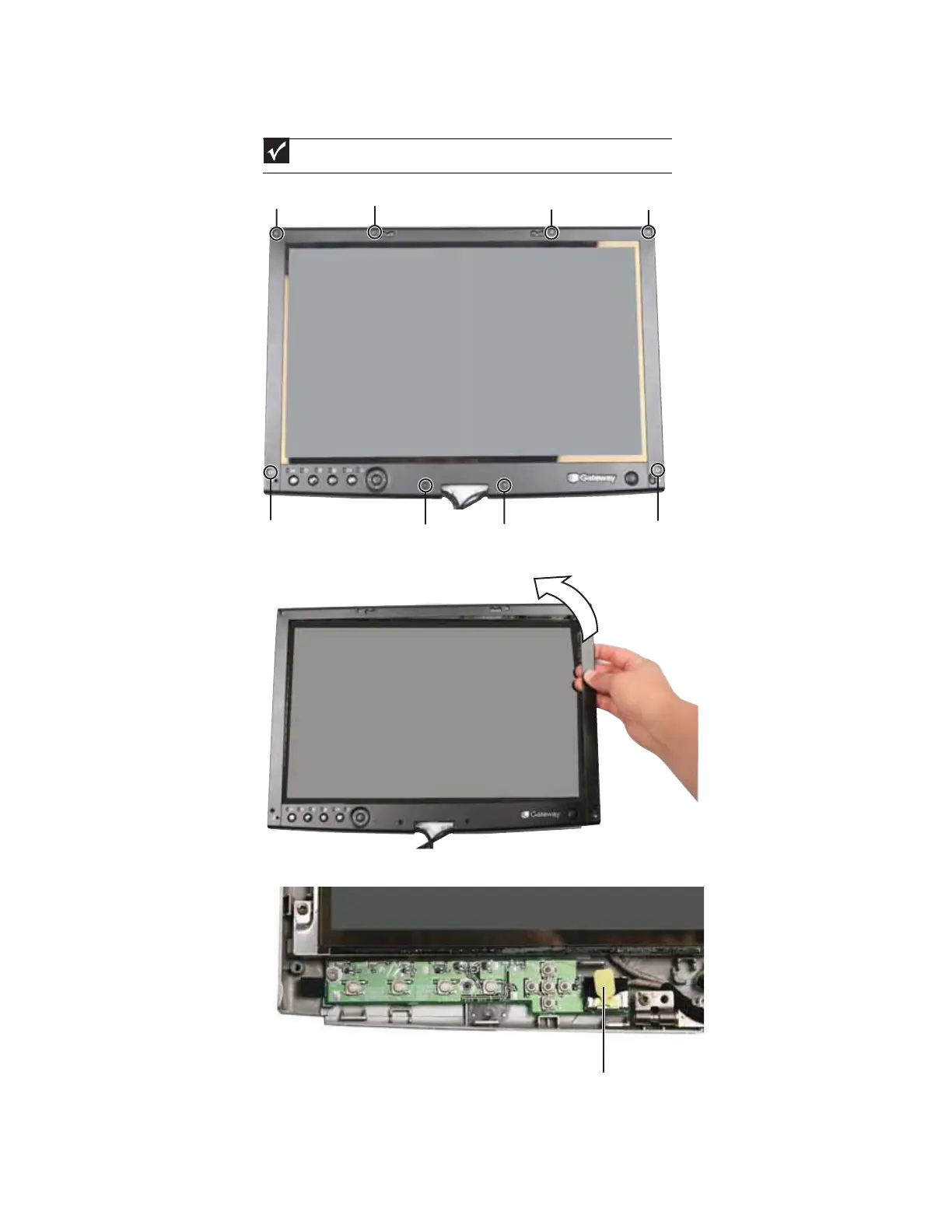

5 Remove the screws from the front of the LCD panel assembly.
6 Carefully separate the front and back of the LCD panel assembly.
7 Disconnect the tablet button cable from the tablet button board.
Important
The number of screws varies by convertible notebook model.
Screw Screw Screw Screw
Screw Screw Screw
Screw
Connector
