Replacing convertible notebook components
50
Replacing the palm rest

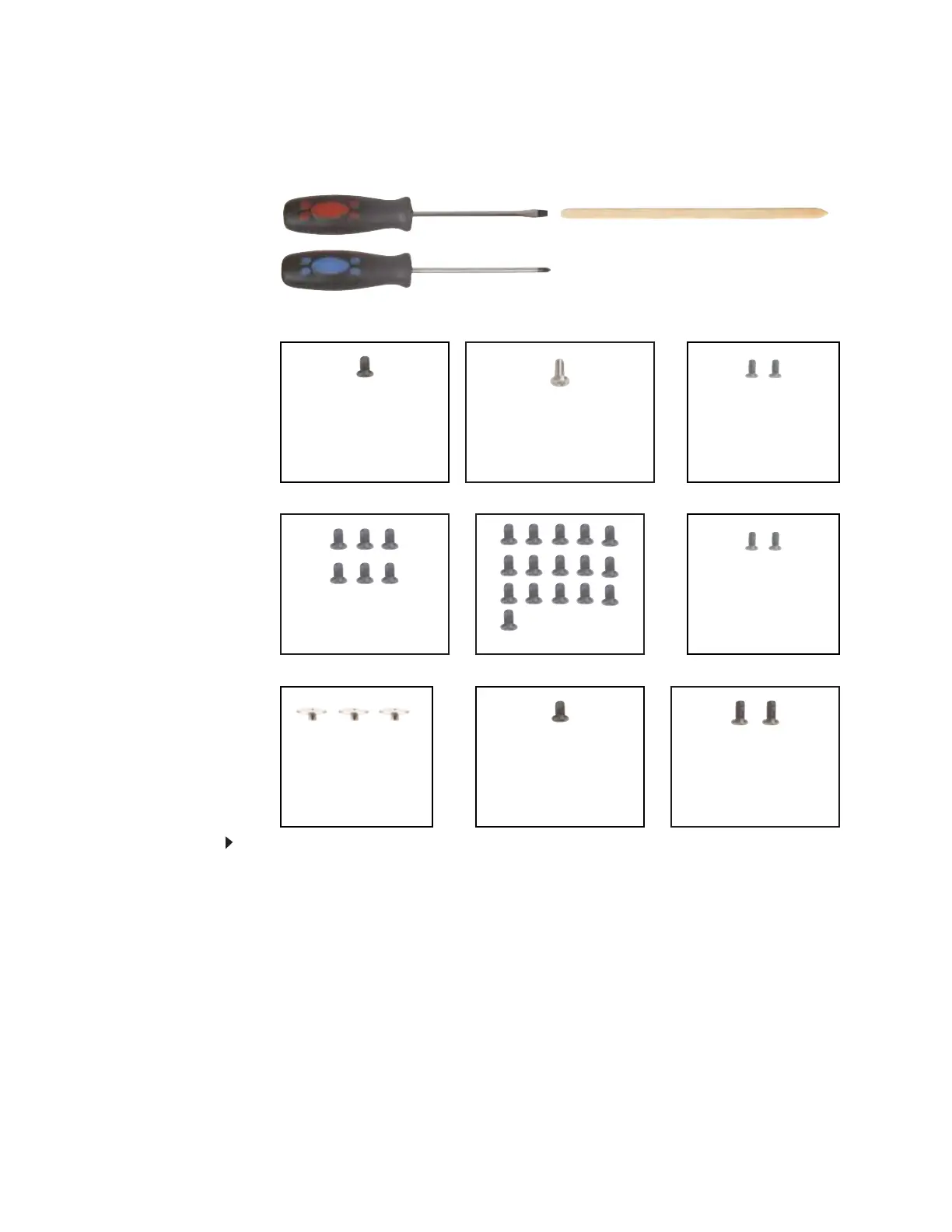

Tools you need to complete this task:
v
Screws removed during this task:
To replace the palm rest:
1 Complete the steps in “Preparing the convertible notebook” on page 5.
2 Remove the bay module by following the steps in “Replacing a bay module” on page 7.
3 If the convertible notebook has wireless networking built in, unplug the wireless antennas
by following the steps in “Replacing the IEEE 802.11 wireless card” on page16.
4 Remove the hard drive by following the steps in “Replacing the hard drive” on page 21.
5 Remove the hinge covers by following the steps in “Replacing the hinge covers” on page 26.
6 Remove the keyboard cover by following the steps in “Replacing the keyboard cover” on
page 27.
7 Remove the keyboard by following the steps in “Replacing the keyboard” on page 28.
8 Remove the LCD assembly by following the steps in “Replacing the LCD assembly” on page 40.
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
1 black 2.5*8.0 (Optional
bay module security
screw)
1 chrome 2.5*5.0 (Hard
drive)
2 chrome 2.0*5.0
(palm rest-hard drive
bay)
3 chrome 2.0-0.4*2.0
(palm rest-modular
drive bay)
1 black 2.5*8.0 (palm
rest-top)
14-16 black 2.5*8.0
(palm rest-bottom)
2 black 2.5*8.0
(Keyboard)
4 or 6 black 2.5*8.0 (LCD
hinge to notebook)
2 chrome 2.0*3.0
(Fingerprint reader)
