Disassembly Procedure Flowchart
The flowchart gives you a graphic representation on the entire diassembly
sequence and instructs you on the components that need to be removed
during servicing. For example, if you want to remove the system board, you
must first remove the keyboard, then disassemble the inside assembly frame
in that order.

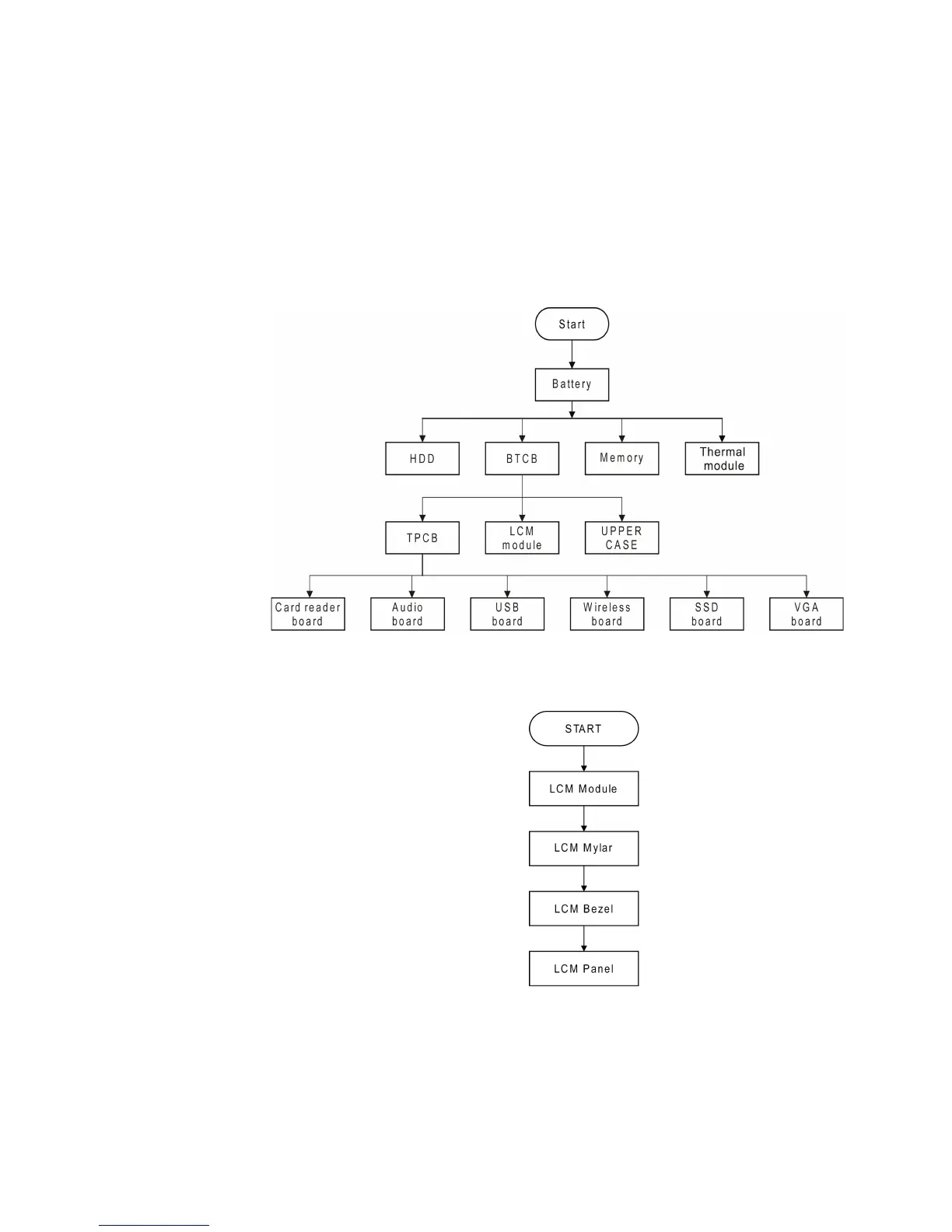

Main unit disassembly flow chart
LCM module disassemble flow chart
To Next Page
