CHAPTER 3: Machine Disassembly and Replacement
46

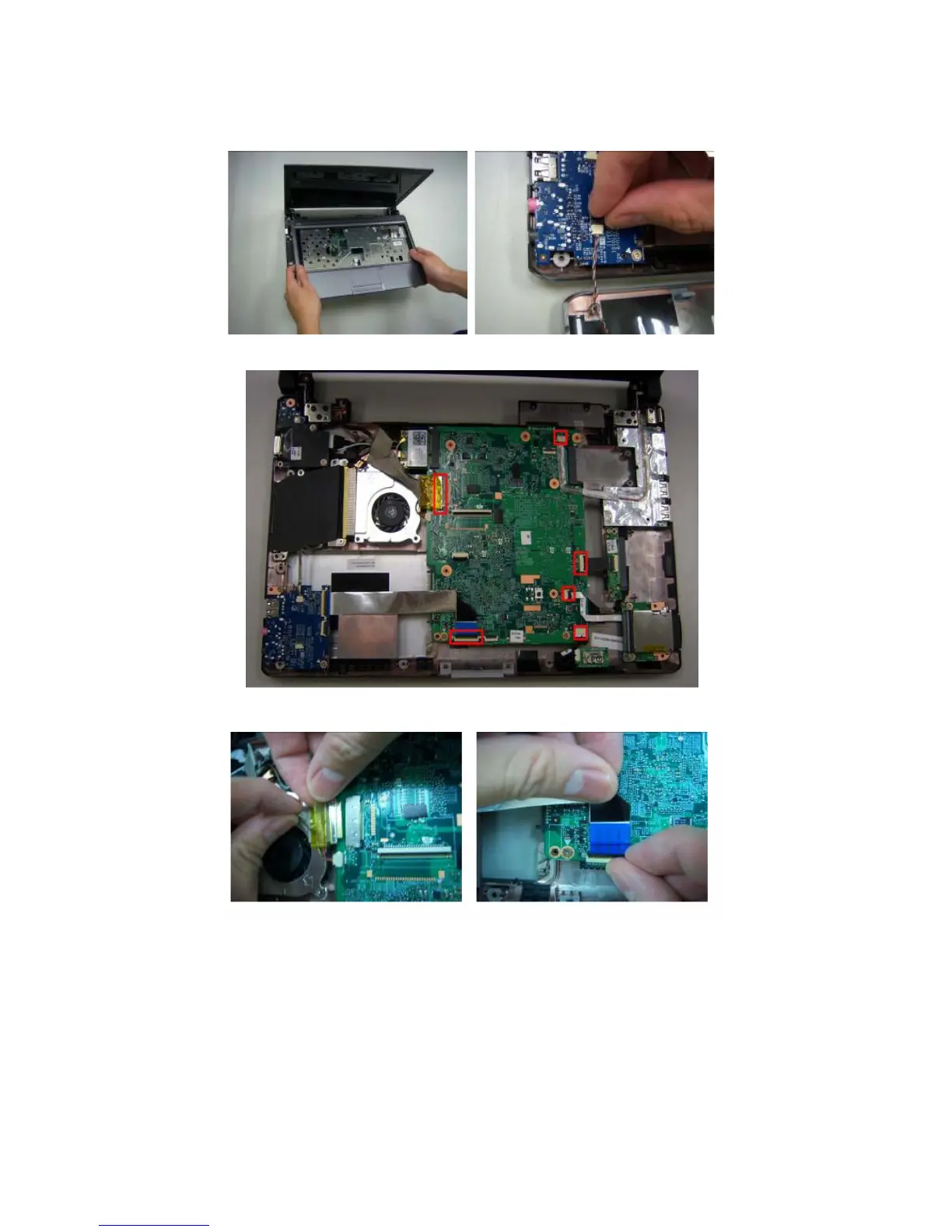

12 Remove upper case and disconnect the connection between the audio
board and upper case.
13 Disconnect all of the FFC on the main board.
14 Remove the FFC of the panel and audio board.
