Replacing the IEEE 802.11 wireless card
www.gateway.com
21

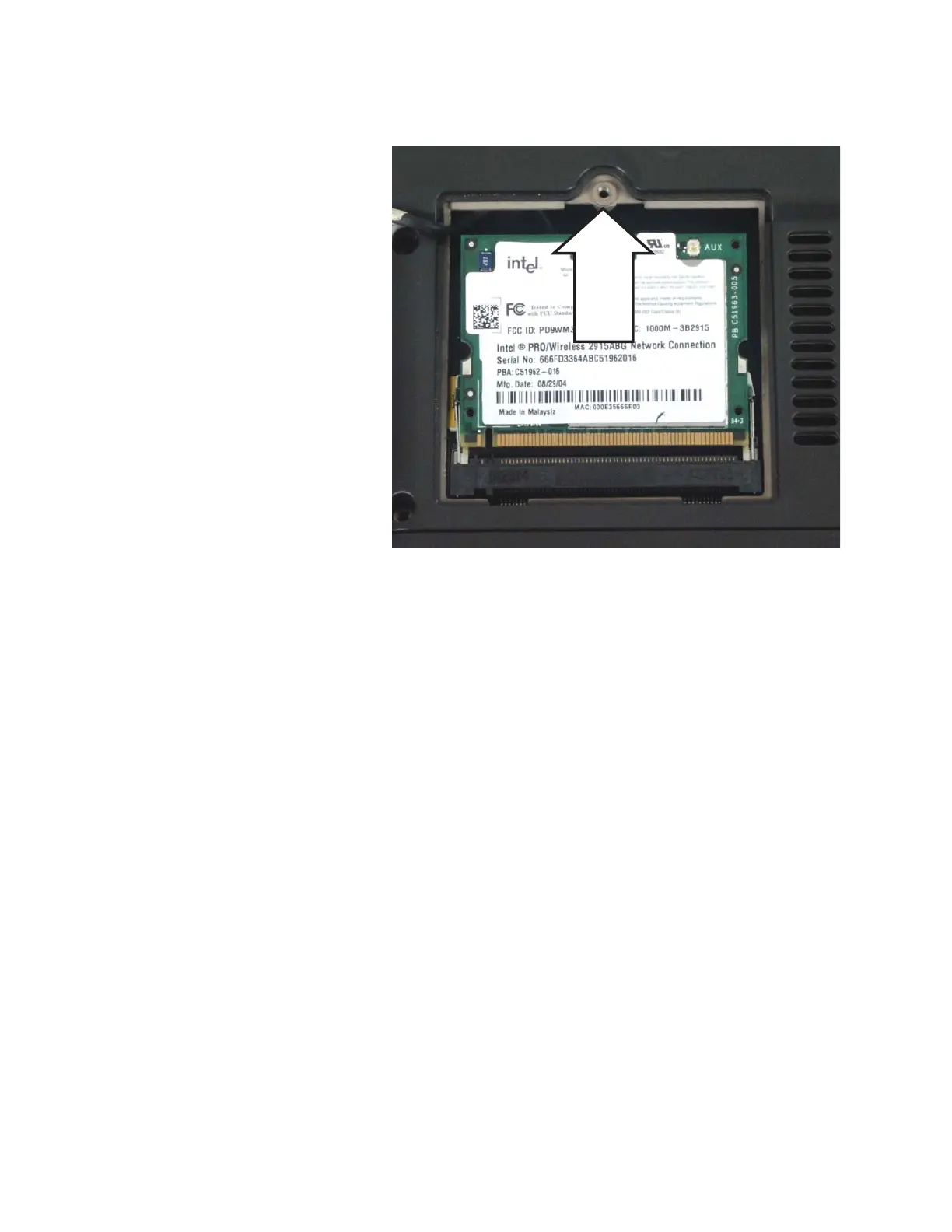

6 Pull the old card out of the slot.
7 Hold the new card at a 30-degree angle and slide it into the empty slot.
This card is keyed so it can only be inserted in one direction. If the card
does not fit, make sure that the notch in the card lines up with the tab in
the card slot.
8 Move the antenna cables out of the way.
9 If the wireless card is held by clips, press the card down until it clicks into
place.
-OR-
If the wireless card is held by a screw, replace the screw.
