GE Interlogix NX-8 - Security NetworX System User Manual

Page 54

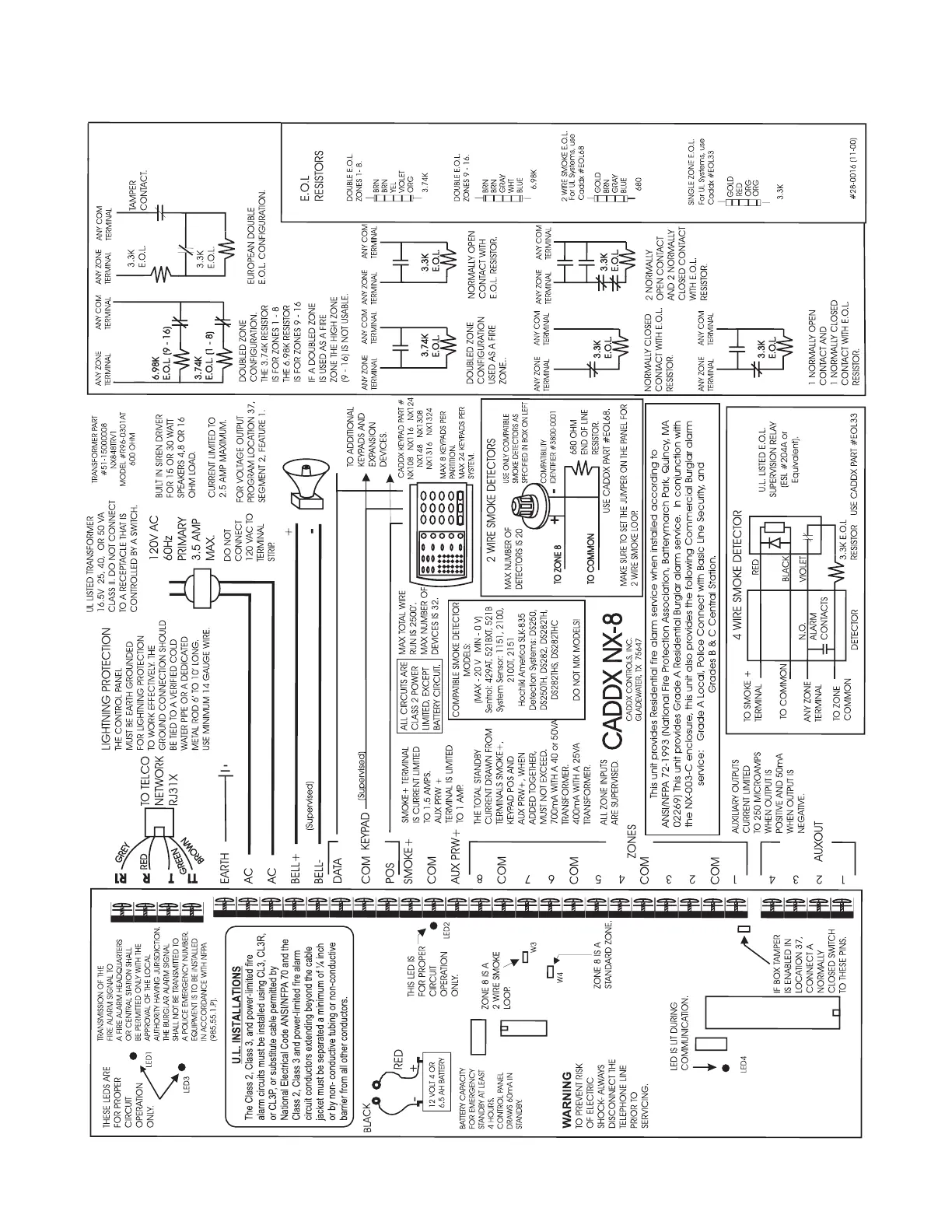

NX-8 WIRING DIAGRAM
 For CE labeled products, please refer to page 57 for specific electrical requirements.

GE Interlogix NX-8 - Security NetworX System Specifications

Power

operating power	16.5 VAC 25, 40, or 50 VA Transformer
auxiliary power with 25 VA transformer	12 VDC Regulated 500 mA
auxiliary power with 40 or 50 VA transformer	12 VDC Regulated 1 AMP
auxiliary power with NX-320 power supply	12 VDC Regulated 2 AMPS + Control

Loop Specifications

standard loop resistance	300 Ohms Maximum
2-wire smokes resistance	30 Ohms Maximum
loop response	Selectable 50mS or 500mS

Operating Environment

operating temperature	32 to 120 degrees F
built-in siren driver	2-tone (Temporal and Yelp)
LED keypad current draw	130 mA max.

Weight and Dimensions

metal enclosure dimensions	11.25" Wide x 11.25" High x 3.50" Deep
shipping weight	9 lbs.
LED keypad dimensions	6.4" Wide x 4.0" High x 1.1" Deep
NX-148 LCD keypad dimensions	6.4" Wide x 5.3" High x 1.0" Deep
