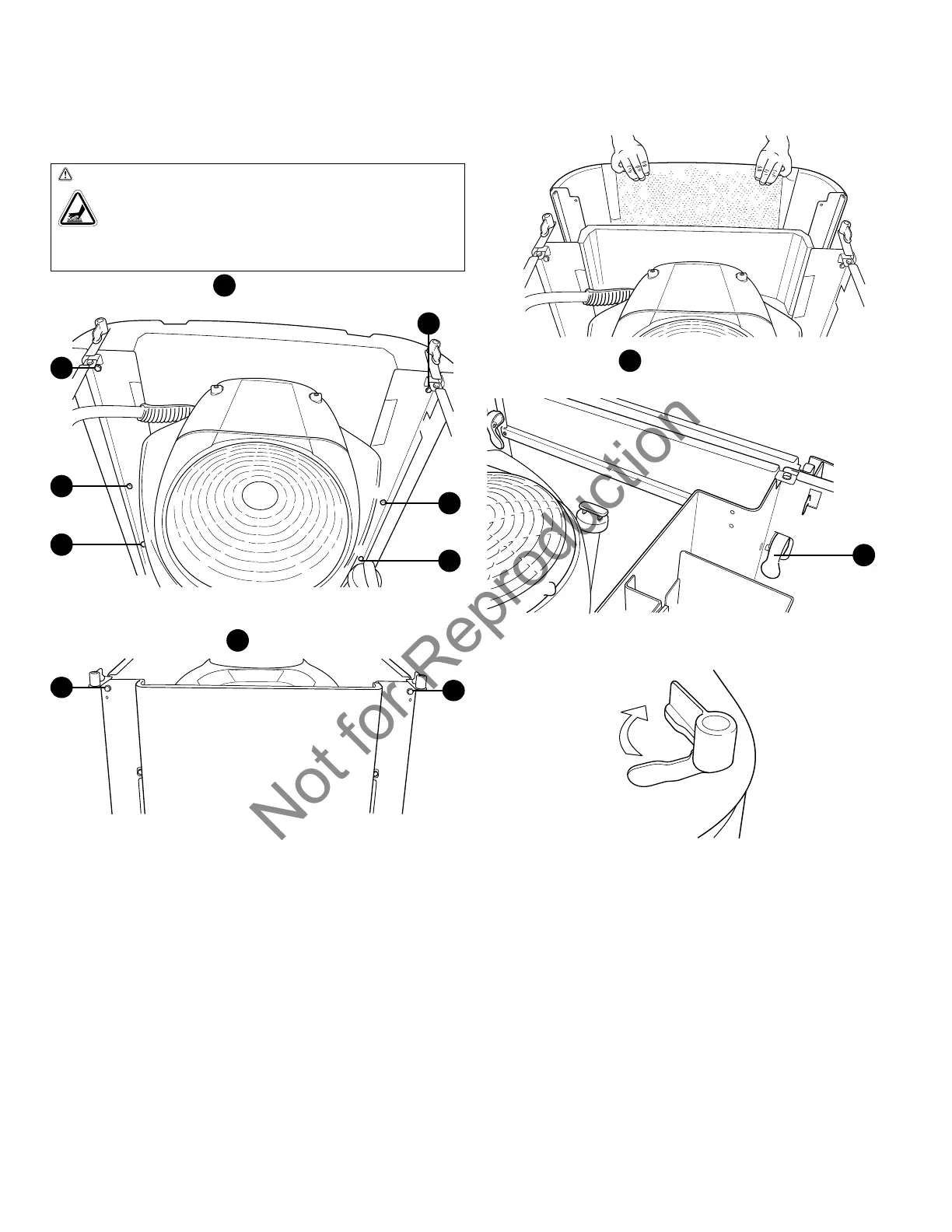

To remove exhaust panel:
1. Remove roof and divider.
2. Remove side panels.
3. Remove 6 screws
A
from exhaust panel.
4. Pull exhaust panel up and out of base.
5. Remove two screws
B
and pull muffler cover off.
6. Replace muffler cover and exhaust panel in reverse
order.
To install side panels:
1. Place panel in grooves and slide down in place.
2. Push latches
C
down on both sides of panel to lock
into place.
3. Replace divider and rotate knobs 1/4 turn to
lock in place.
4. Replace roof.
WARNING Contact with muffler area could cause burns
resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
A
A
A
A
A
A
B
B
C
