OPM_SGS_ISG_M22_M30_0US_V011.doc 9/38 Installation Guide
SG Series
225 & 300 kVA
2 LAYOUT
2.1 LAYOUT SG Series 225 AND 300 KVA
SGS_225-300_UPS_GE_02

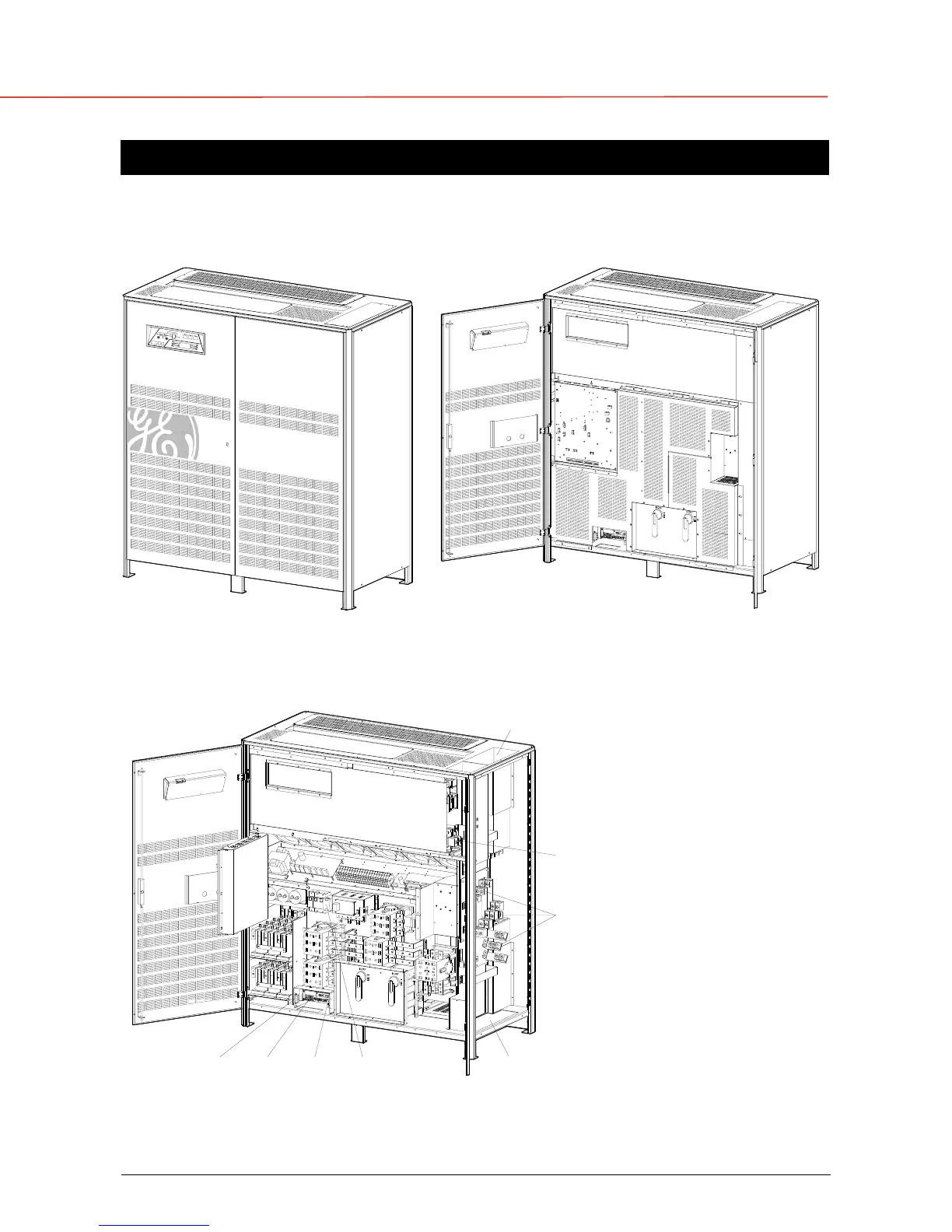

Fig. 2.1-1 SG Series general view
SGS_225-300_UPS_03
Q1
Q2
2
4
3
1
4
1
2
3
Fig. 2.1-2
SG Series
general view with open doors
SGS_225-300_UPS_04
Q2
Q1
2
4
3
1
1
2
3
4
1
3
4
2
XA CR PAXB
Fig. 2.1-3 SG Series general view with optional 5
th
harmonic filter
and removed protection panels
1 Opening for top cable entry
2 Opening for bottom cable
entry
3 Compression lugs for Utility
input and Load output
4 Compression lugs for
external Battery connection
CR Connectivity Rack
PA 24VDC / 1A Auxiliary Power
Supply
XA Terminals for 24VDC
A
uxiliary Power Supply
connection
XB Terminals for EPO
connection
