CHAPTER 4: 3 SERIES IEC61850 GOOSE USING THE IEC 61850 CONFIGURATOR
SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE 4-35
1.9. Repeat for the second 3 Series relay.
1.10. Select OK to save the settings and return to the Main Menu.

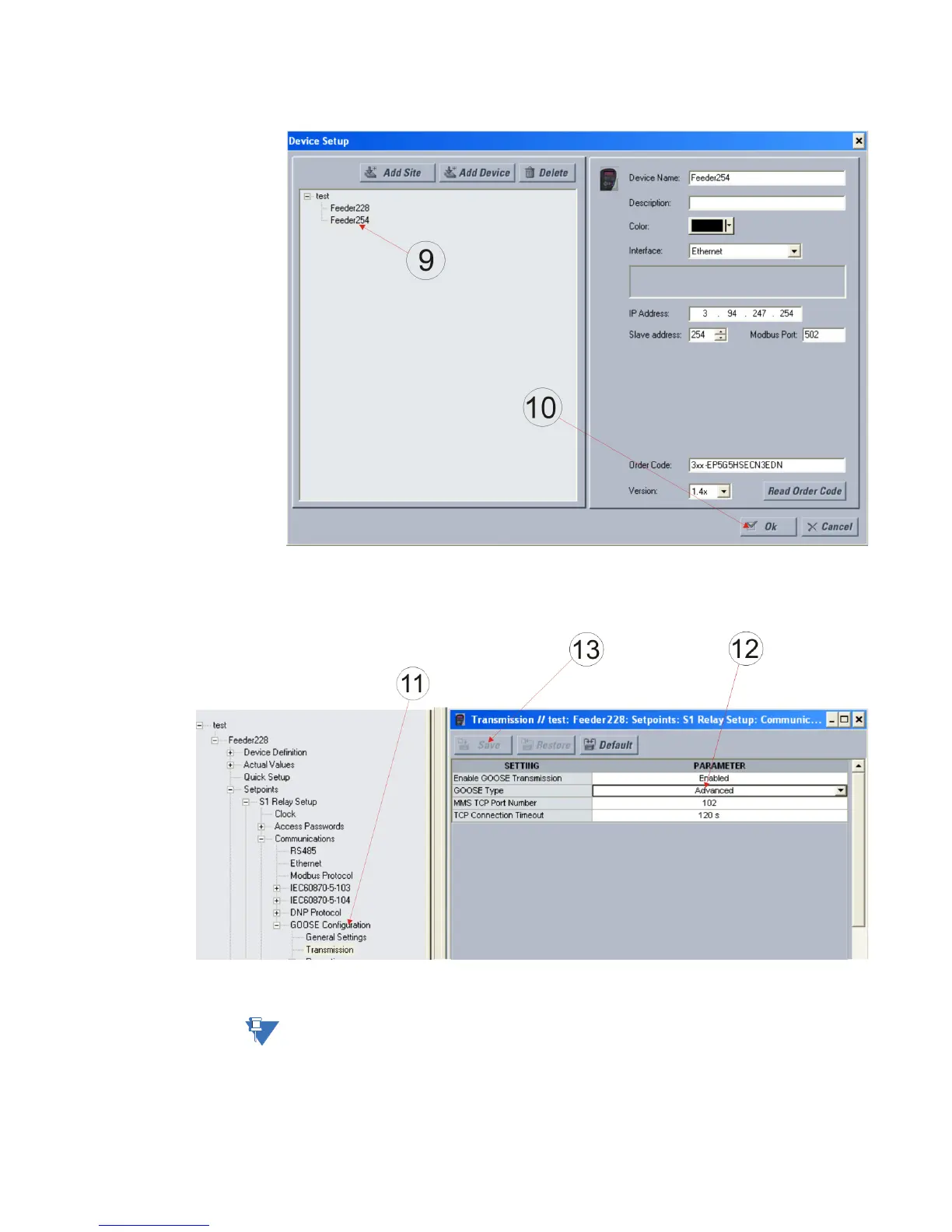

- Before we can configure the relay using the IEC61850 Device Configuration tool we
must set the GOOSE message transmission of both relays to Advanced as follows:
1.11. For relay 228, open Setpoints > Communications > GOOSE Configuration >
General Settings.
NOTE:
For EnerVista 3 Series Setup software version 2.2x and earlier, this menu option is under
Transmission instead of General Settings.
1.12. Set the GOOSE Type to Advanced.
1.13. Select Save.
