4-36 SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE
USING THE IEC 61850 CONFIGURATOR CHAPTER 4: 3 SERIES IEC61850 GOOSE
1.14. Repeat for Relay 254.
2. Configure relay 228’s GOOSE transmission
The following steps are used to configure relay 228’s transmission:

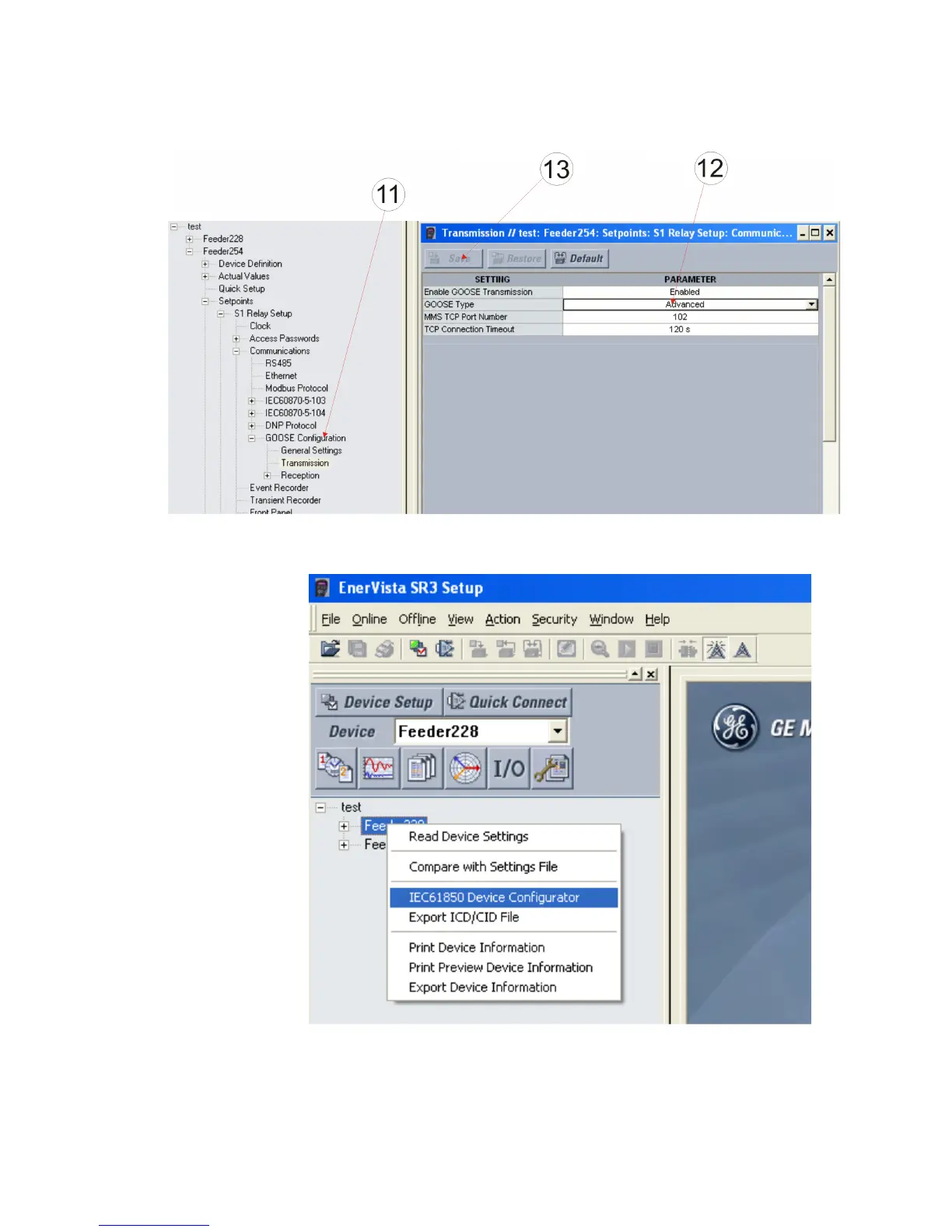

2.1. Right-click relay 228, then select IEC61850 Device Configurator to launch the
software
