CHAPTER 4: 3 SERIES IEC61850 GOOSE USING THE IEC 61850 CONFIGURATOR
SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE 4-37

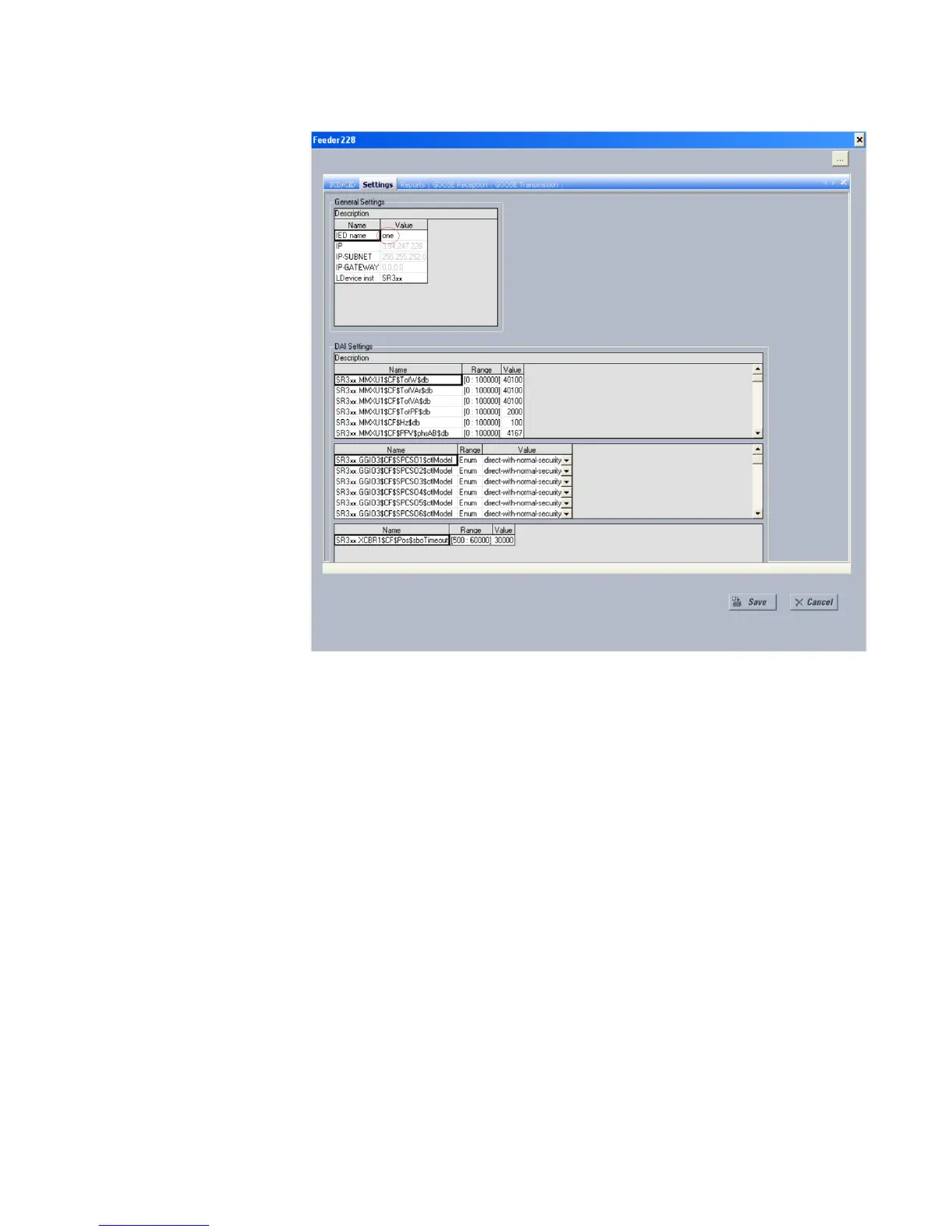

2.2. Select the Settings tab, then enter a unique IED name for this relay. For this lab
exercise select “one” by a left double-click on the cell to the left of the cell
labeled "IEC Name", and enter “one”.
2.3. Select the GOOSE transmission tab to configure the actual GOOSE
transmission name and data within the transmission that will be sent.
