GE 400 Series - Water Line Connection; Drain Line Connection

6
6. Do not install unit near acid or acid fumes.
7. The use of resin cleaners in an unvented enclosure is not recommended.
Water Line Connection
The installation of a bypass valve system is recommended to provide for occasions
when the water conditioner must be bypassed for hard water or for servicing.
The most common bypass systems are the Autotrol
®
Series 256 bypass valve
(Figure 4) and plumbed-in globe valves (Figure 5). Though both are similar in function,
the 256 Autotrol bypass offers simplicity and ease of operation.

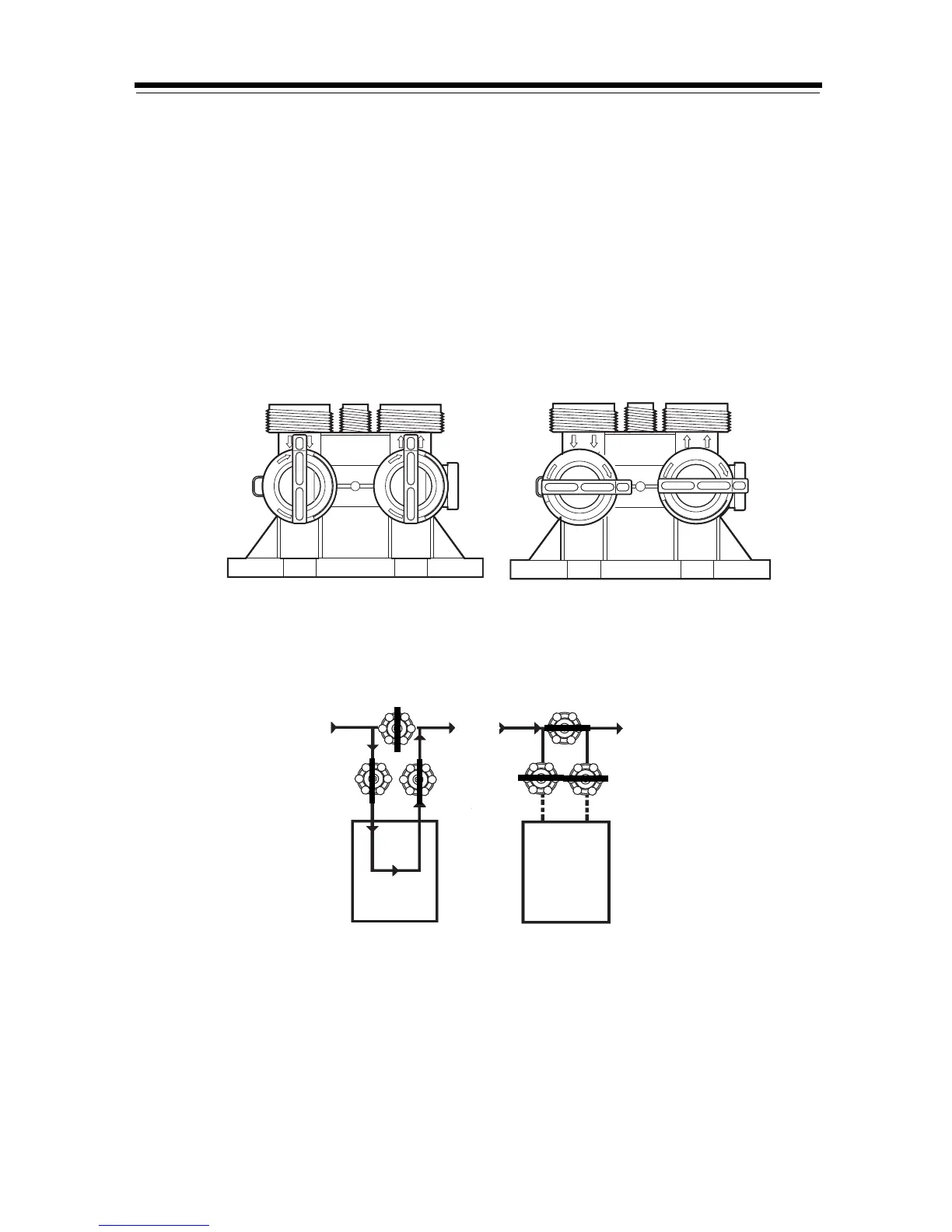

Figure 4 Autotrol Series 256 Bypass Valve
Figure 5 Typical Globe Valve Bypass System
Drain Line Connection
1. Ideally located, the unit will be above and not more than 20 feet (6.1 m) from the
drain. For such installations, use an appropriate adapter fitting (not supplied), to
connect 1/2-inch (1.3-cm) plastic tubing to the drain line connection of the control
valve.
Not in Bypass In Bypass
B
Y
P
A
S
S
B
Y
P
A
S
S
B
Y
P
A
S
S
B
Y
P
A
S
S
Water
Conditioner
Water
Conditioner
Not in Bypass
In Bypass
