GE 5160986-2 - Attaching the Baseplate Riser; Locking the Baseplate Riser; Attaching Coil

Page 23
March 2022
(Curved baseplate)

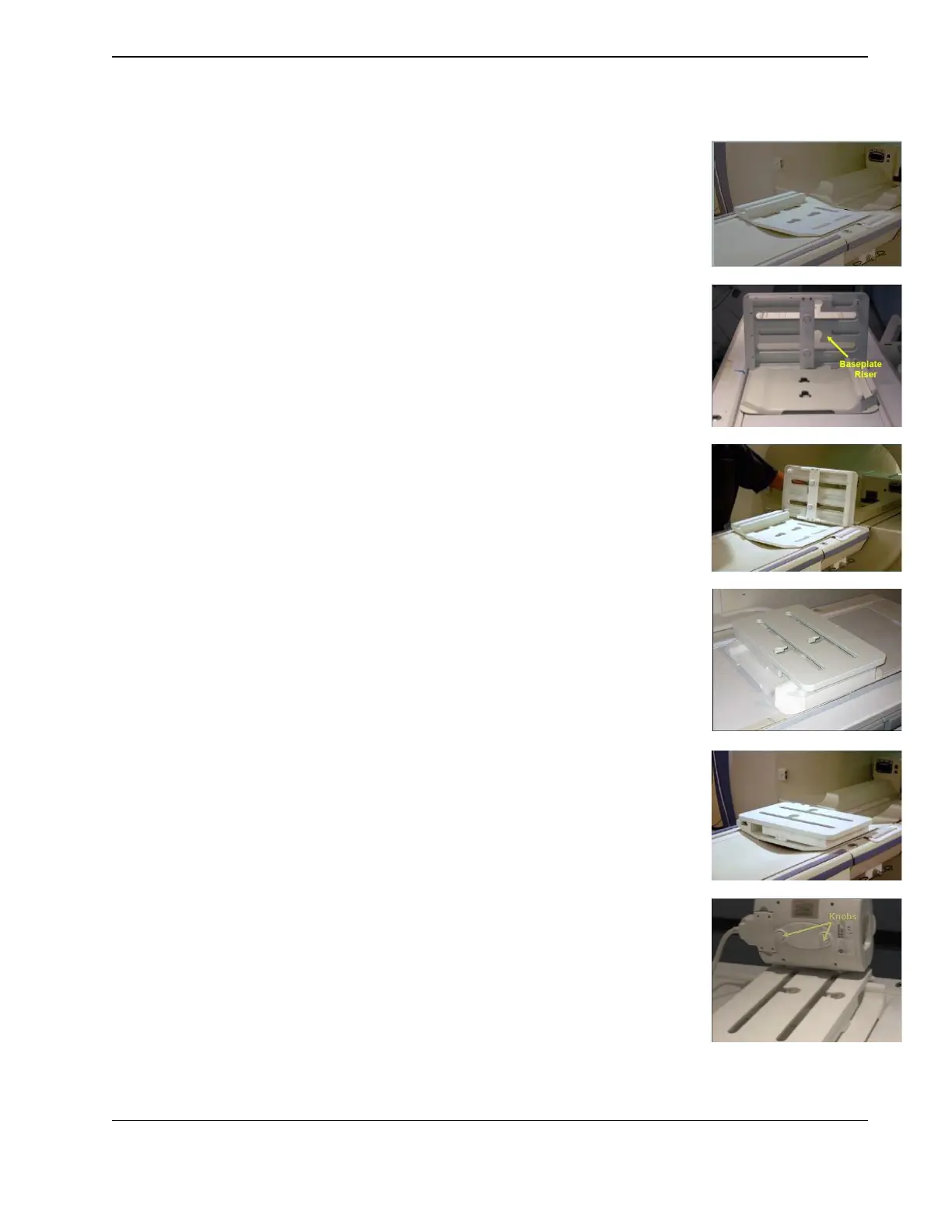

5.3.2 Attaching the Baseplate Riser
Align the knobs on the baseplate riser with the cutouts in the
baseplate.
(Curved baseplate)
5.3.3 Locking the Baseplate Riser
After the baseplate riser knobs are placed into the cutouts, slide the
baseplate riser away from the bore, into the locked position.
(Flat baseplate)
(Curved baseplate)
5.3.4 Attaching Coil
Align the knobs on the coil with the cutouts in the baseplate riser. Slide
the coil into the round cutouts.
