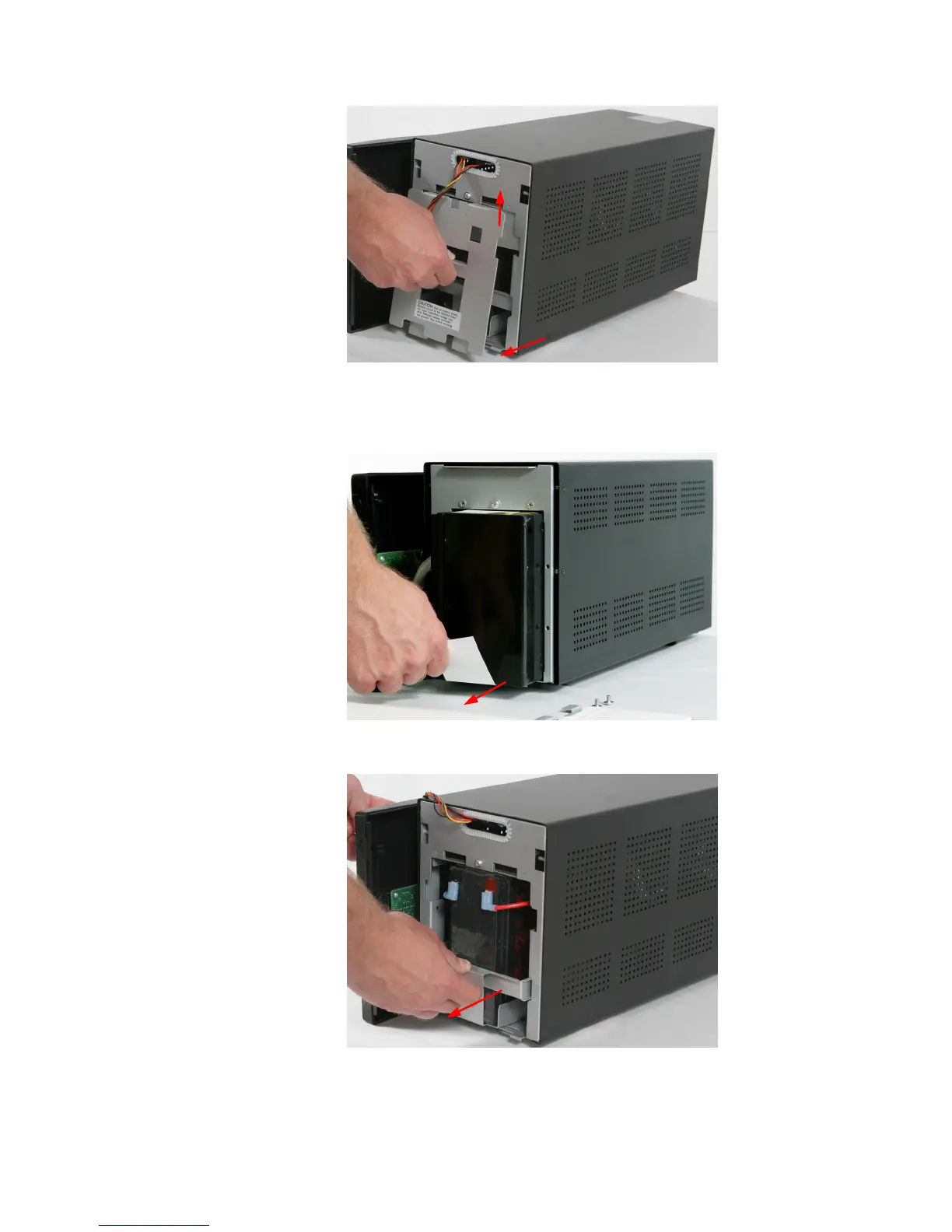

• 1500 & 2000VA – Lift plate up, and then out toward front. (See diagram below)
1500 & 2000VA
Step 4. Carefully slide batteries out.
• 600 & 1000VA - Pull tabs attached to battery out toward front to remove batteries. (See diagram below)
600 & 1000VA
• 1500 & 2000VA - Pull tray to remove batteries. (See diagram below)
1500 & 2000VA
Step 5. Disconnect Wires:
• 600 & 1000VA – Disconnect Black wire. Continue to pull batteries out, and disconnect Red wire. (See diagram
below)
