Modifications Reserved 19
OPM_ITS_USM_M06_M20_0US_V011 (09/2007)
Step 10. Slide the batteries into the UPS. Allow enough working space to make the final wiring connections in step
below.
Step 11. Final connections:
• 600 & 1000 VA: Connect the Black Wire as shown in diagram above.
• 1500 & 2000 VA: Connect the Red Wire as shown in diagrams above.
Step 12. Install Metal Battery cover plate: Install metal plate with Phillips-head screws.
Step 13. Re-Install Left front cover first by using the Phillips-head screws. Put the Right front cover on the Right side
first; press the left side into the UPS.
Step 14. Battery replacement complete.
Rack Mount Procedure -

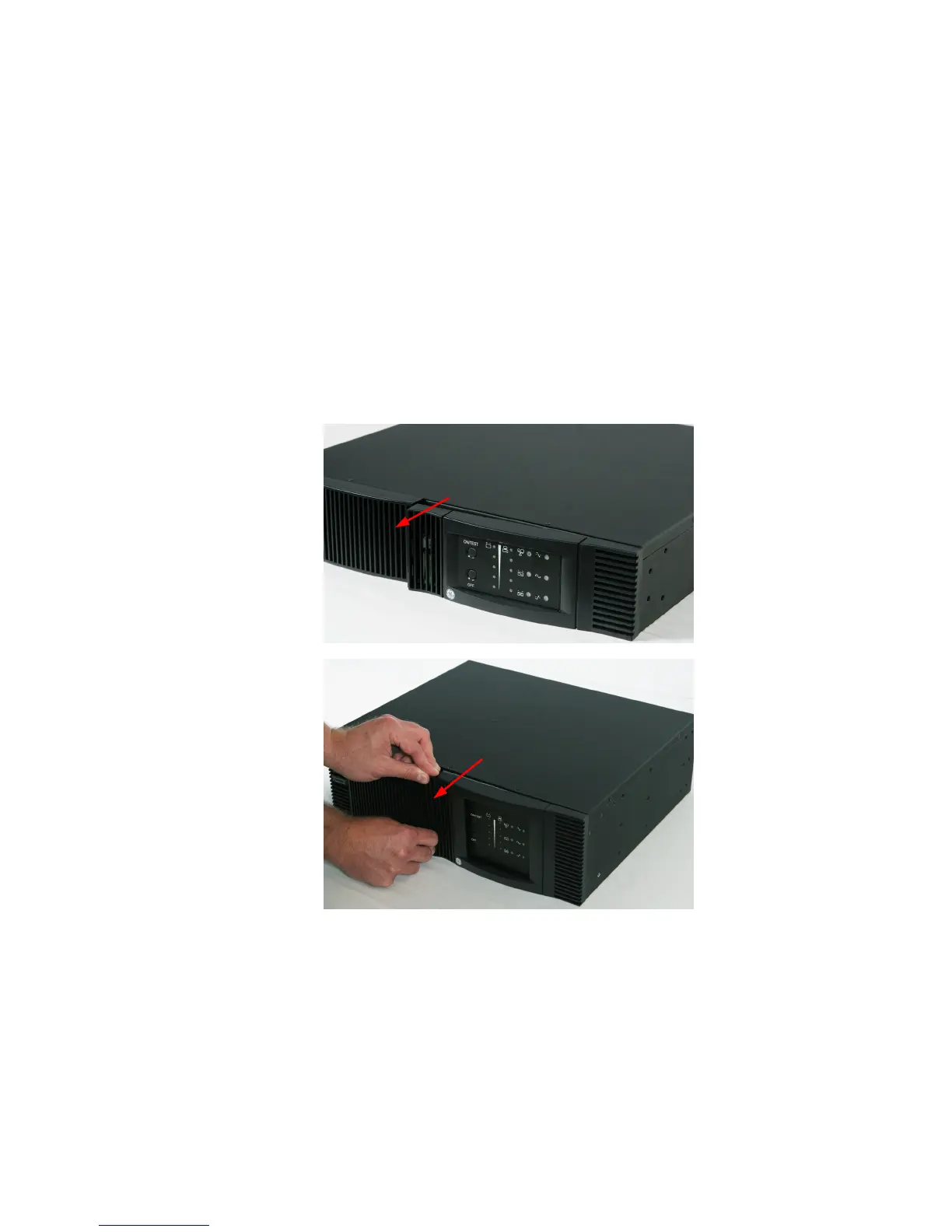

Step 1. Remove front cover panel; pull out from the middle left. (See diagrams below)
600VA & 1000VA
1500 & 2000VA
Step 2. Push front cover panel to the right slightly to allow front cover to be moved to the side. (See diagrams below)
