Modifications reserved Page 45/99
OPM_SPE_XXX_10K_40K_8GB_V020.doc Operating Manual SitePro 10-15-20-30-40 kVA / S8
SitePro S8 40kVA
UPS Model UPS series number UPS nominal rating (kVA)

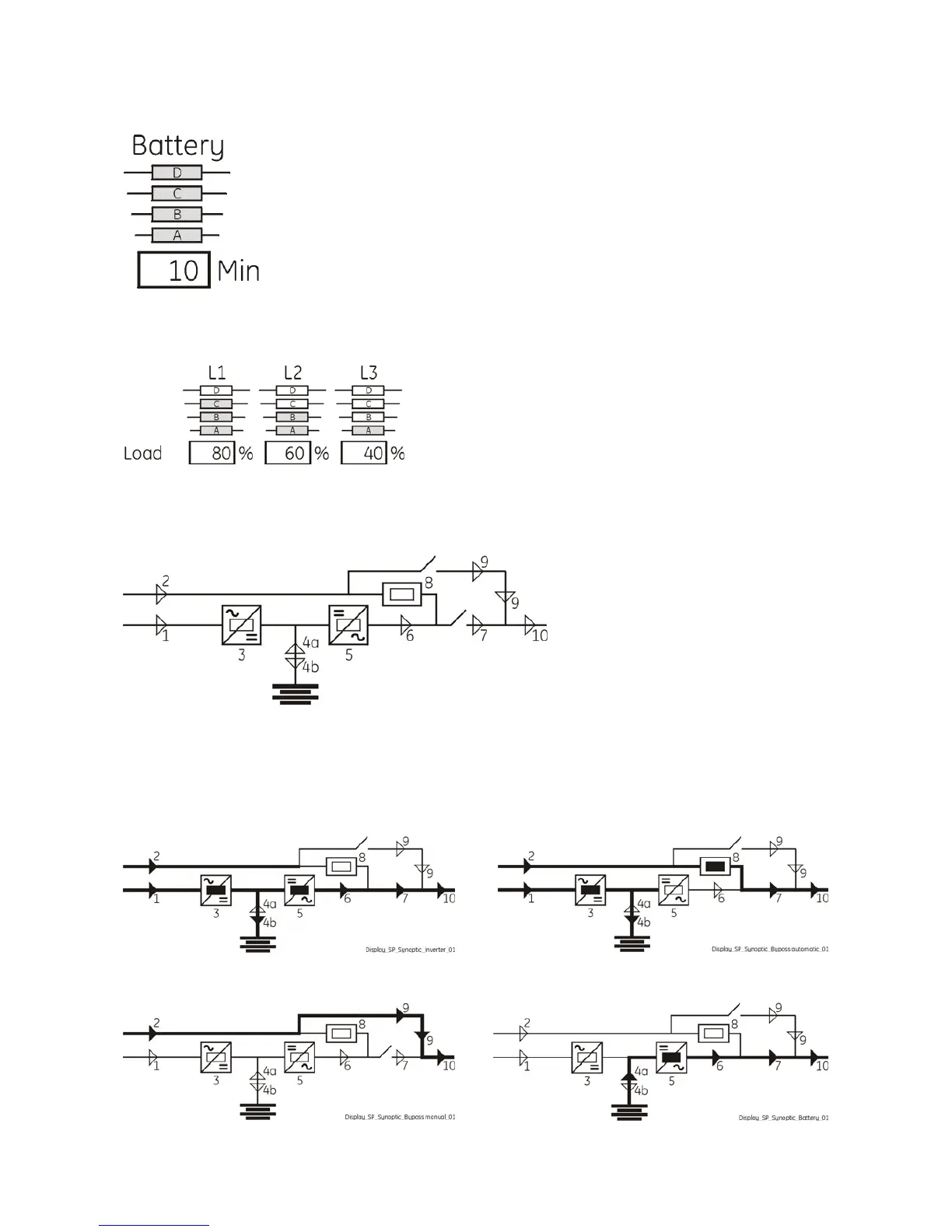

Battery level LED
All LED light indicate a battery autonomy of 100%.
LED A Fixed: indicates a battery autonomy between 6% and 25%.
Blinking: indicates a battery autonomy 5%.
LED A, B Indicate a battery autonomy between 26% and 50%.
LED A, B, C Indicate a battery autonomy between 51% and 99%.
Min: Battery autonomy time in minutes estimates with actual load.
Load level LED
All LED Off indicate a load status at 25%.
LED A Indicates a load level between 26% and 50%.
LED A, B Indicate a load level between 51% and 75%.
LED A, B, C Indicate a load level between 76% and 100%.
LED A, B, C, D Indicate a load level between 101% and 124%.
LED D blinking Indicates a load level 125%.
Fig. 7.1-2 LEDs on synoptic diagram
LEDs on synoptic diagram
LED 1 Input mains rectifier
LED 2 Input mains bypass
LED 3 Rectifier ON
LED 4a Discharging battery
LED 4b Charging battery
LED 5 Inverter ON
LED 6 Load on inverter
LED 7 Q1 closed
LED 8 Load on automatic bypass
LED 9 Manual Bypass Q2 ON
LED 10 Load on UPS
Examples of typical scenarios in the synoptic diagram:
Load supplied by inverter Load supplied by automatic bypass
Load supplied by manual bypass Q2 Load supplied by battery
