6 CONTROL PANEL
6.1 CONTROL PANEL

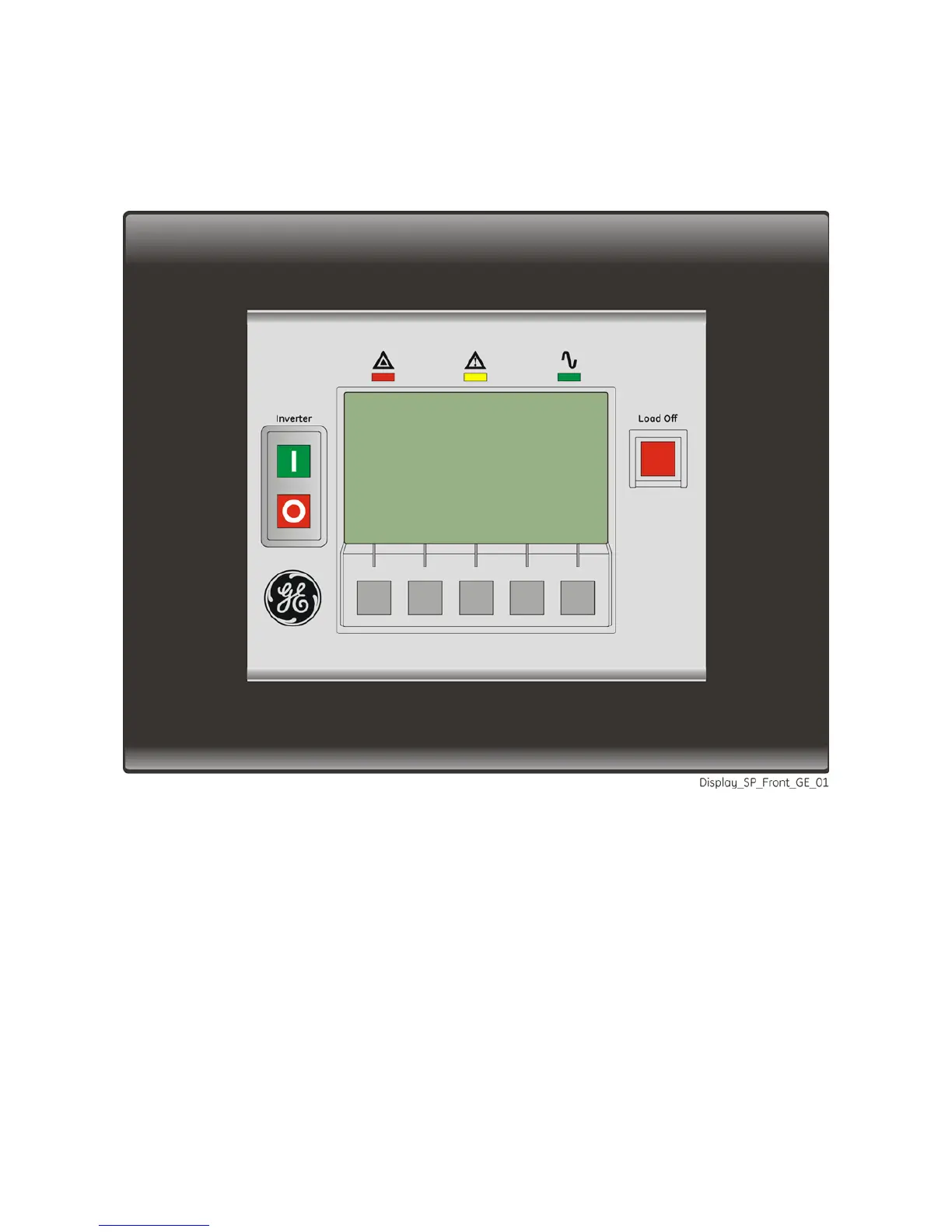

Fig. 6.1-1 Control panel
The control panel, positioned on the UPS front door, acts as the UPS user interface and comprises of the
following elements:
• Back lit Graphic Display (LCD) with the following characteristics:
− Multilanguage communication interface:
English, German, Italian, Spanish, French, Finnish, Polish, Portuguese, Czech, Slovakian, Chinese,
Swedish, Russian and Dutch;
− Synoptic diagram indicating UPS status.
• Command keys and parameters setting.
• UPS status control LED.
