OPM_SPE_XXX_10K_40K_8GB_V020.doc Operating Manual SitePro 10-15-20-30-40 kVA / S8
7.3 ALARMS
The ALARMS mode is entered any time the “ALARM” key is pressed.
The LCD will display a series of screens corresponding to the last 255 events, two events per screen
(LEVEL 1 USER).

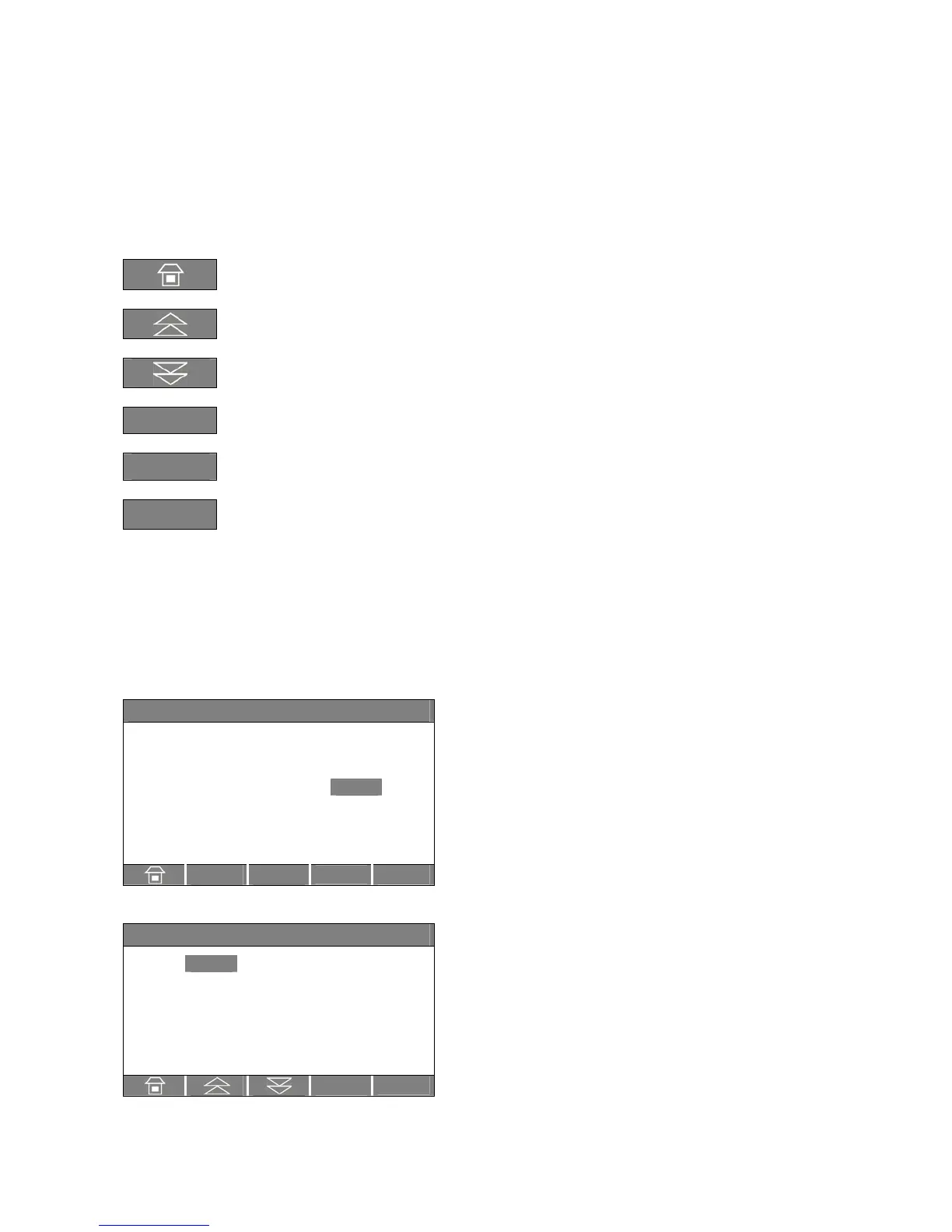

In this mode the keys perform the following functions:
Return to HOME screen.
Scrolls backward to the previous screen.
Scrolls forward to the next screen.
U
Move forward to the following event.
V
Move back to the following previous event.
Confirm the selection made.
It is possible to view any key functional description by pushing the key for more than 3 seconds.
The events displayed are the standard GE events as described in the Section 7.3.1 - EVENTS (Alarms
and Messages).
`Home\ Alarm
ALARM
LEVEL 1 : USER
LEVEL 2 : SERVICE
V
Alarms screen
LEVEL 1 USER
Chronologically view 2 events per screenshot.
LEVEL 2 SERVICE
Chronologically view 5 events per screenshot with service
related info.
`Home\Alarm\User
NR = 255 01.06.2007 15.37.25
C = 4404 K6 CLOSING FAILURE
S = 00008180
NR = 254 03.06.2007 12.45.57
C = 4583 COMMAND TO SYNCHRONIZE
S = 00008180
U
V
Screen of user alarms
NR Number chronologically assigned to an event (Nr.
255 is the more recent, Nr. 1 is the first).
Date and exact hour of the moment when the event
occurred.
C Number of standard GE code of the event and an
explicit text describing the event in the selected
languages.
S Status code of the UPS.
