8-6 869 MOTOR PROTECTION SYSTEM – COMMUNICATIONS GUIDE
THE IEC 61850 CONFIGURATOR CHAPTER 8: IEC 61850
OFFLINE SETTINGS FILE

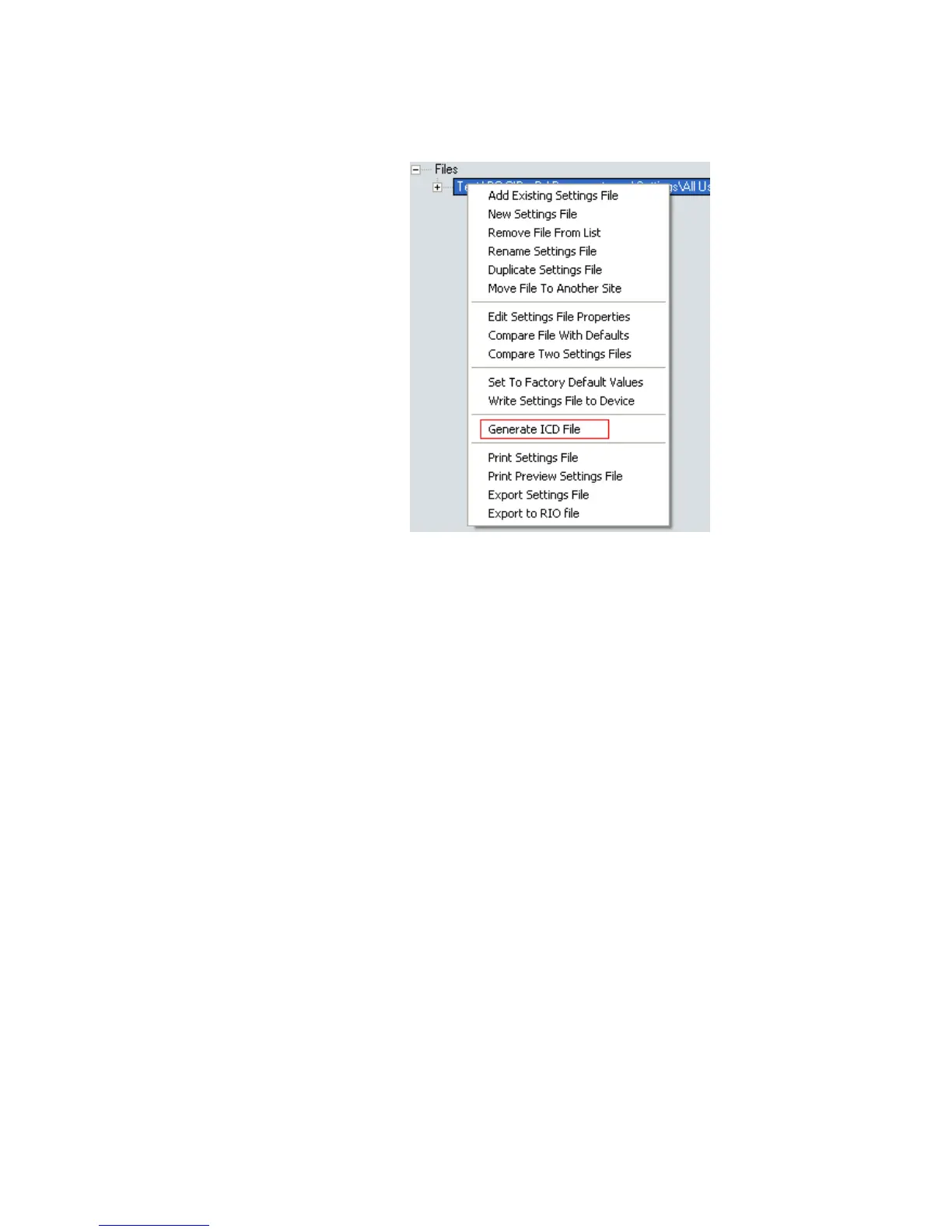

The Generate ICD file menu option generates a default ICD file with the respective order
code option and saves the file to the path the user has selected previously.
IEC 61850 Configurator Details
The IEC61850 Configurator allows the user to edit all sections of the IEC61850 CID and ICD
file. The user cannot perform any other operations in the EnerVista 8 Series Setup
software
if the IEC 61850 Configurator is open. The user must close the IEC61850 session to perform
other operations in the EnerVista software.
The IEC 61850 configurator consists of five sections:
•ICD/CID
• Settings
•Reports
•GOOSE Reception
• GOOSE Transmission
