8-8 869 MOTOR PROTECTION SYSTEM – COMMUNICATIONS GUIDE
THE IEC 61850 CONFIGURATOR CHAPTER 8: IEC 61850
server.

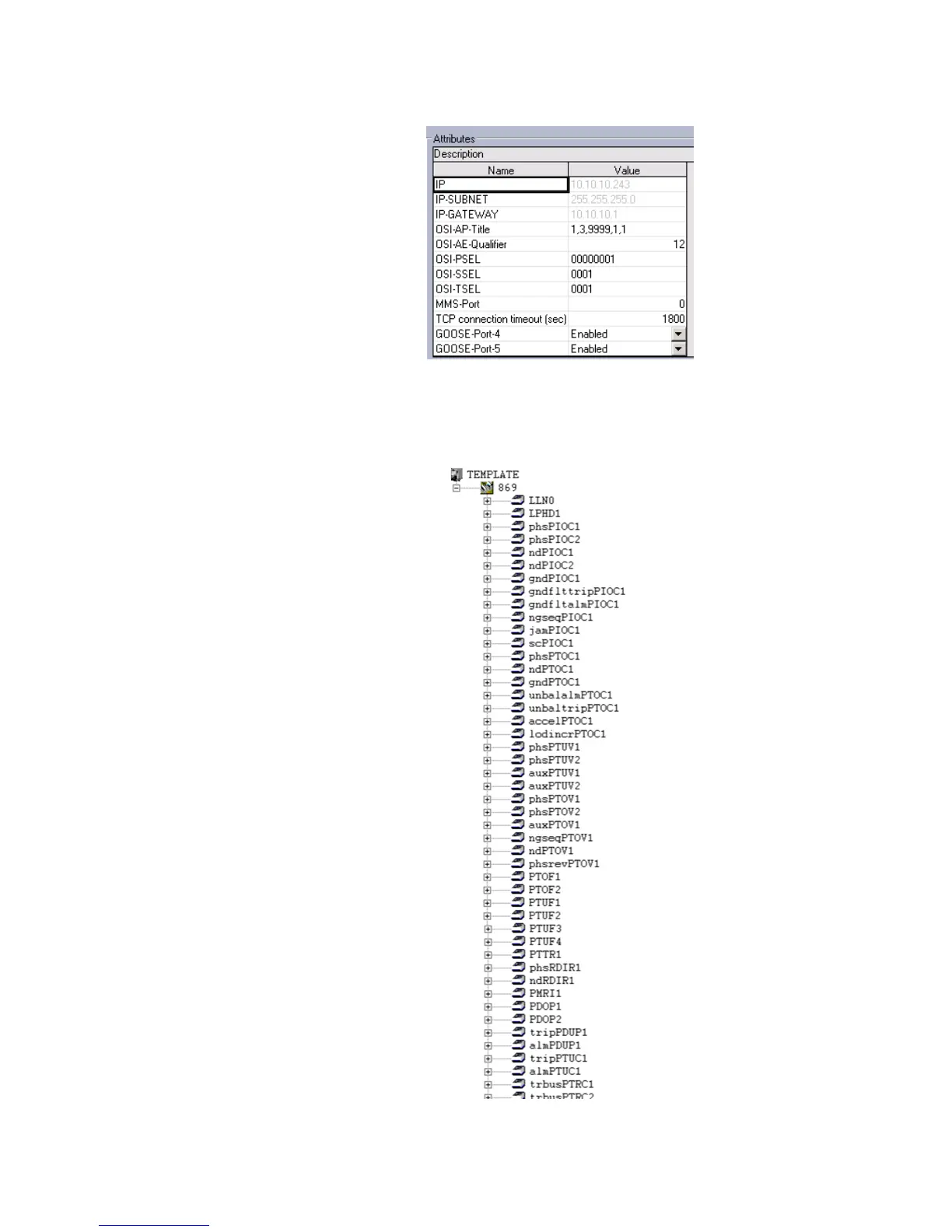

GOOSE Transmission on port -4 and port-5 (which are the 2 fiber optic ports available)
is configurable. The user can choose either port or both of the ports for GOOSE
transmissions and receptions. The logical nodes displayed under the GEDevice >
869
tree (see figure below) are shown based on the order code. If a particular order
code does not support certain protection and control functions, the respective logical
node is not shown in the list.
