CHAPTER 8: IEC 61850 THE IEC 61850 CONFIGURATOR
869 MOTOR PROTECTION SYSTEM – COMMUNICATIONS GUIDE 8-23

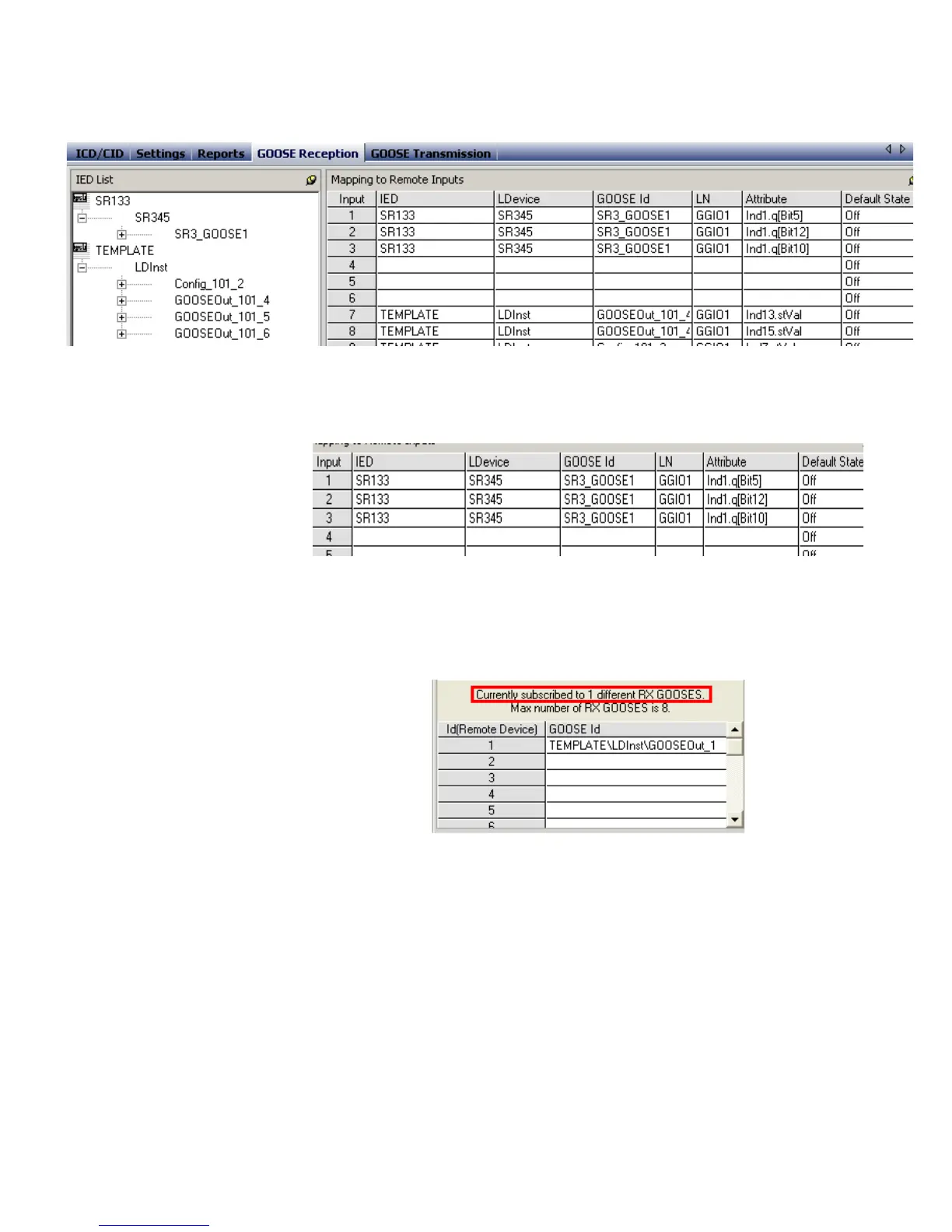

Figure 8-22: Mapping to Remote Inputs
Delete a Dataset Item
• Select the row in which the dataset item is being deleted then right click and select the
“Delete Entry” button.
Figure 8-23: Delete a Dataset Item
IED Count
Depending on the configured dataset items for IEDs, the IED count increases
automatically. In addition, the ”GOOSE Id” field is updated with the GOOSE ID of the
subscriber relay.
Figure 8-24: IED Count
