GE AK-1-15 Maintenance Manual

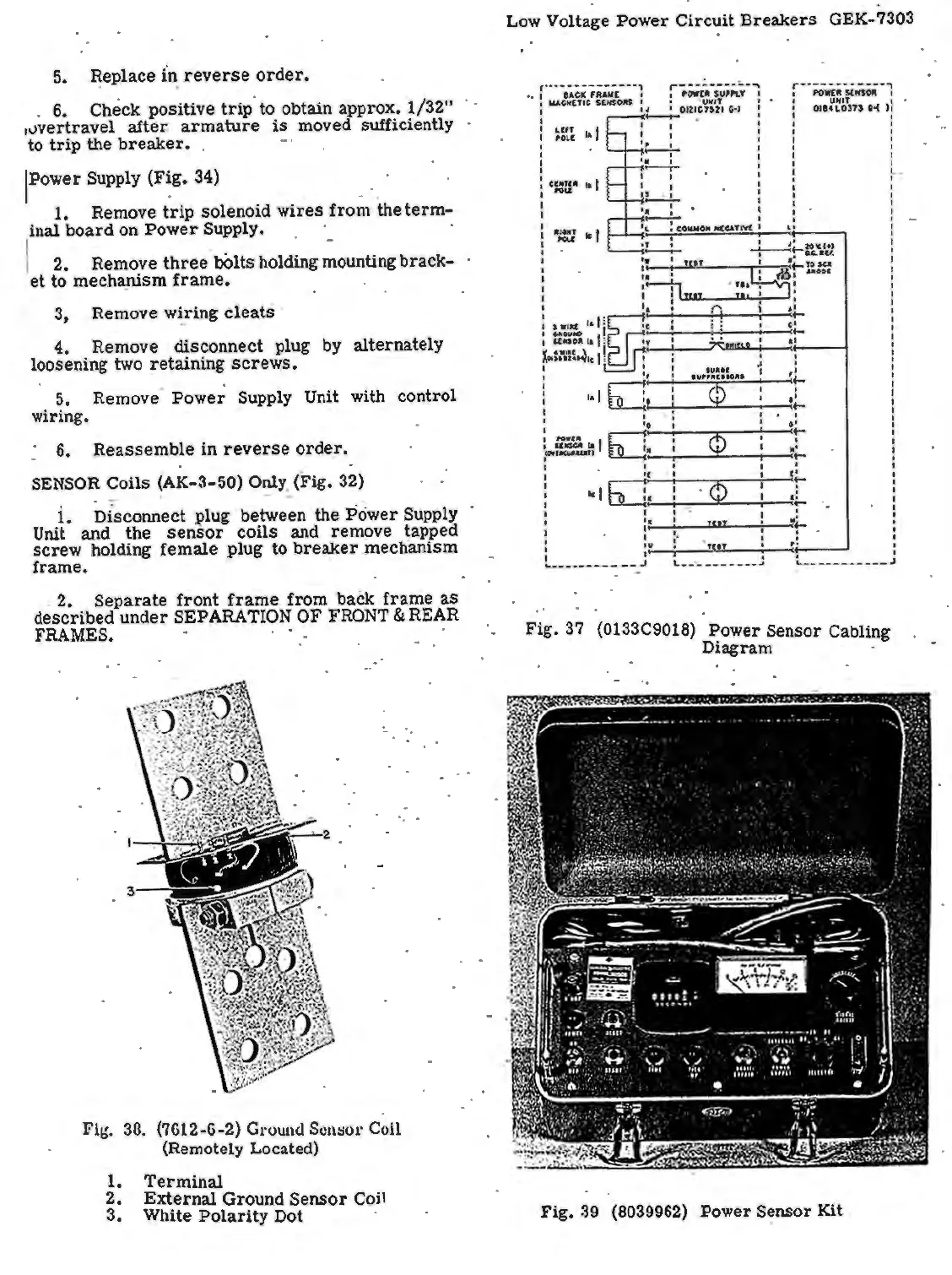

5. ~eplace i°: reverse order.
. 6. Check positive trip to obtain approx. 1/32"
,-,vertravel after armature is moved sufficiently
to
trip the breaker.
!Power Supply (F~g. 34) .
1. Remove trip solenoid wires from the term-
inal board on Power Supply. · ·
I 2. Remove three boltsholdingmountingbrack-
et to mech~sm frame.
3, Remove w~ring cleats
4. Remove disconnect plug by alternately
loosening two retaining screws.
5. Remove· Power Supply Unit with control
wiring.
6.
Reassemble in reverse order.
SENSOR Coils (AK-3-50) Only_ (Fig. 32)
1. Disconnect J_>lug between the Power Supply
Unit and
the sensor coils and rempve tapped
screw holding female plug to breaker mechanism
frame •
. 2.
Separate front frame from back frame as
described under SEPARATION OF FRONT & REAR
FRAMES.
:.
Fit;. 38. (7612-6-2) Grow1d Sensor Coil
(Remotely Located)
1.
Terminal
2. External Ground Sensor Con
3. White
Polarity Dot
Low Voltage
Power Circuit Breakers GEK-7303
Fig. 37 (0133C9018} Power Sensor Cabling
Diagram ·
Fig. 39 (8039962) Power Sensor Kit
