3-12 ApexPro™ 2001989-301A- draft 1
Equipment setup
411A

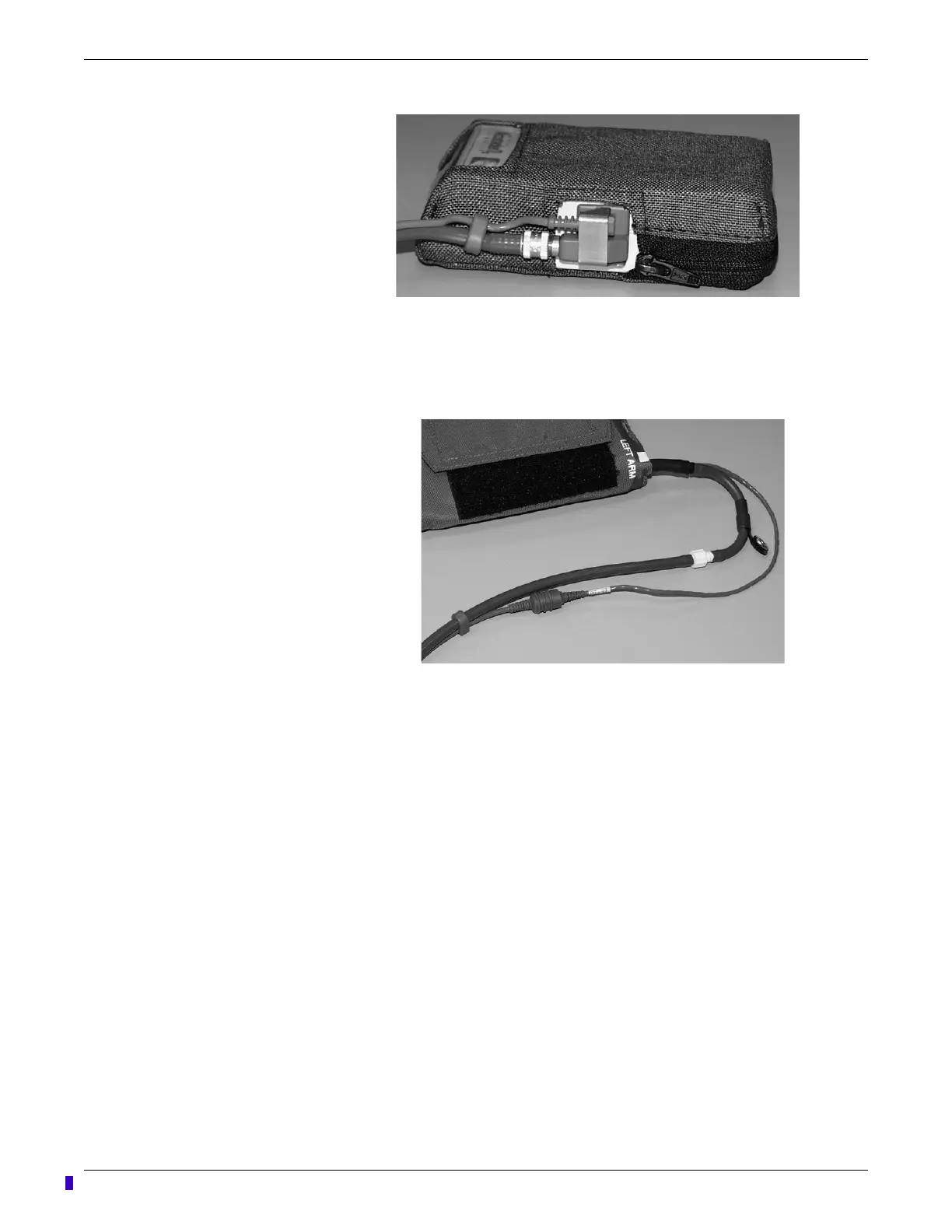

4. Attach the blood pressure cuff hose to the white plastic fitting on the patient
cable. Turn the fitting to the right approximately one quarter turn. Some
connector models will click when they are connected. Make sure that it is
securely tightened. Then plug the 3-pin microphone connector into the 3-pin
connector on the microphone cable.
404A
5. Connect the 5-pin end of the interface cable to the inside 5-pin INTFC connector
on the transmitter (labeled 2 on its dust cover). The interface cable is already
connected to the blood pressure monitor because it is a branch of the patient
cable. Ensure that the transmitter’s patient leadwires are properly connected. The
leadwires must be connected for telemetry transmission of NBP data.
NOTE
Use a microphone pad to maintain the best microphone position.
Use a cuff anchor to maintain the blood pressure cuff’s position.
Advise the patient not to shower or bathe while being monitored.
