31-5000275 Rev. 5 7

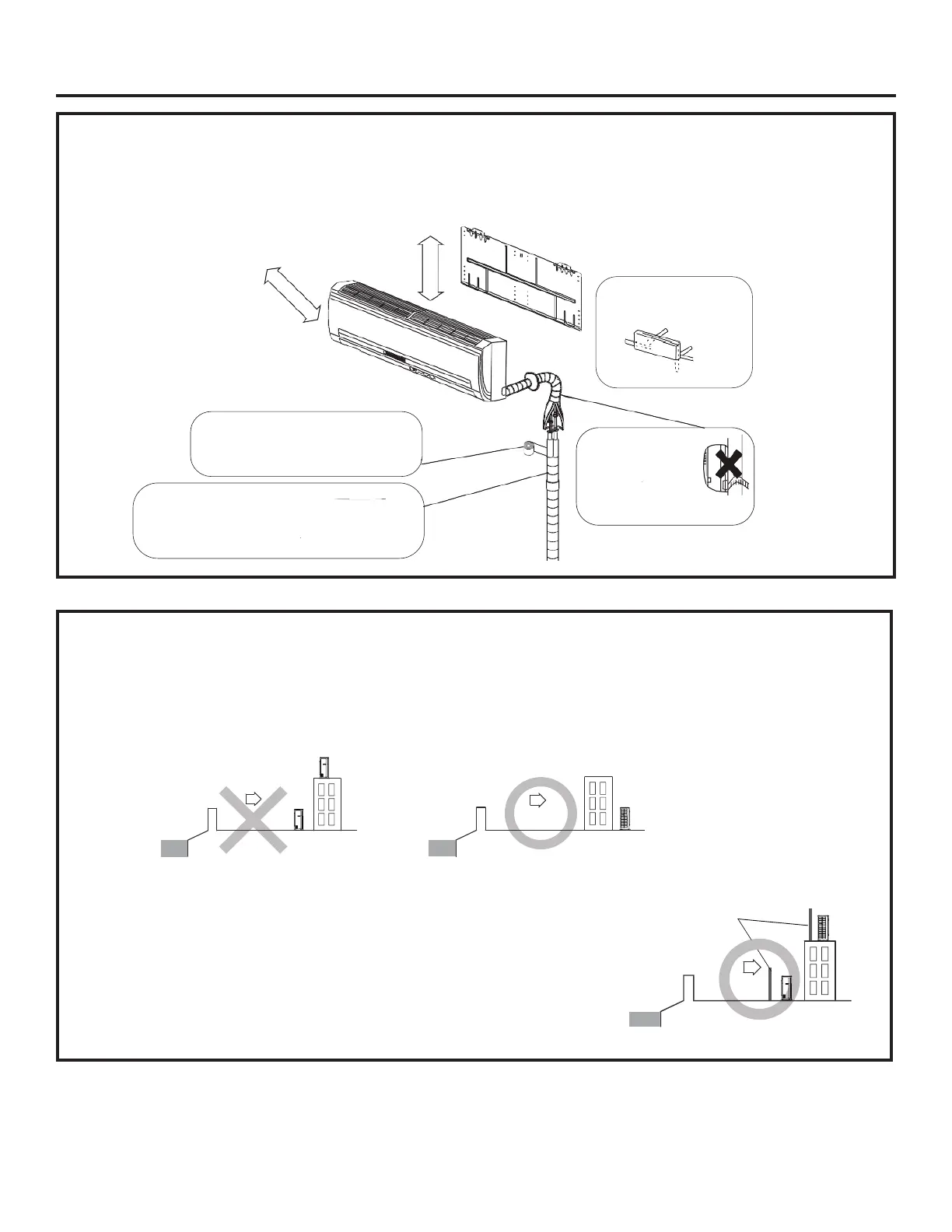

INDOOR CLEARANCES
(Appearance may vary)
This picture is for reference only. Your product may look different.
SALTWATER COAST INSTALL
• The outdoor unit should be installed at least ½ mile away from the salt water, including seacoasts and inland
waterways. If the unit installed from ½ mile to 5 miles away from the salt water, including seacoasts and inland
waterways, please follow the installation instruction below.
• Install the outdoor unit in a place (such as near buildings etc.) where it can be protected from sea breeze which
can damage the outdoor unit.
• If you cannot avoid installing the outdoor unit by the seashore, construct a protection wall around it to block the
sea breeze.
• A protection wall should be constructed with a solid material to block the sea
breeze. The height and the width of the wall should be 1.5 times larger than
the size of the outdoor unit. Also, allow at least 28” (700mm) between the
protection wall and the outdoor unit for air circulation to ventilate.
• Install the outdoor unit in a place where water can drain.
• If the above conditions cannot be met, contact GE Appliances for assistance.
ODU
ODU
Sea breeze
Sea
ODU
Sea breeze
Sea
ODU
Sea breeze
ODU
More than 4 inches
More than 4 inches
Rear right
Left
Wrap the insulation pipe with
the �nishing tape from the
bottom to top.
Below
Rear left
Arrangement of
piping directions
Right
Cut thermal insulation pipe to an
appropriate length and wrap it with
tape, making sure that no gap is left in
the insulation pipe’s cut line.
Condensate piping
must have a
downward slope of at
least 1/4" per foot for
proper drainage.
Installation Instructions
