OUTDOOR TECHNICAL OVERVIEW

ENGLISH

Topic Title

B-22

DIP Switch Settings

Description SW5-1 SW5-2 SW5-3 SW5-4 SW5-5 SW5-6 SW5-7 SW5-8

Heat pump OFF* ---- ---- ---- ---- ---- ---- ----

Cooling only ON ---- ---- ---- ---- ---- ---- ----

Defrost temp. selection (used for mild weather

defrost)

---- OFF* ---- ---- ---- ---- ---- ----

Defrost temp. selection (used for severe weather

defrost)

---- ON ---- ---- ---- ---- ---- ----

Power input restrict invalid ---- ---- OFF* ---- ---- ---- ---- ----

Power input restrict valid ---- ---- ON ---- ---- ---- ---- ----

ASH220NCDWA ---- ---- ---- OFF ON ON ---- ----

ASH324NCDWA ---- ---- ---- ON ON OFF ---- ----

Factory use only ---- ---- ---- ---- ---- ---- OFF* ----

Factory use only ---- ---- ---- ---- ---- ---- ON ----

Quiet operation valid ---- ---- ---- ---- ---- ---- ---- OFF*

Quiet operation invalid ---- ---- ---- ---- ---- ---- ---- ON

Note:

1. Power input restrict selection: OFF-invalid; ON-valid(≤3500W)

2. Quiet operation: If OFF, the outdoor unit will calculate and obtain the average ambient temperature of the unit within the

last 24 hours, Tao_average_24. Then compare the current ambient temperature with the ambient temperature average

Tao_average_24, and combine it with the previous ambient temperature trend to determine whether it can enter Quiet

operation (low compressor speed and low O.D. fan speed).

SW5 SW7SW6

SW5 DIP Switch Settings

*Factory Default Setting

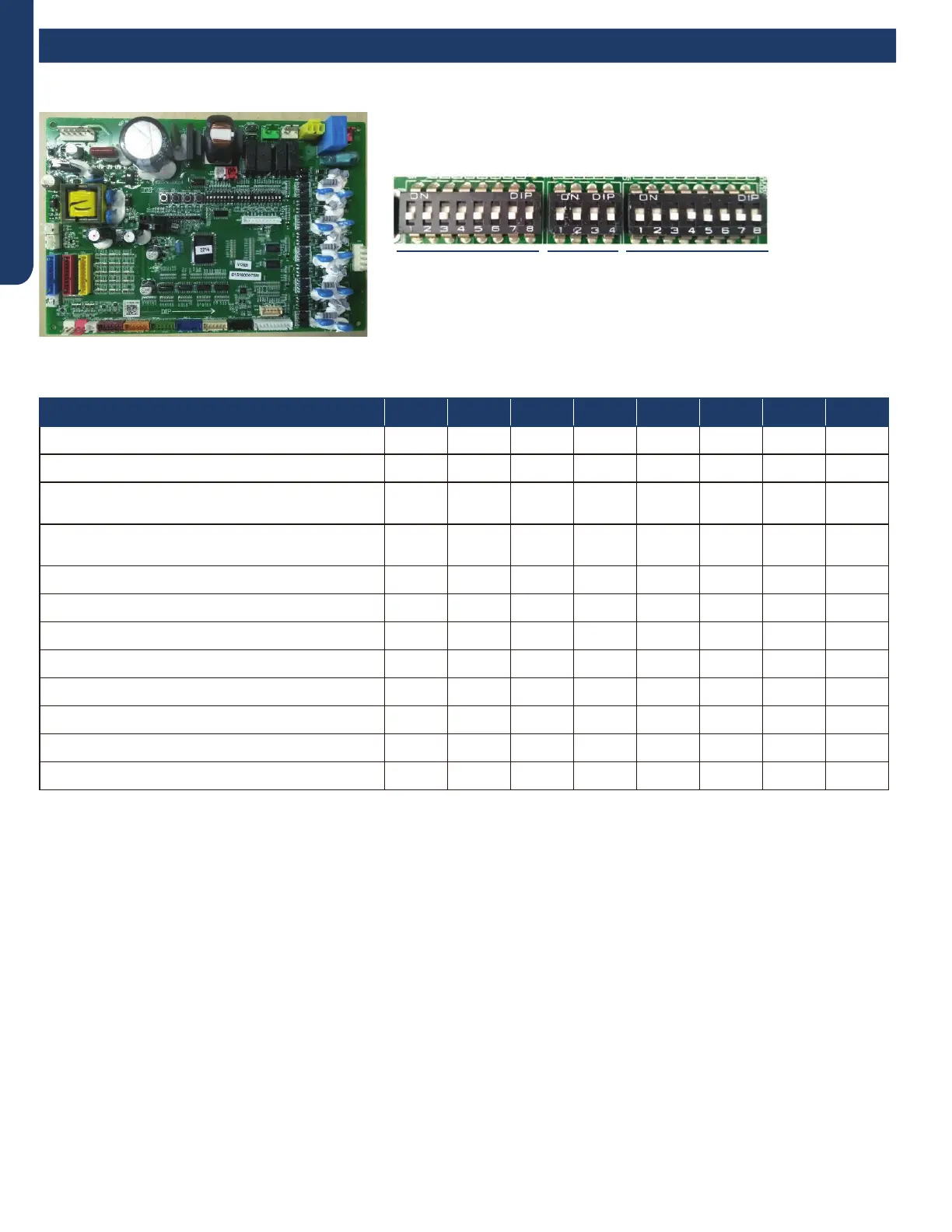

WJ26X25053 - Outdoor Power Control Board DIP Switch Settings

GE ASH220NCDW User Manual
