Specifications
ASYW07URDWA ASYW09URDWA ASYW12URDWA ASYW18URDWA
Rated Cooling Capacity Btu/hr 7,000 9,000 12,000 19,000
Rated Heating Capacity Btu/hr 10,000 12,000 16,500 20,400
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
AirowCFM
(Turbo/H/M/L/Quiet)
420/360/300/240/180 470/410/350/290/230 440/410/380/311/260 710/650/560/440/410
Indoor Sound dB
(Turbo/H/M/L/Quiet)
42/39/37/28/23 42/39/37/28/23 42/39/37/28/23 49/47/42/36/34
Dimension: H x W x D in (mm)
12 1/4 x 35 3/8 x 8 1/4
(310 x 900 x 210)
12 1/4 x 35 3/8 x 8 1/4
(310 x 900 x 210)
12 1/4 x 35 3/8 x 8 1/4
(310 x 900 x 210)
14 3/8 x 43 7/8 x 9 5/8
(336 x 1115 x 243)
Weight(Ship/Net)-lbs(kg) 30.9/25.3 (14/11.5) 30.9/25.3 (14/11.5) 30.9/25.3 (14/11.5) 45.4/37.5 (20.6/17)
Liquid /Suction O.D. in 1/4 3/8 1/4 3/8 1/4 3/8 1/4 1/2
AD07SL2VH(-) AD09SL2VH(-) AD12SL2VH(-) AD18SL2VH(-)
Rated Cooling Capacity Btu/hr 7,000 9,000 12,000 18,000
Rated Heating Capacity Btu/hr 8,000 10,000 13,000 19,000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
AirowCFM(Turbo/H/M/L/Quiet) 353/312/270/230/188 353/312/270/230/188 400/353/282/247/218 540/500/447/365/306
Max. Ext. Static Pressure
in.W.G(Pa)
0.16 (40) 0.16 (40) 0.16 (40) 0.16 (40)
Indoor Sound dB
(Turbo/H/M/L/Quiet)
35/33/29/26/21 35/33/29/26/22 38/35/29/26/23 31/29/23/29/25
Dimension: HxWxD in (mm)
7 5/16 x 33 7/16 x16 9/16
(185x850x420)
7 5/16 x 33 7/16 x16 9/16
(185x850x420)
7 5/16 x 33 7/16 x16 9/16
(185x850x420)
7 5/16 x 46 1/16 x16 9/16
(185x1170x420)
Weight(Ship/Net)-lbs(kg) 47.2/36.8 (21.4/16.7) 47.2/36.8 (21.4/16.7) 47.2/36.8 (21.4/16.7) 61.8/48.5 (28/22)
Liquid / Suction O.D. in 1/4 3/8 1/4 3/8 1/4 3/8 1/4 1/2
Drainpipe Size O.D. in 1 1/4 1 1/4 1 1/4 1 1/4
Condensate Pump Standard Standard Standard Standard
Max. Drain-Lift height in(mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)
Highwall Indoor
Ducted Indoor

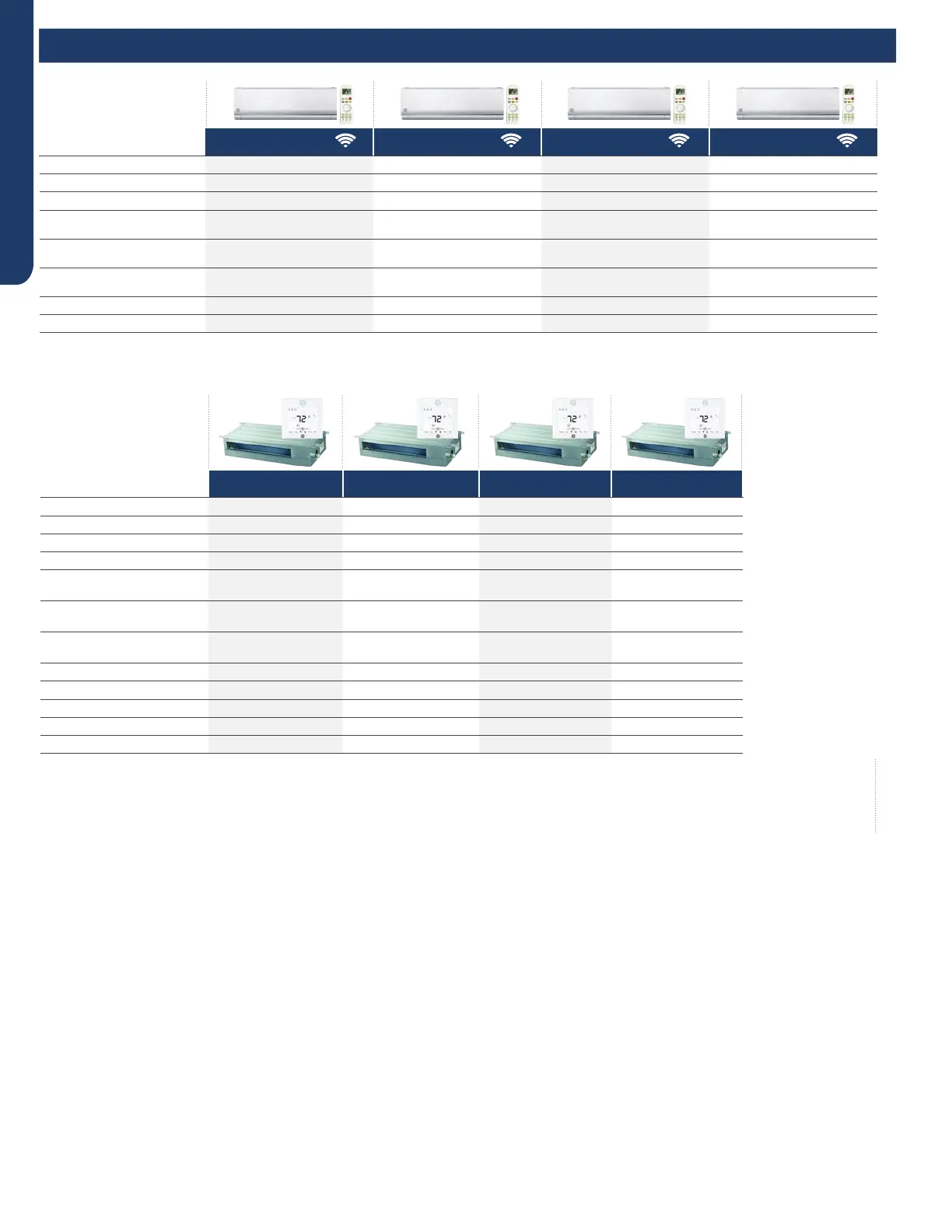

GE ASH220NCDW Specifications

General

Brand	GE
Model	ASH220NCDW
Category	Heat Pump
Language	English
