GE ASH220NCDW - Board Replacement; Removing Fan Motor; Removing the Condensate Pump

MID-STATIC DUCTED TECHNICAL OVERVIEW
ENGLISH
Topic Title
G-10
Testing

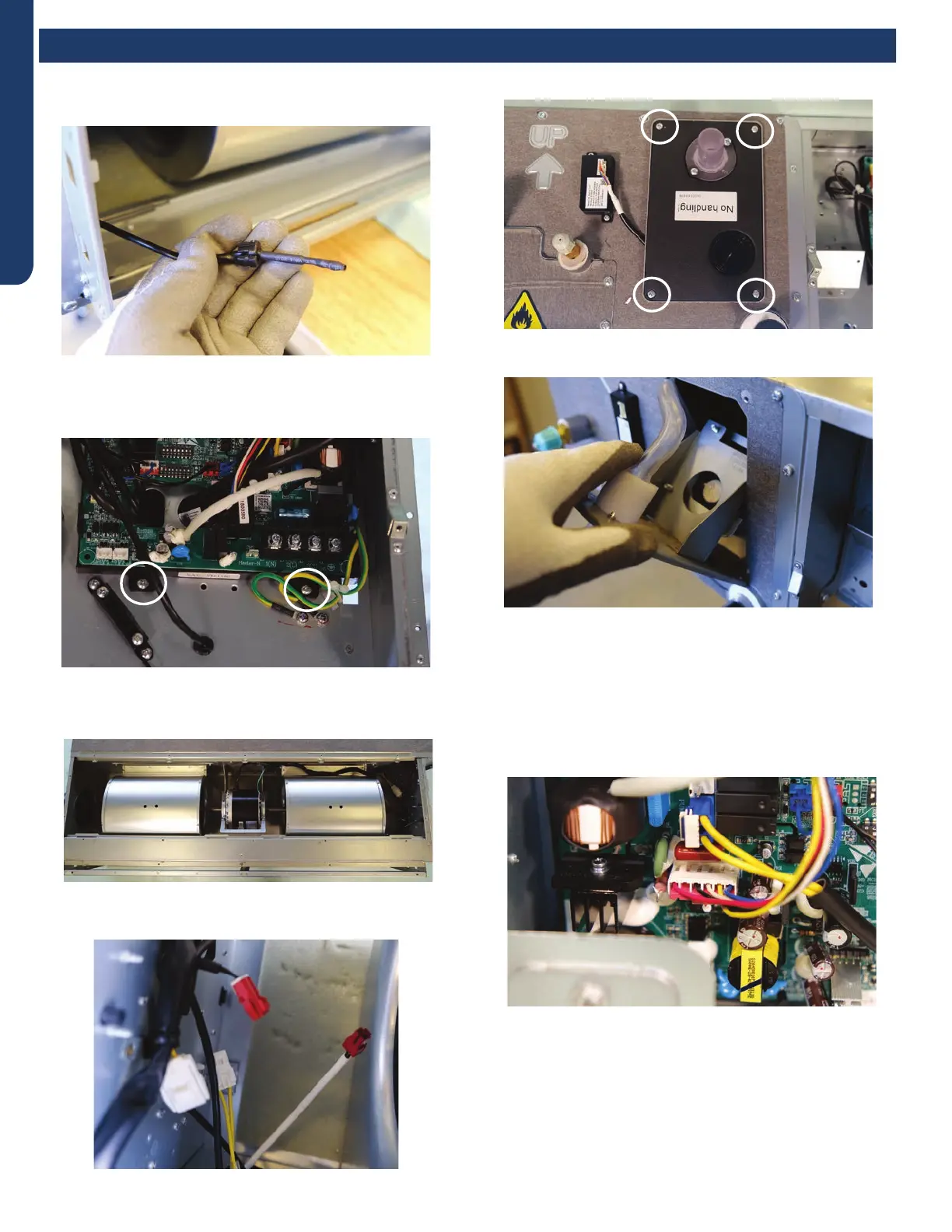

Board Replacement
1. Remove the ambient sensor.
Removing the Condensate Pump
1. Remove the air inlet cover.
2. Unplug all connectors from the board.
3. Remove the 2 board mounting screws and remove the
board.
2. Unplug the pump motor and oat switch wires from within
the air inlet
3. Remove the 4 screws holding the pump in place.
4. Tilt the pump out from the top and pull out
5. Pull wires through rubber grommets and remove pump
assembly
Removing Fan Motor
1. Remove control board cover.
2. Unplug motor wires.
