GE ASH220NCDW User Manual

SLIM DUCT TECHNICAL OVERVIEW
ENGLISH
Topic Title
F-5
Ductwork / Grilles

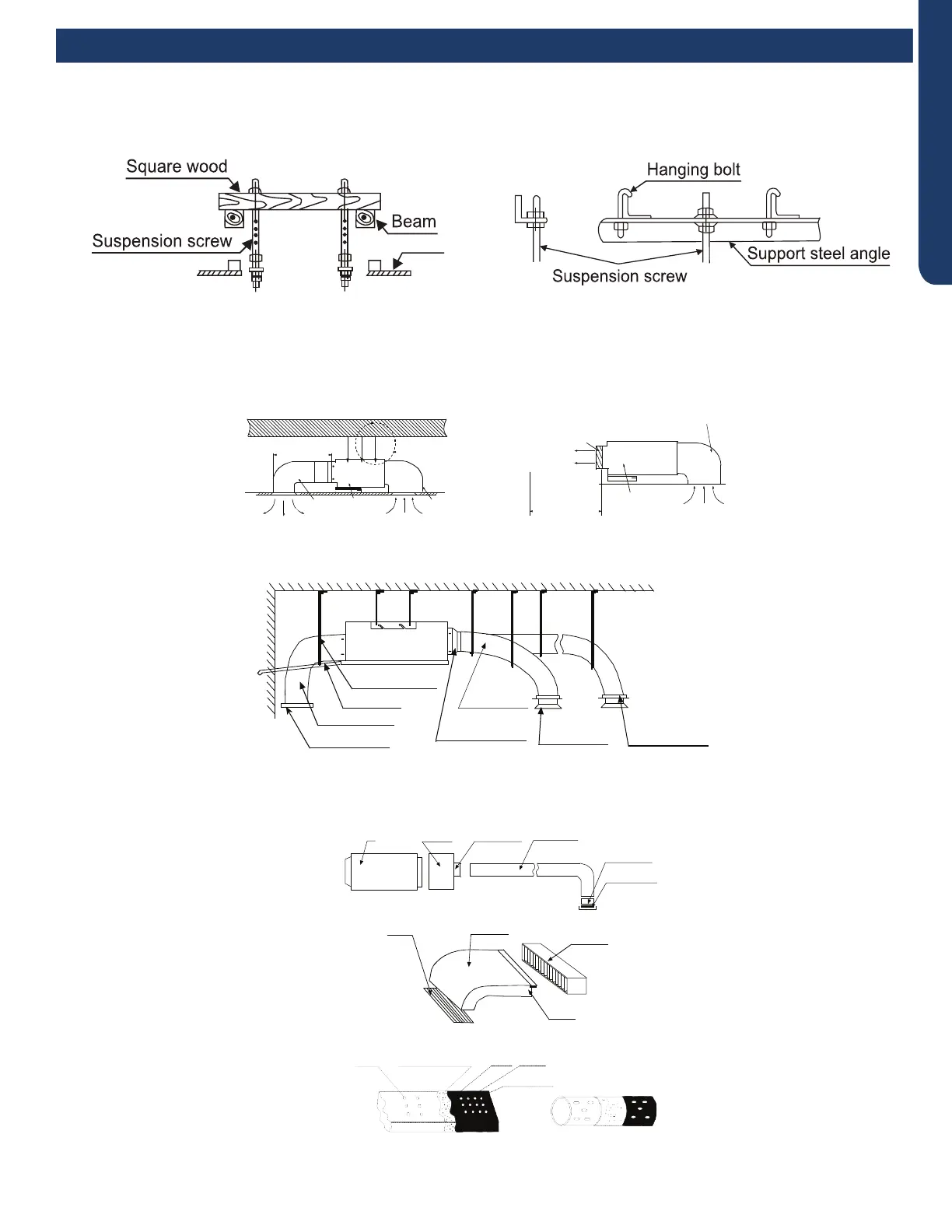

Ductwork Installation
Use rivet to connect the
air return duct on the air
return inlet of the indoor
unit, then connect the
other end with the air
return
Indoor unit
Soft
connection
or static
box
Transition
duct
Rounded
duct
Tie-in of air
distribution
Air distribution
Air return blind Air return duct
Indoor unit
Rivet
gluey nail
heat
preservation cotton
tinfoil
gluey nail cap
adhesive tape
Roof Installation
Ceiling
Air supply
Unit
Return air
Return air box
Roof
Air outlet grill
Air supply
Unit
Return air box
Return air
Long Duct
Suspending hook
Drain pipe
Air return duct
Air return blind
Air out duct
Transition duct
Tie-in of air
Distribution
Air distribution
Basic Duct Congurations
Here are the typical duct congurations that can be used with the unit.
