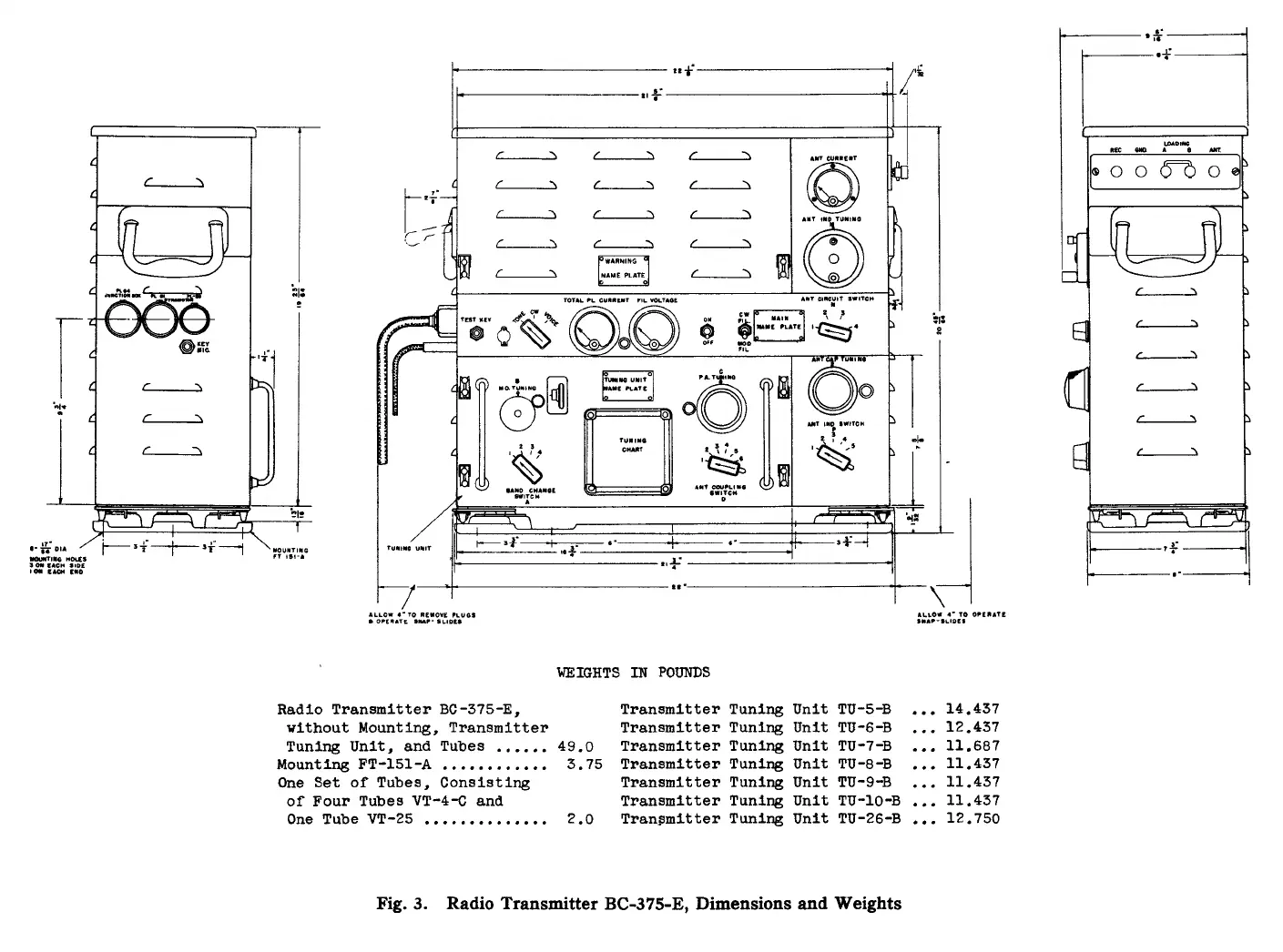

GE BC-375-E - Fig. 3. Radio Transmitter BC-375-E, Dimensions and Weights

• LLOW  TO OPERATE
SNAP-SLIDES
a Low •- TO REMOVE PLUGS
• OPERATE SIM, SLIDES
WEIGHTS IN POUNDS
Radio Transmitter BC-375-E,
without Mounting, Transmitter
Transmitter Tuning Unit
Transmitter Tuning Unit
TU-5-B 
...
TU-6-B
14.437
12.437
Tuning Unit, and Tubes

49.0
Transmitter Tuning Unit TU-7-B
11.687
Mounting FT-151-A
 3.75
Transmitter Tuning Unit
TU-8-B
11.437
One Set of Tubes, Consisting
Transmitter Tuning Unit TU-9-B  ...
11.437
of Four Tubes VT-4-C and
Transmitter Tuning Unit
TU
- 10-B  ...
11.437
One Tube VT-25  2.0 Transmitter Tuning Unit
TU-26-B 12.750
Fig. 3. Radio Transmitter BC-375-E, Dimensions and Weights
