GE BC-375-E - Fig. 16. Antenna Tuning Unit BC-306-A, Dimensions and Weights

GE BC-375-E
34 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
RANS
A
ANT
6
GND
6'
4 MOUNTING HOLES
FORKS FL HD SCREWS
MOUNTING
FT-142
9
Weight of Antenna Tuning Unit
BC-306-A Less Mounting
9.062 lb
Weight of Mounting FT-142
0.687 lb

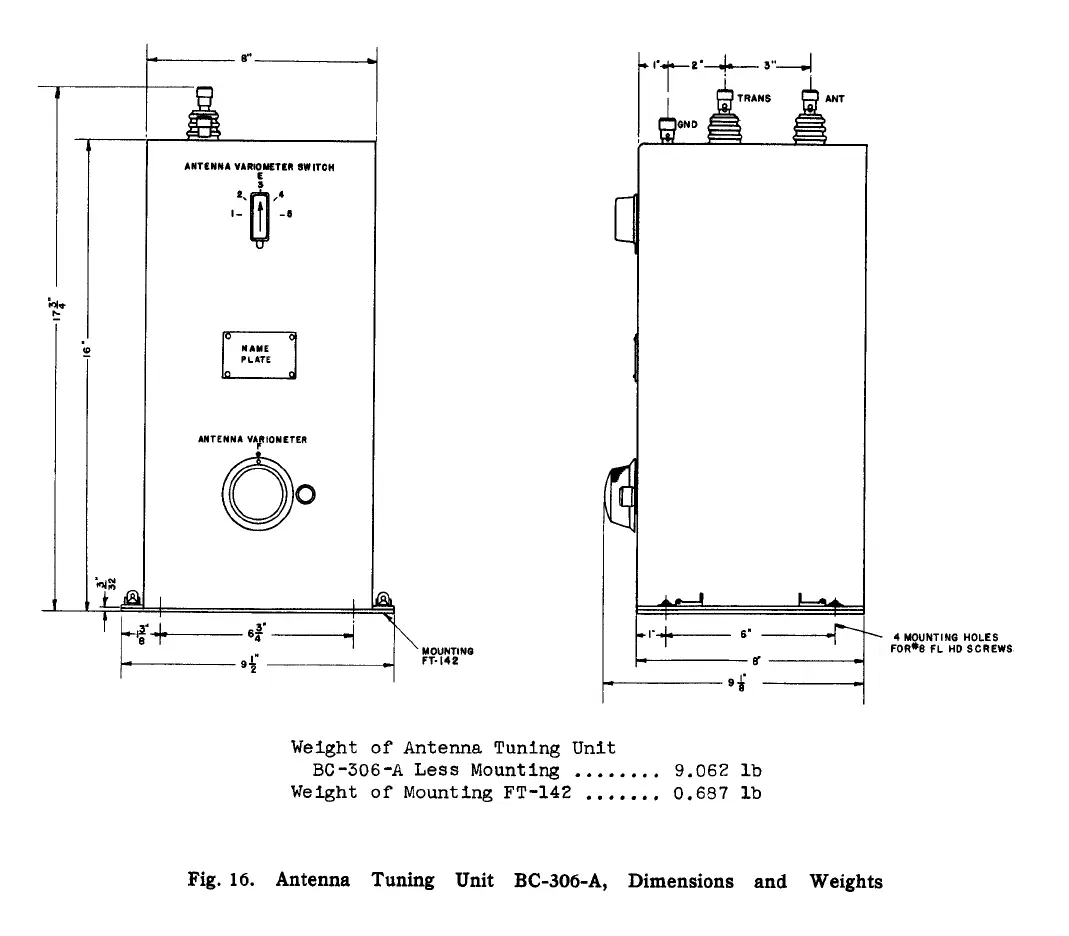

Fig. 16. Antenna Tuning Unit BC-306-A, Dimensions and Weights
