6 II
E
--
607
608
B 61+
6 I 2
FRONT
1
827
FRONT
Ct
-
Tr
START (BLACK)
TAP*I (BLUE )
TA P *2
k
liIROWN)
TAP*3 GREEN)
TAP*4 RED)
TP*5 (ORANGE),
F
INISH (ORANGE/BLACK)
CABLE THESE LEADS
TOP \
X
I
609
J
X
622
THIS CAPACITOR LOCATED
UNDER SYMBOL 807
IX
S
START
THIS CAPACITOR IS MOUNTED
UNDER SYMBOL 627
S
0
TOP OF COIL
ill
5-w
1
01 _II W
.O\
629
NOTE
THERE. SHALL BE NO SHARP
POINTS LEFT AFTER
UNIT
IS WIRED EITHER FROM LUMPS OF SOLDER
OR IRREGULARLY CUT WIRE ENDS.
WIRE
TO
BE
FASTENED MECHANICALLY TO
TERMINALS BEFORE SOLDERING
USE ROSIN CORE SOLDER 820 D3C
SYMBOL
NAME OF UNIT
601
MO TANK INDUCTANCE
602
MO BAND CHANGE SWITCH
603
MO FIXED TANK CAPACITOR
607
MO VARIABLE TANK CAPACITOR
608
PA GRID CHOKE
609
PA GRID BLOCKING CAPACITOR
610
MO GRID BLOCKING CAPACITOR
611
MO GRID CHOKE
812
NEUTRALIZING CAPACITOR
613
MO COMPENSATING CAPACITOR
114
PkGRID PARASITIC RESISTOR
621
PA TANK INDUCTANCE
622
PA BAND CHANGE SWITCH
623
PA FIXED TANK CAPACITOR
627
PA VARIABLE TANK CAPACITOR
628
ANTENNA COUPLING COIL
629
ANTENNA COUPLING SWITCH
co“..m.
SIZE OF CONNECTOR
M
UNIT PIECE OF APPARATUS
gr
'acca
.102 DIA COPPER WIRE TINNED
NOTE' AT POINTS MARKED" X" USE TERM V
-
1444451
" E"
K
-
7872305
K
-
787 2 831
0
•
" W "
K
-
7872368
" S " SOLDER COMPLETE JOINT TOGETHER

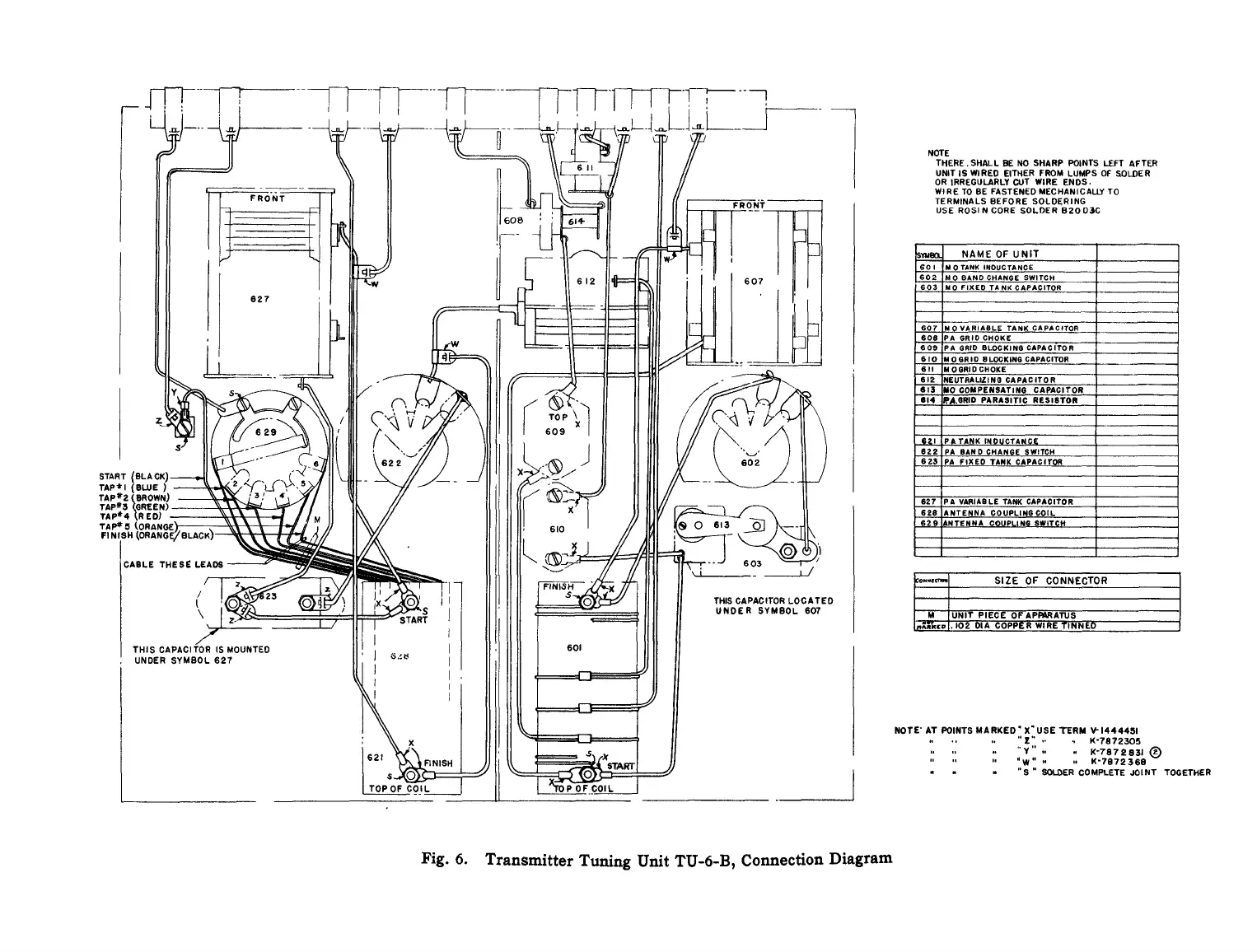

Fig.
6.
Transmitter Tuning Unit TU-6-B, Connection Diagram
