3300 System Installation Manual
6

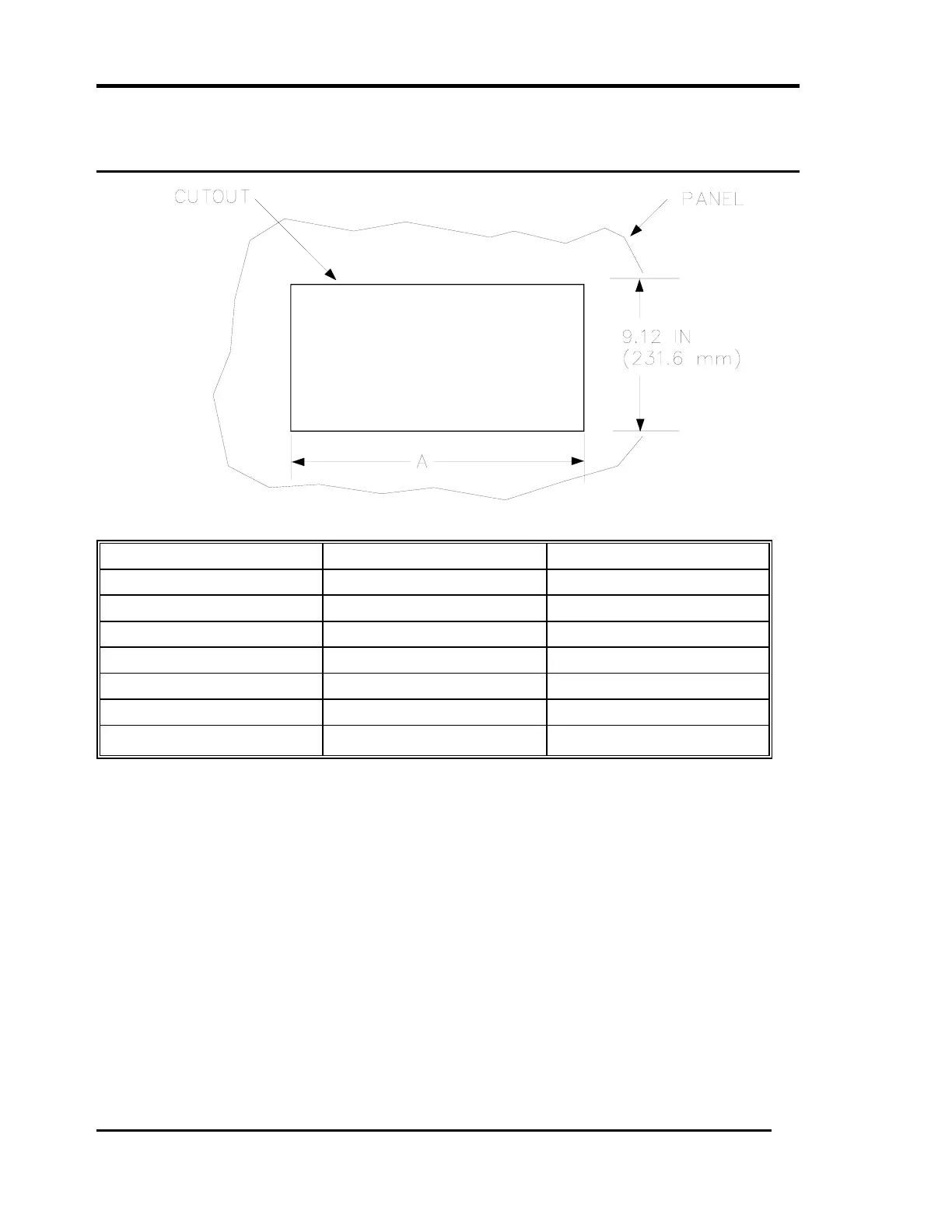

6. PANEL CUTOUT DIMENSIONS
OPTIONS RACK SIZE A
01,11,21,31 4 POSITIONS 8.56 IN. (217.5 mm)
01.12.22.32 6 POSITIONS 12.57 IN (319.3mm)
03,13,23,33 8 POSITIONS 16.57 IN. (420.8mm)
04,14,24,34 10 POSITIONS 20.58 IN (522.7 mm)
05,15,25,35 12 POSITIONS 24.58 IN (624.3 mm)
06,16,26,36 14 POSITIONS 28.59 IN (726.2 mm)
07,17,27,37 8 POSITIONS SEE SECTION 5
NOTE
The dimensions specified for "A" in the table above refer to the case where a panel is
being cut out for the rack only and not for the weatherproof housing. The panel cutout
dimensions for the weatherproof housing are specified in the "Tabulated Data" table in
section 7 under the "E" column.
