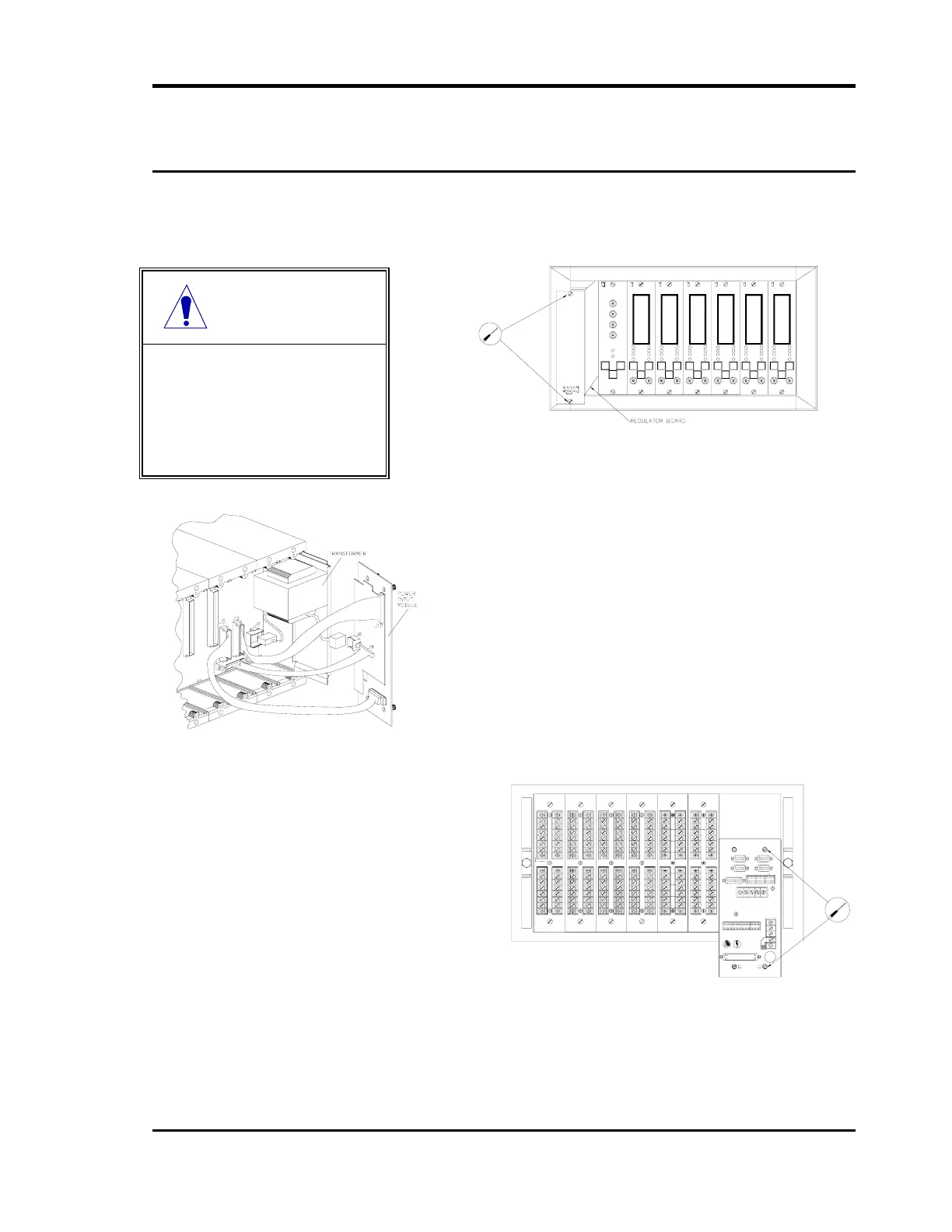

8. POWER SUPPLY INSTALLATION
For systems with the AC Power Supply, perform the following steps. For systems with the
DC Power Supply, perform the steps on the following page.
1. Slide Power Supply into rack and fasten two
screws.
2. Slide the transformer assembly into the rack.
Fasten the screw that mounts the support plate to
the rack side panel. Connect cables to backplane
and Power Input Module as shown.
3. Connect cables from backplane to Power Input
Module as shown.
4. Place Power Input Module in position at rear of rack. Fasten retaining screws.
WARNING
High voltage present
could cause shock,
burns, or death.
Do not touch exposed
wires or terminals.
