3300 System Installation Manual
14

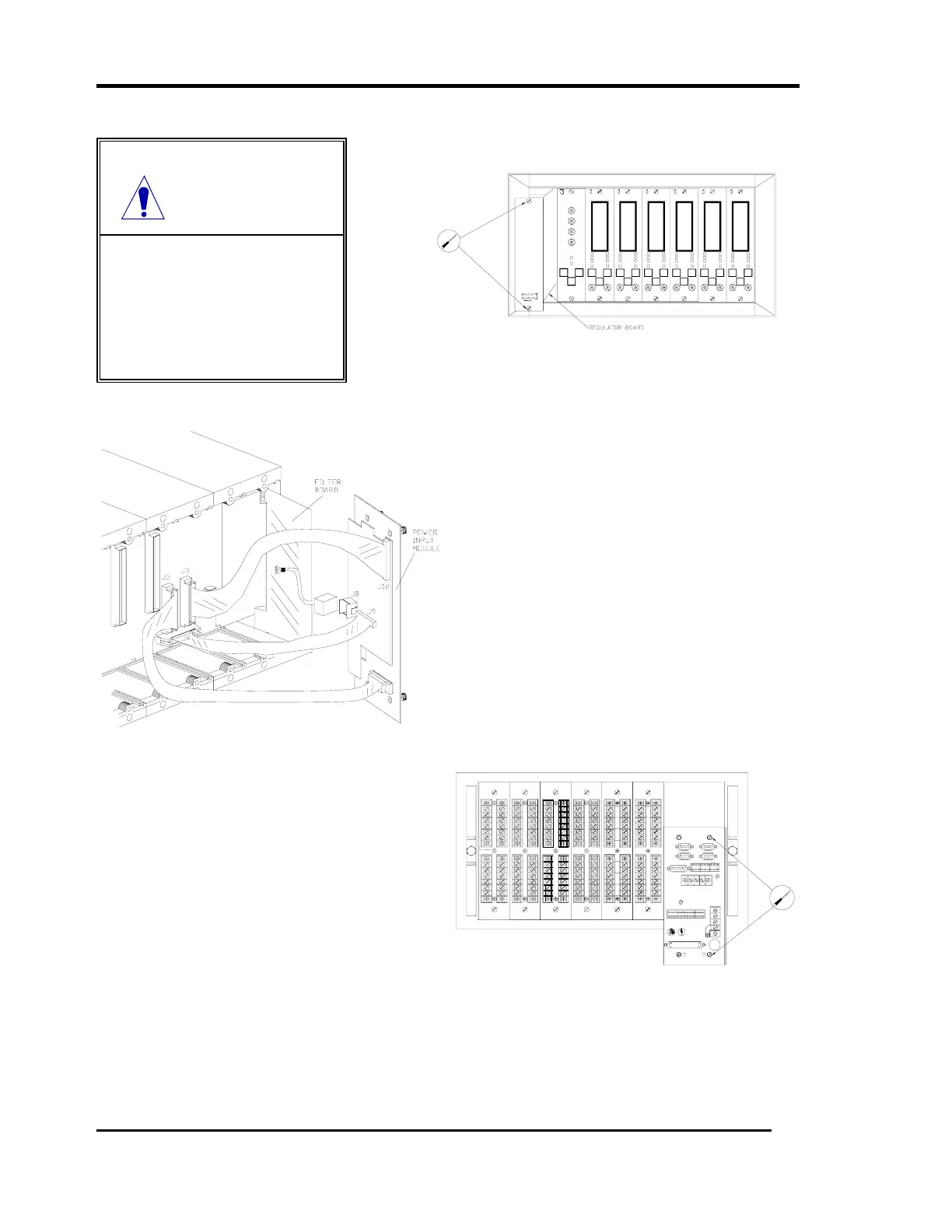

For systems with the DC Power Supply, perform the following steps.
1. Slide Power Supply into rack and fasten
two screws.
2. Insert filter board. Fasten screw that
secures the filter board to the rack side
panel. Connect cable from filter board to
Power Input Module as shown.
3. Connect cables from backplane to Power
Input Module as shown.
4. Place Power Input Module in position at
rear of rack. Fasten retaining screws.
WARNING
High voltage present
could cause shock,
burns, or death.
Do not touch exposed wires
or terminals.
