3300 System Installation Manual
16

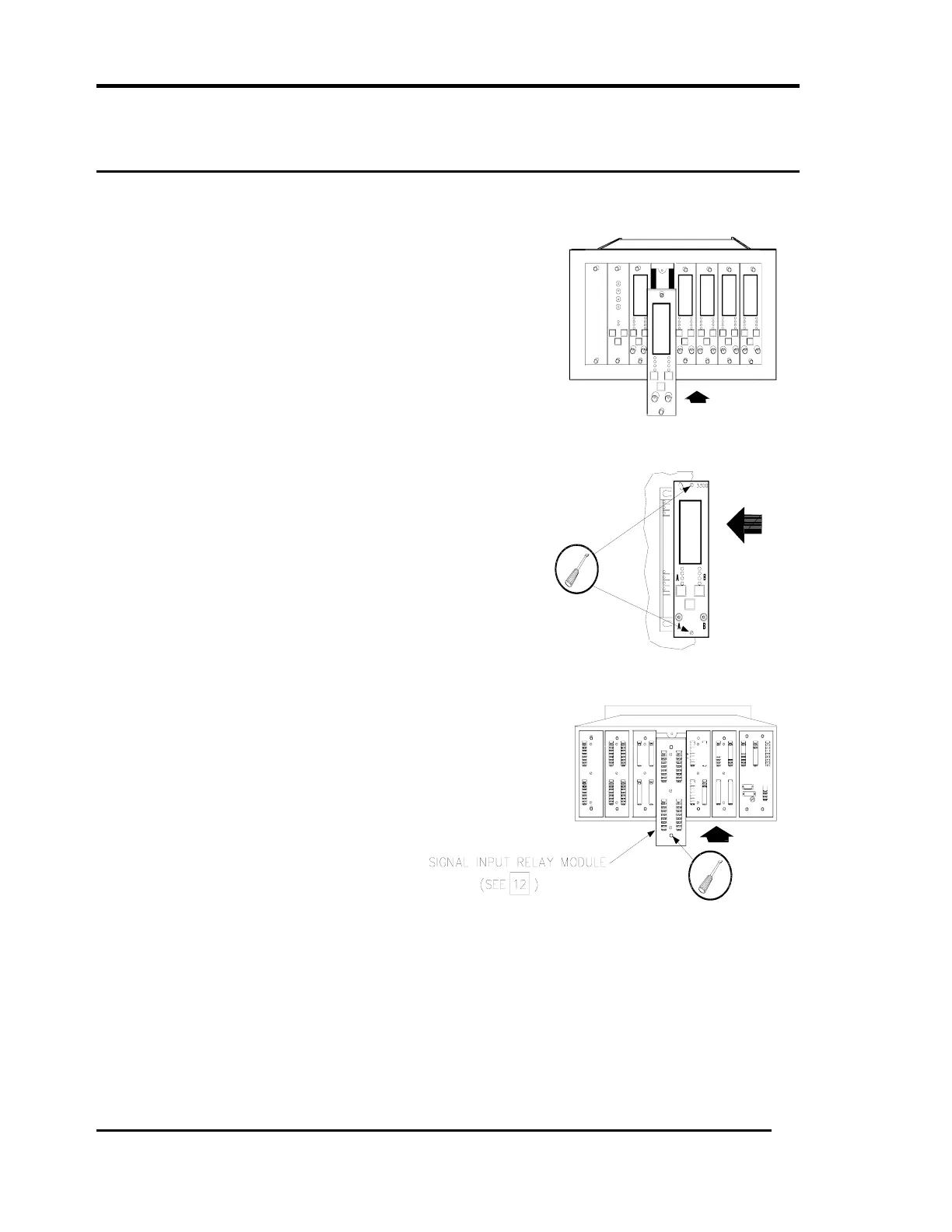

10. MONITOR INSTALLATION [TYPICAL]
1. Slide monitor front panel to the right
before inserting monitor. Slide
monitor circuit board into rack to
engage connector on backplane. If
the monitor is a dual width monitor
with two separate circuit boards, line
the lower edges of both boards up
with the slots in the rack and slide
the boards in simultaneously. Make
sure that the connectors on both
boards are fully seated in the
backplane. NOTE: For the 3300/30
and 3300/35 dual width six channel
temperature monitors, the left of the
two boards (when facing the rack)
must be in an odd numbered rack
position (numbered from left to right
starting at one) to communicate with
a TDIX or a TDXnet.
2. Slide front panel to the left and
fasten to rack.
3. Install Signal Input Relay Module in
rear of rack and fasten screws.
