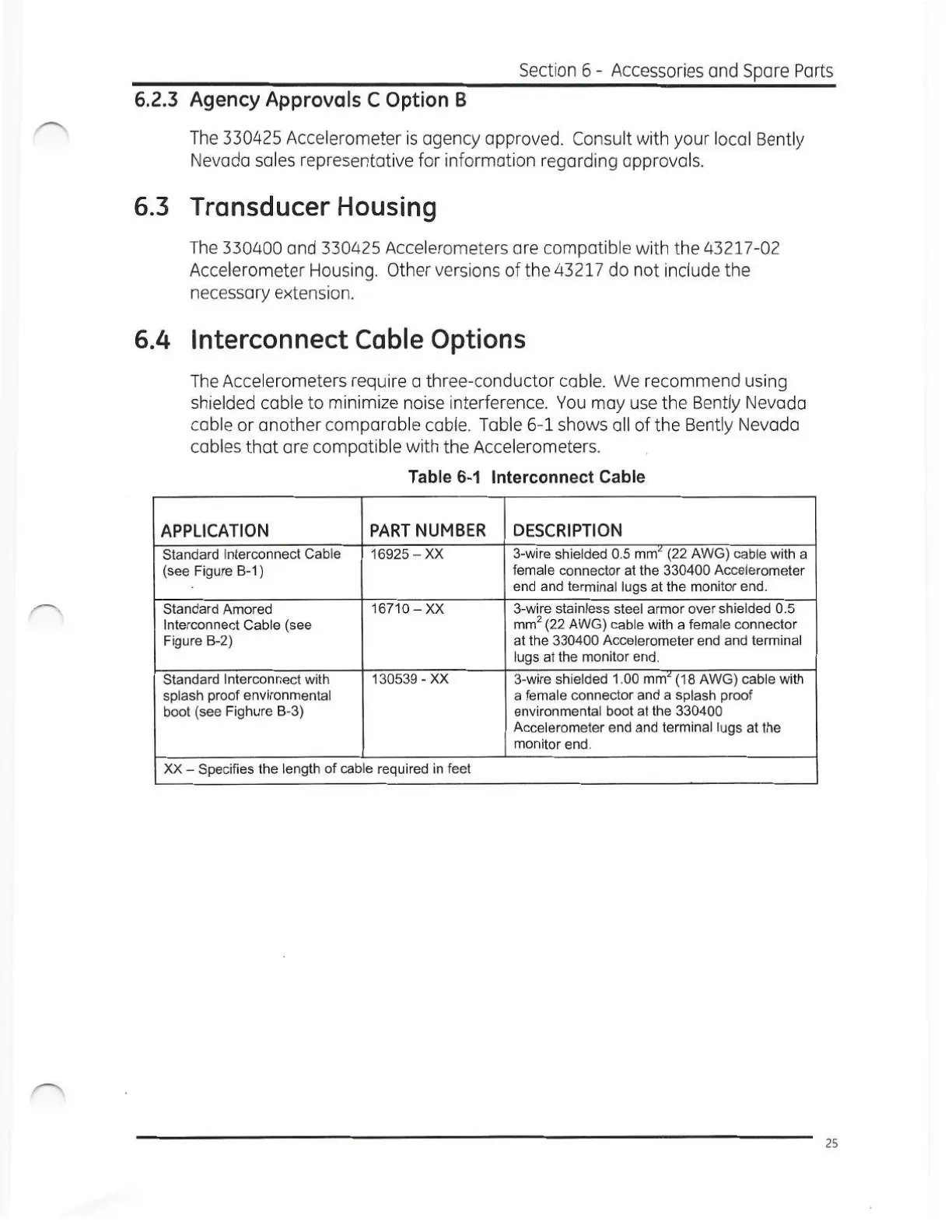

Section 6 - Accessories and Spare Parts
APPLICATION
PA RT NUMBER DESCRIPTION
Standard Interconnect Cable
(see Figure B-1)
16925 — XX
3-wire shielded 0.5 mm2 (22 AWG) cable with a
female connector at the 330400 Accelerometer
end and terminal lugs at the monitor end.
Standard Amored
Interconnect Cable (see
Figure B-2)
16710 — XX 3-wire stainless steel armor over shielded 0.5
mm2 (22 AWG) cable with a female connector
at the 330400 Accelerometer end and terminal
lugs at the monitor end.
Standard Interconnect with
splash proof environmental
boot (see Fighure B-3)
130539 - XX 3-wire shielded 1.00 mm2 (18 AWG) cable with
a female connector and a splash proof
environmental boot at the 330400
Accelerometer end and terminal lugs at the
monitor end.
XX — Specifies the length of cable required in feet
6.2.3 Agency Approvals C Option B
The 330425 Accelerometer is agency approved. Consult with your local Bently
Nevada sales representative for information regarding approvals.
6.3 Transducer Housing
The 330400 and 330425 Accelerometers are compatible with the 43217-02
Accelerometer Housing. Other versions of the 43217 do not include the
necessary extension.
6.4 Interconnect Cable Options
The Accelerometers require a three-conductor cable. We recommend using
shielded cable to minimize noise interference. You may use the Bently Nevada
cable or another comparable cable. Table 6-1 shows all of the Bently Nevada
cables that are compatible with the Accelerometers.
Table 6-1 Interconnect Cable
25
