Replacement
7-55
1. Remove the rear cover of Workstation. Release the three secure screws and open the package
box.
2. Cut off the binding tie. Disconnect the wires of the transformer, which are connected to PDU
board PJ12/PJ13.

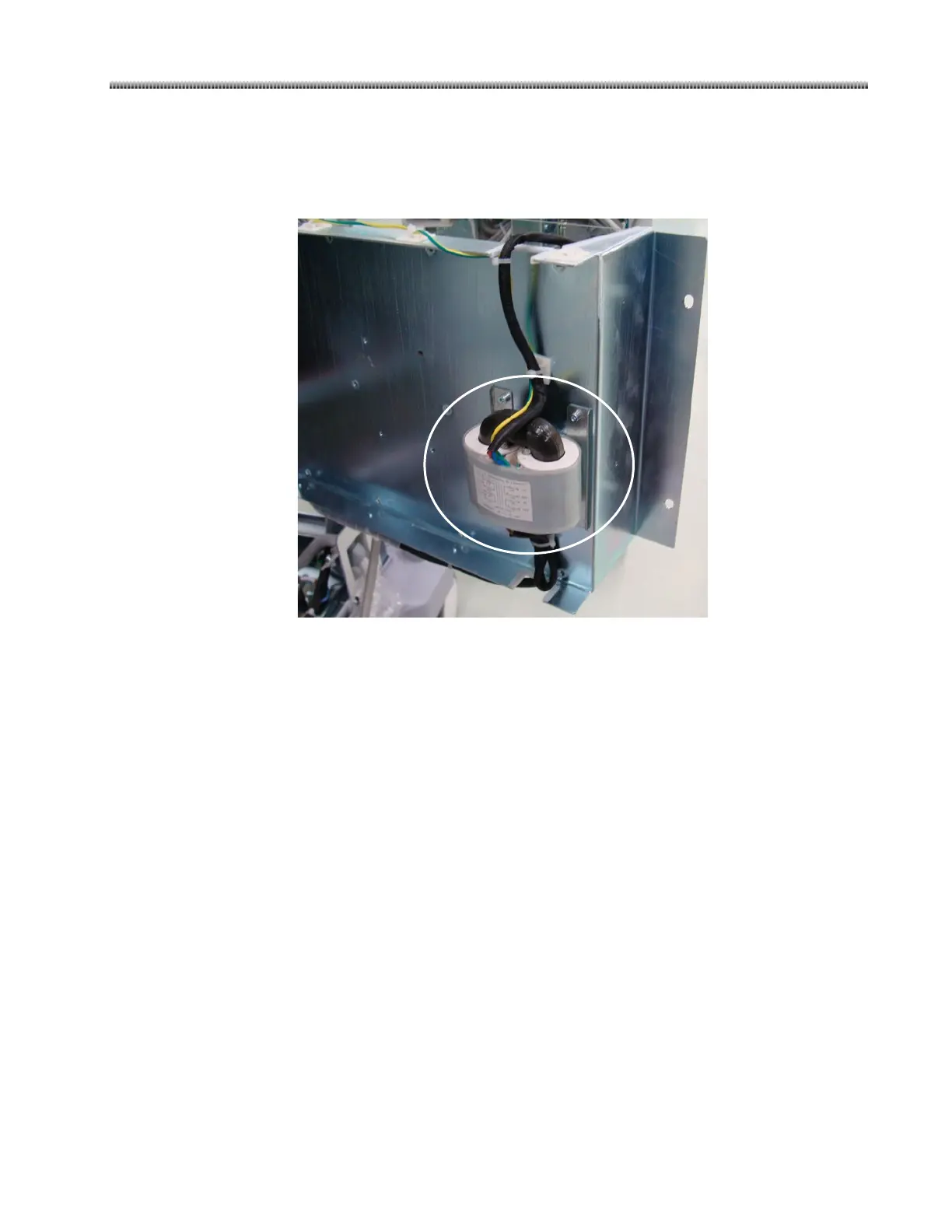

3. Loose the secure screws and remove the transformer.
4. Replace a new one. Connect the wires and make a good wire layout.
5. Power on the system. Verify that the Workstation and C-Arm complete software boot and
initialization with no errors reported on their displays.
DC Power Supply (5085800/ 5085801)
