1-10 C60 Breaker Protection System GE Multilin

1.3 ENERVISTA UR SETUP SOFTWARE 1 GETTING STARTED

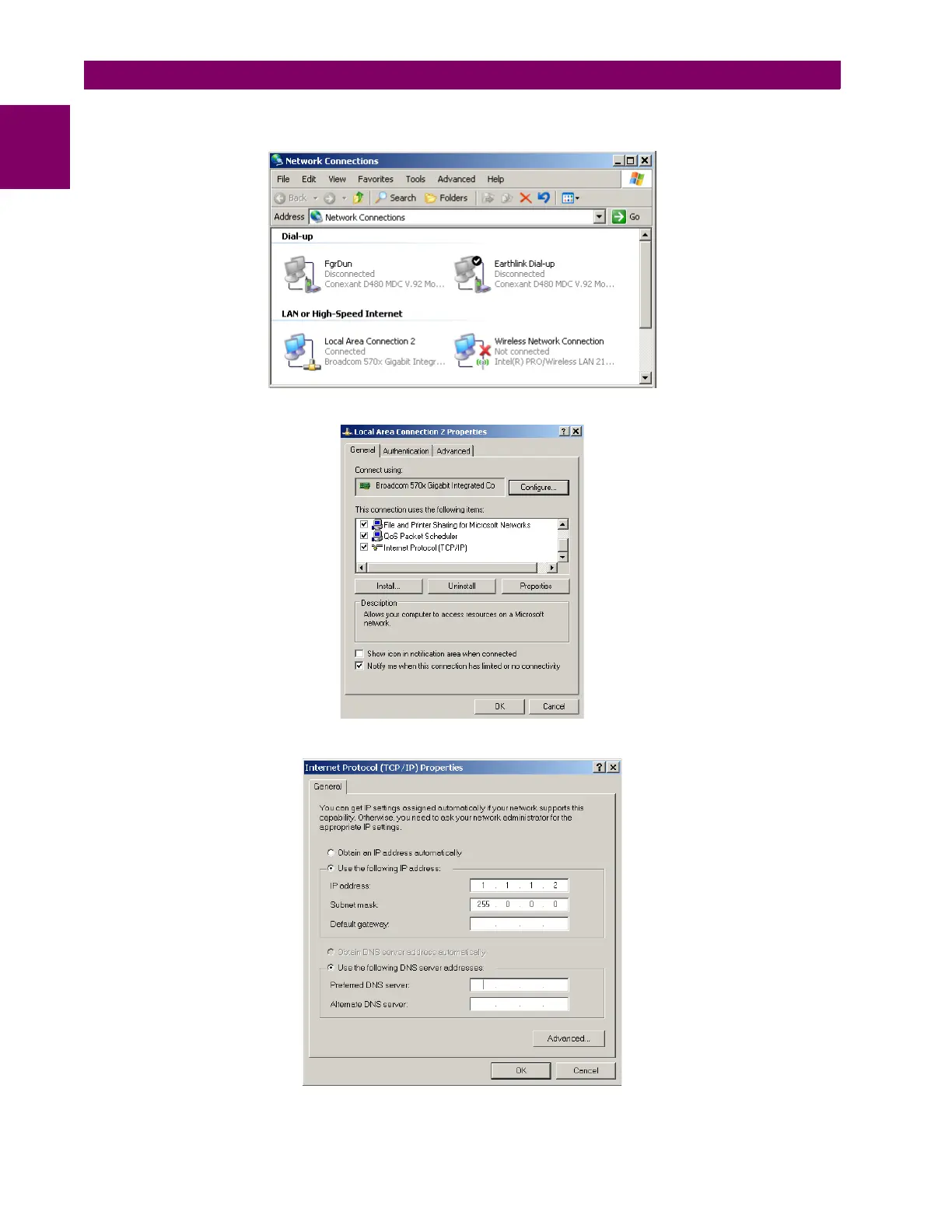

1. From the Windows desktop, right-click the My Network Places icon and select Properties to open the network con-

nections window.

2. Right-click the Local Area Connection icon and select Properties.

3. Select the Internet Protocol (TCP/IP) item from the list, and click the Properties button.

4. Click the “Use the following IP address” box.
