GE GTW460ASJWW - Page 12

12
11/16/2015

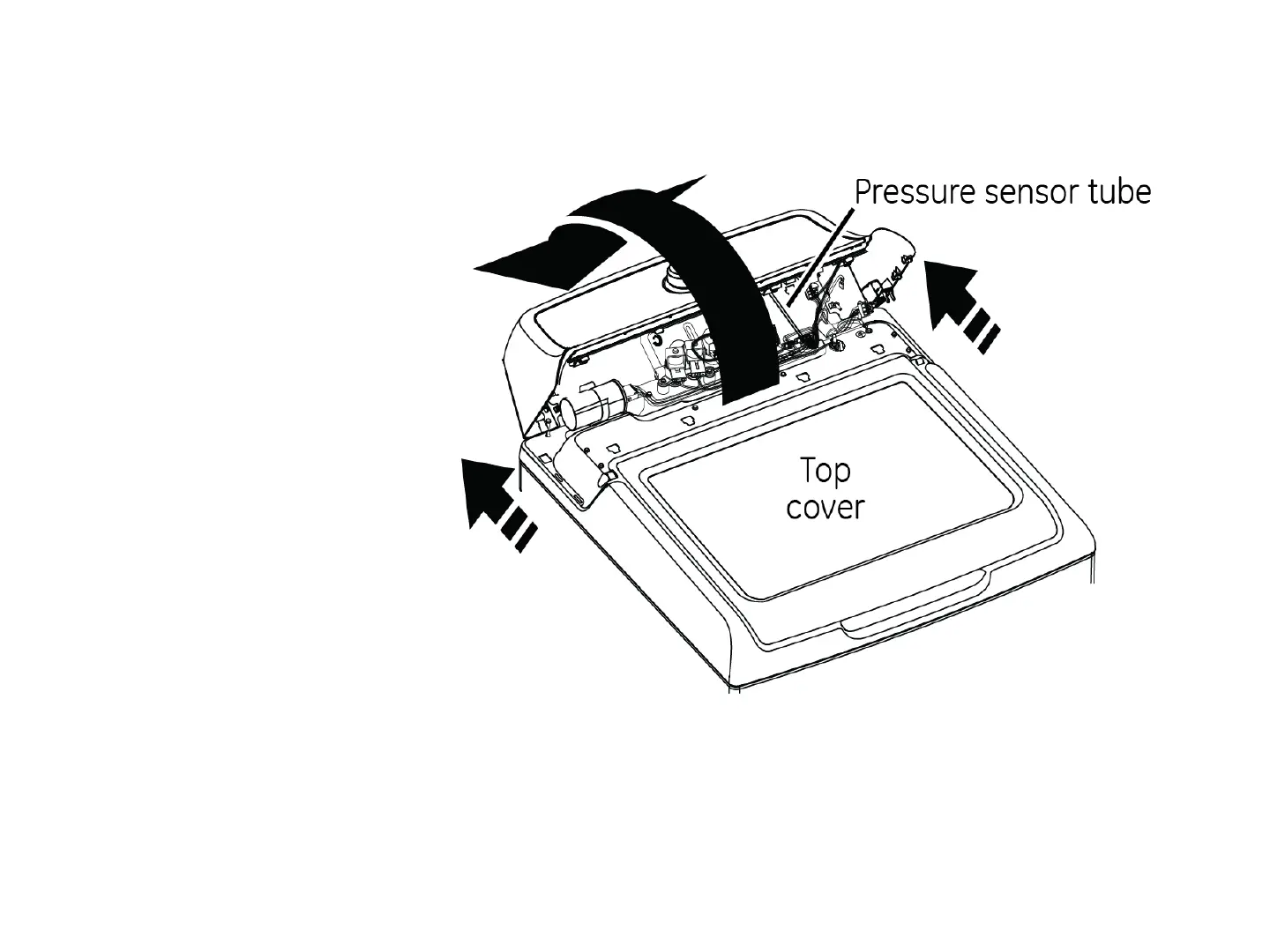

Control Panel Assembly Removal
Grasp the control panel
sides and push toward
the back of the washer
to disengage it from the
top cover.
Roll the control panel
toward the rear so the
pressure tube can be
seen and disconnected
from the control board.
IMPORTANT: To disengage the pressure tube from the control board, grasp the tube where it
connects to the pressure sensor on the board. Twist the tube while pulling it off the sensor.
